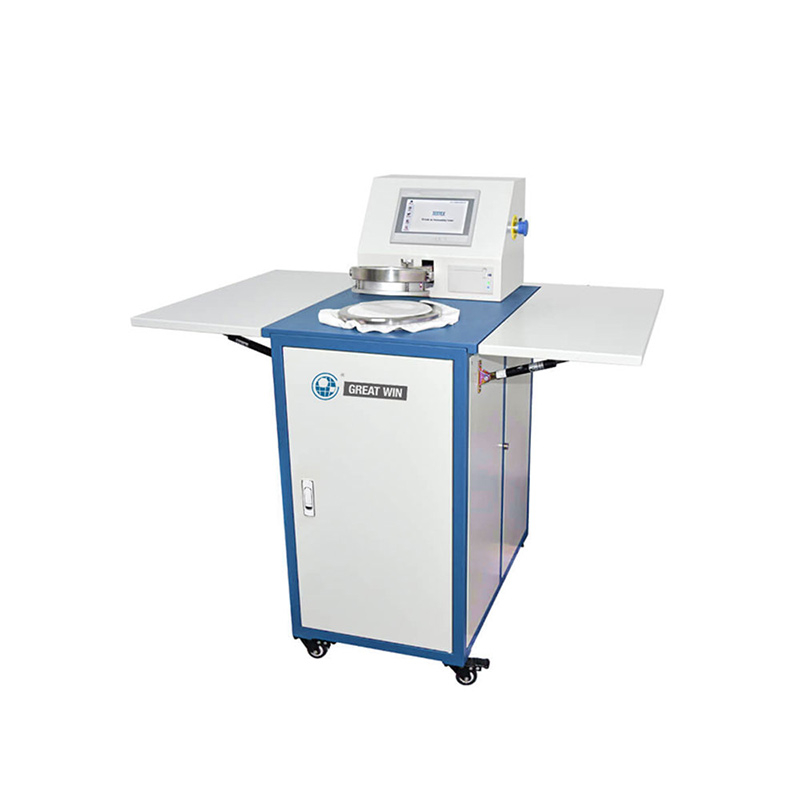

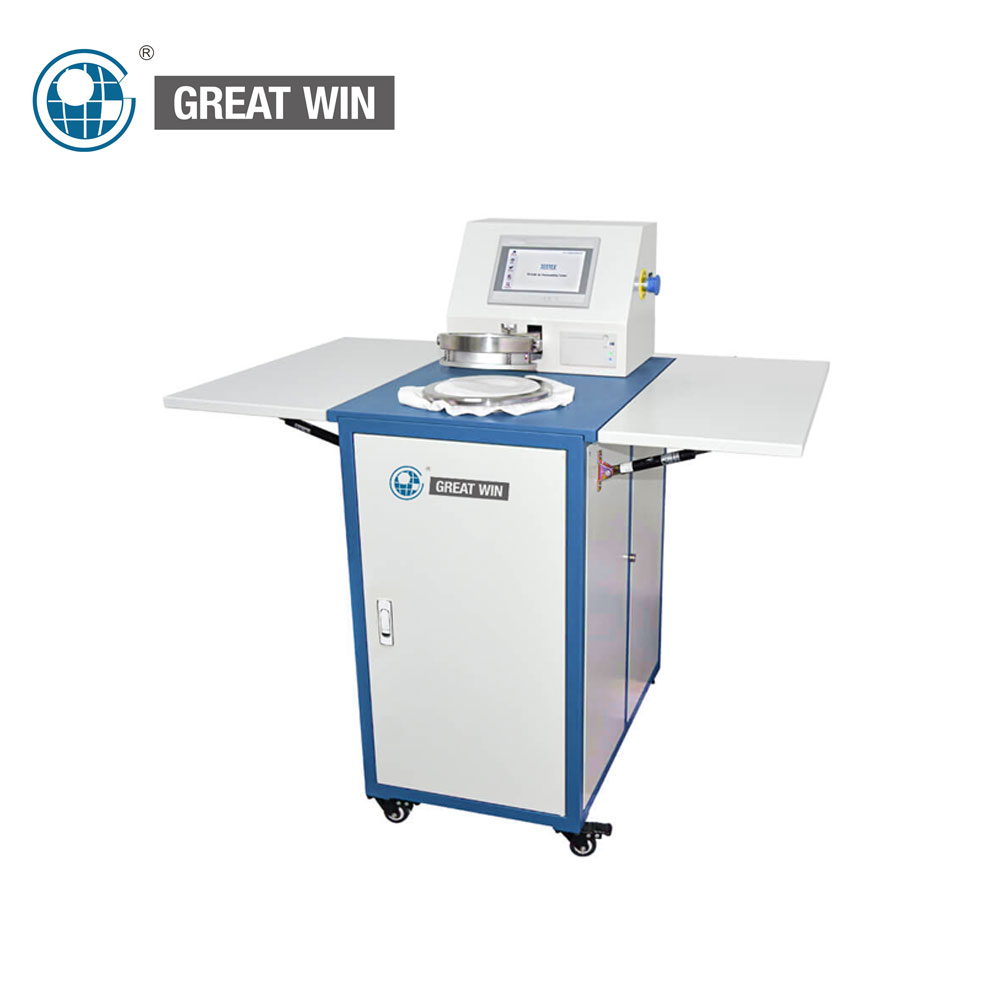

Factory Wholesale Air Permeability Tester

Air Permeability Tester, widely used to test the resistance of fabrics (woven, knitted and non-woven textile materials) to the passage of air (air flow), the test textile is firmly clamped by a specified rig of selected test head/area to resist the constant air pressure settled before the permeability test.

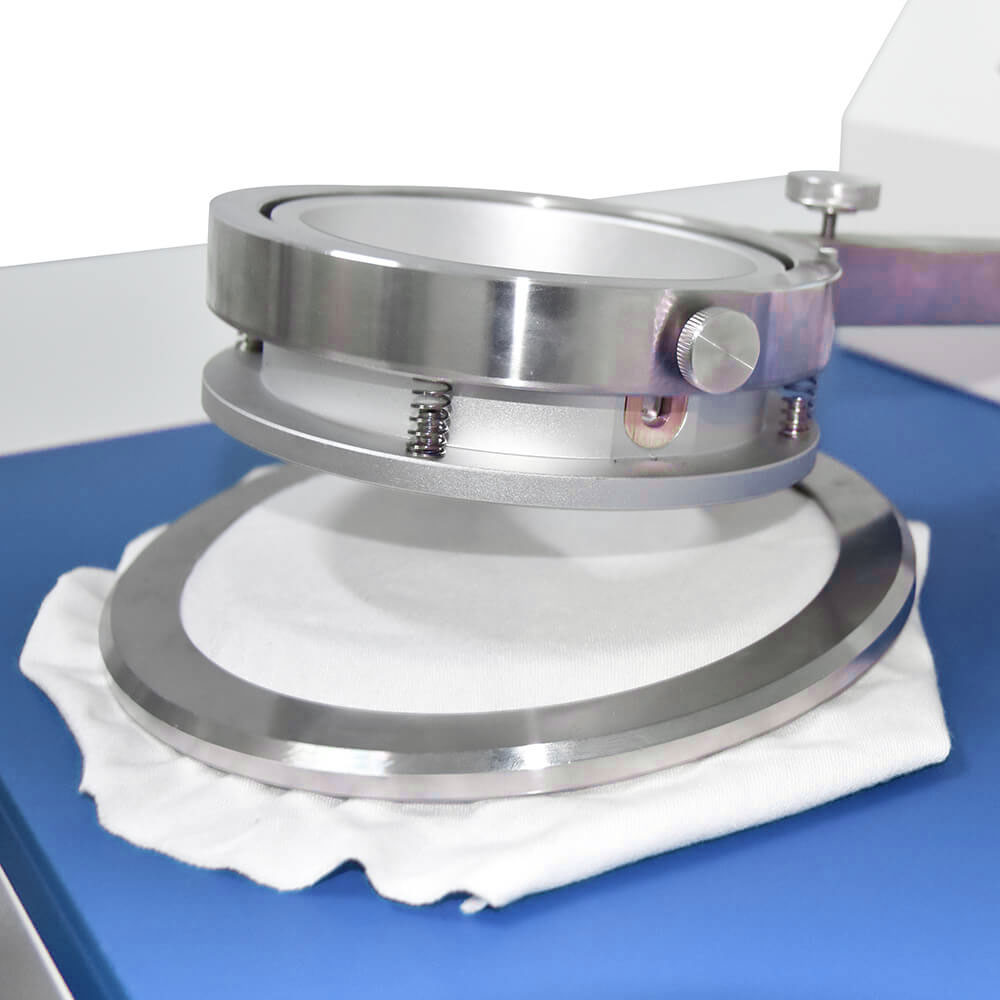

The specimen is loaded to the test area of the instrument easily by means of an automatic holder. By pressing down the holder to start the test. Air permeability tester equipped with a vacuum pump to draw air through an automatic interchangeable test head with a circular opening. The pre-selected test pressure is automatically maintained, and after a few seconds the air permeability of the test specimen is digitally displayed in the pre-selected unit of measure on the touch panel, or the next test nozzle required to be replaced will be displayed. After the test, the holder is released and the vacuum pump will be shut off.

Standard

ASTM D737 ISO 9237 ISO 7231 BS 5636

JIS L 1096A DIN 53887 EDANA 140.1 AFNOR G07-111

TAPPI T251 GB/T 5453 GB/T 13764

Specifications

· Can be controlled by the touch panel

· The result of air permeability test is displayed on the touch panel, units can be shifted

· Equipped with printing function

· Equipped with analyzing software.

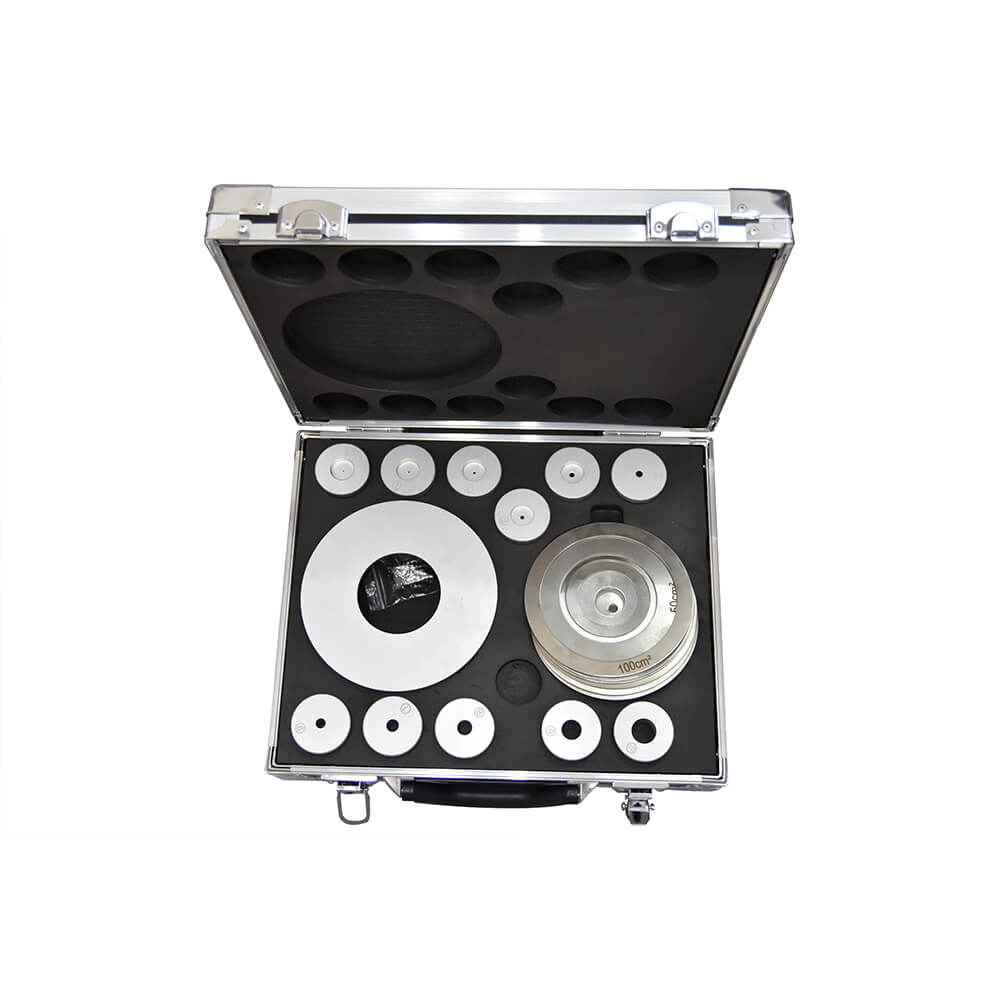

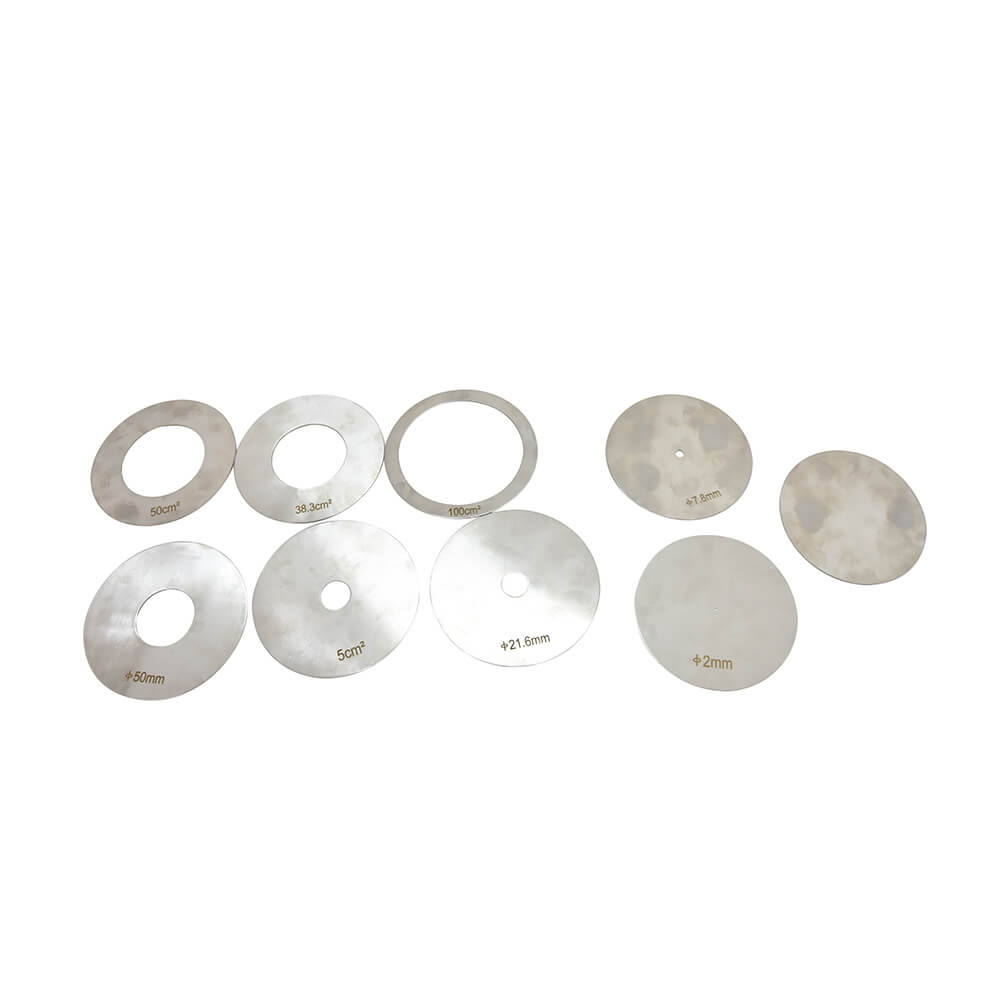

· 11 nozzles are included

· Standard Test Heads 20cm2 and 38cm2

· Measuring Range 1~12000mm/s (L/m2.s)

· Test pressure 1 ~ 4000Pa

· Max thickness of specimen ≤ 8mm

· Measuring accuracy <+/-2%

Features

1: The test time can be changed arbitrarily during the test

2: The test stops and automatically opens the mold

3: All graphics can be set in different units (Ib-in kg-cm N-m dN-m)

4: The software supports traditional Chinese, simplified Chinese, and English

5: Easy to operate, users can automatically test and archive automatically without touching the computer

6: Each control interface including curve, coordinates, background color can be set freely

7: The existing vulcanization curve can be compared with the previous vulcanization curve at the same time or separately, and each curve can be set with different colors for comparison

8: The test data has a variety of query functions, which can be searched by time, date, rubber name, shift, operator, test temperature, and other test conditions

9: The test data is stored in a database, with multiple data export methods, export to, PDF, EXCEL and other document functions

10: With the upper and lower limit qualified value on the setting report, the software automatically judges whether it is qualified

11: Can print all kinds of graphics on a report at the same time

12: Software and hardware automatic detection function, convenient for maintenance and repair

13: The number of data sampling is high, and no important data will be missed

14: High-precision temperature control system to ensure stability and temperature recovery speed

15: Adopt a fixed eccentric wheel structure to provide an extremely stable shear angle to ensure test accuracy

16: The high-precision torque sensor is installed close to the upper mold, and the upper mold cavity measures the torque, and the torque value is accurate and stable
