Factory price Lab Pad Steam Range

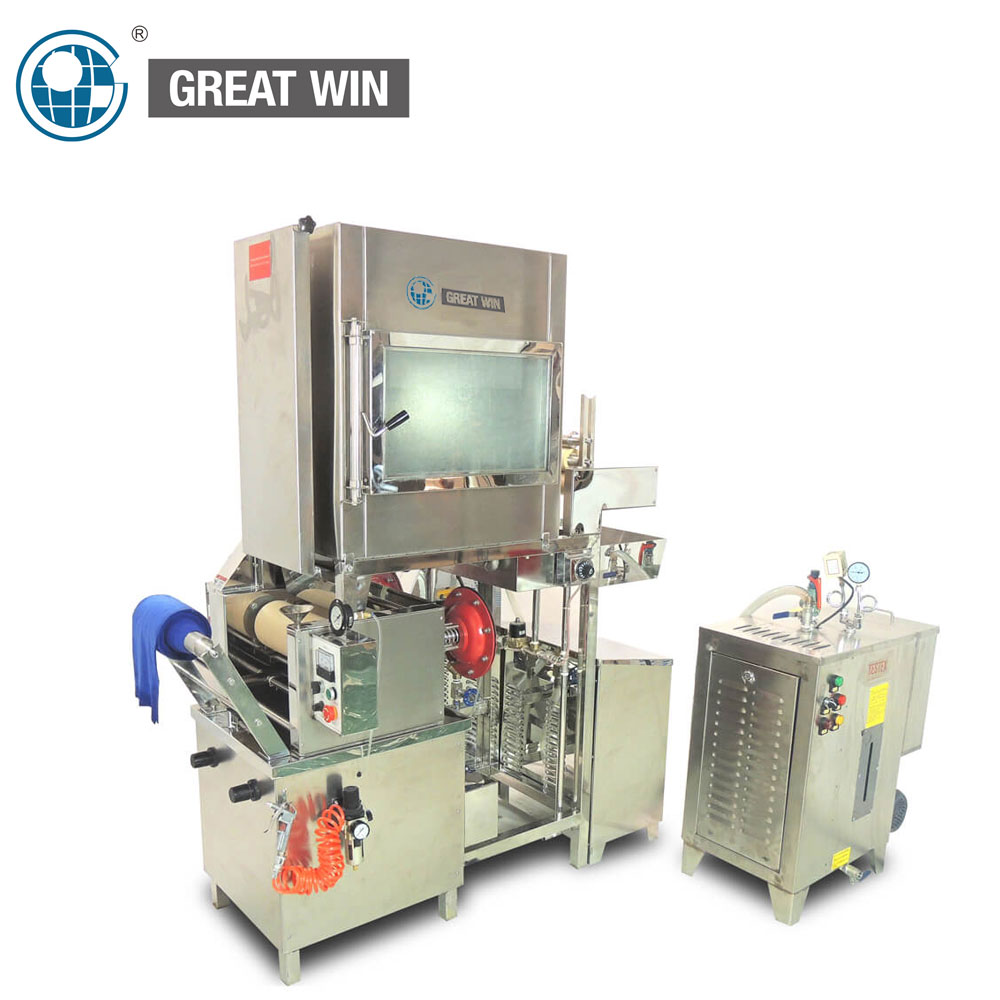

Lab Pad Steam Range, a combination of padding maggle and steamer, is used to carry out all pad steam processes with saturated steam, offers the shortest time 4 seconds between padder and steaming chamber, to avoid the disturbances and performs very good stability & repeatability on sulphur & vat dyestuff

Pad steam range is consists of padding mangle with two padding rollers, and a steaming chamber with fabric holding capacity of 6m, temperature range 98 ~ 100℃ for a dwell time 20 ~ 120 seconds.

Specifications

Horizontal padder

· Roller size 125mm x 300mm

· Made of NBR rubber with 65° +/- 3 shore hardness

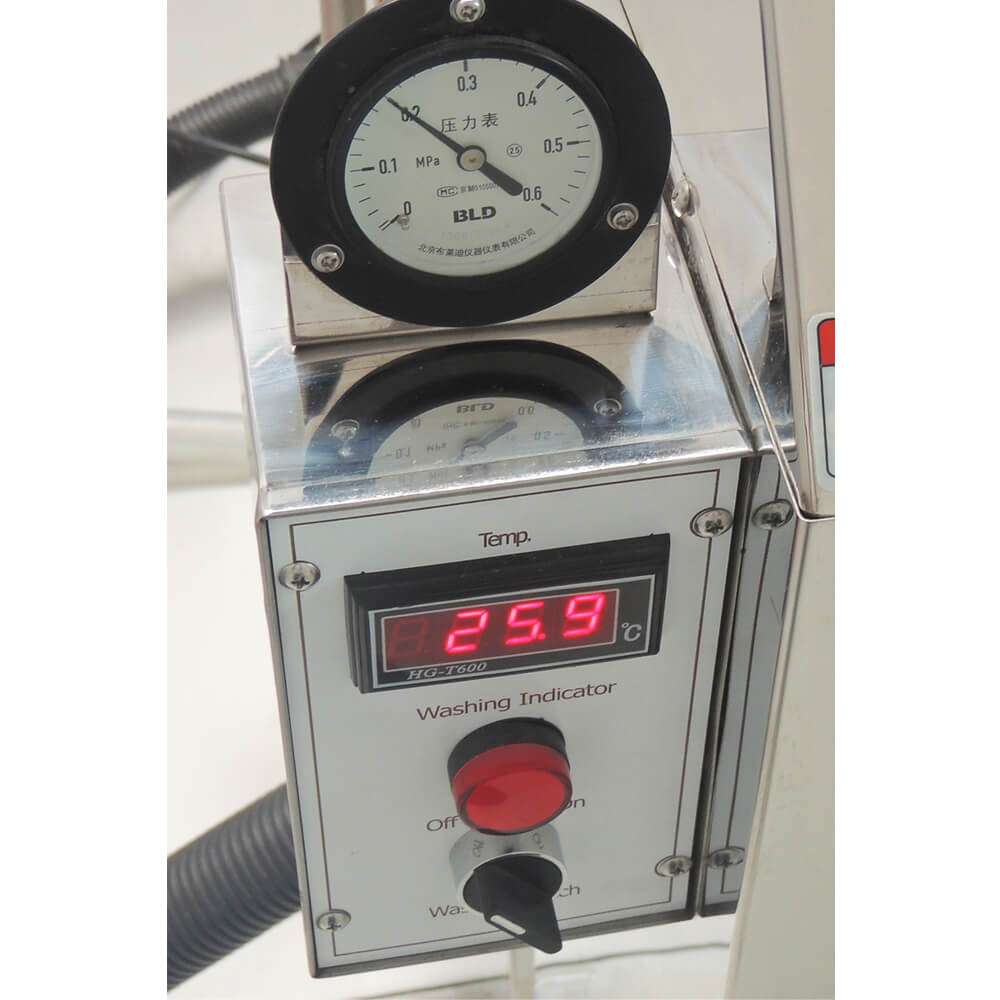

· Pressure  1 ~ 0.5mPa, 2 pressure gauges

· Chemical trough capacity 500ml

Steamer

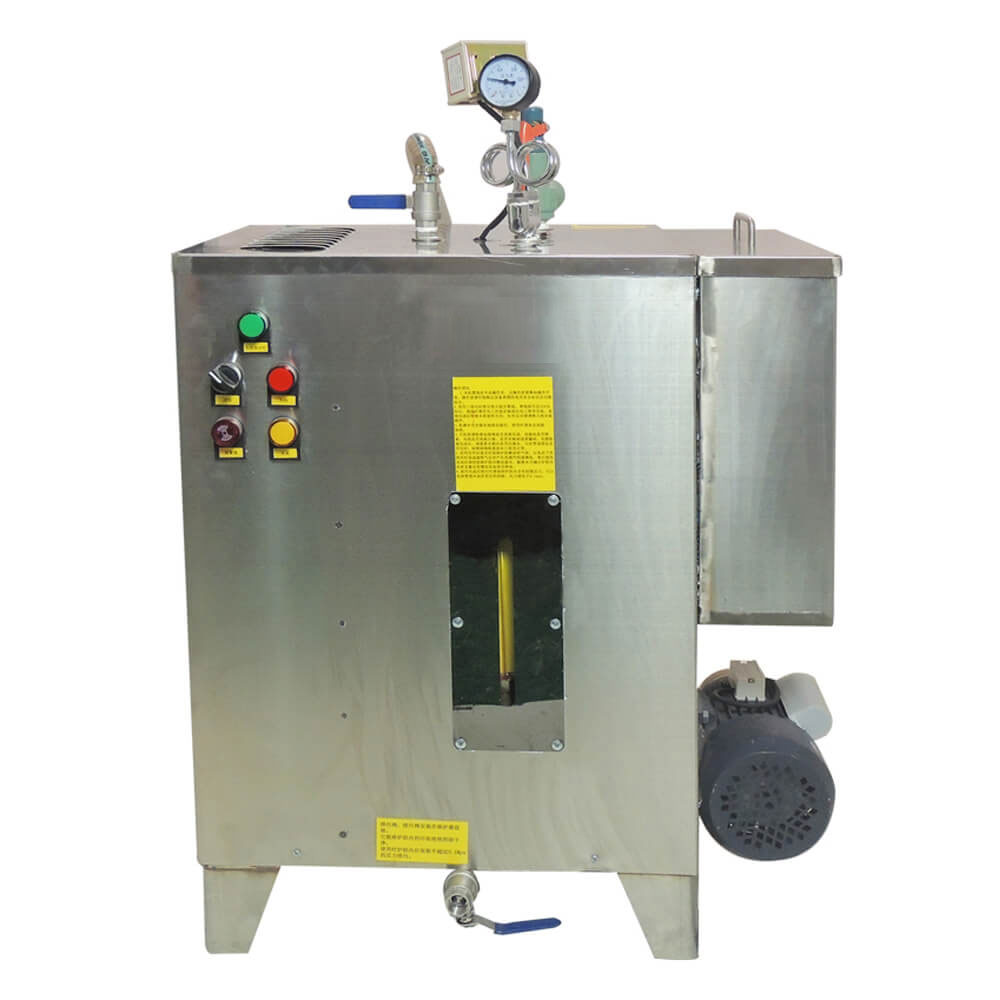

· Steam Max 0.5mPa

· Steaming Max 6 m, speed control 20~ 120 s adjustable inside the steaming chamber

· All guide rollers inside the chamber are Teflon-coated

· Water sealing bath at the outlet for automatic cooling control

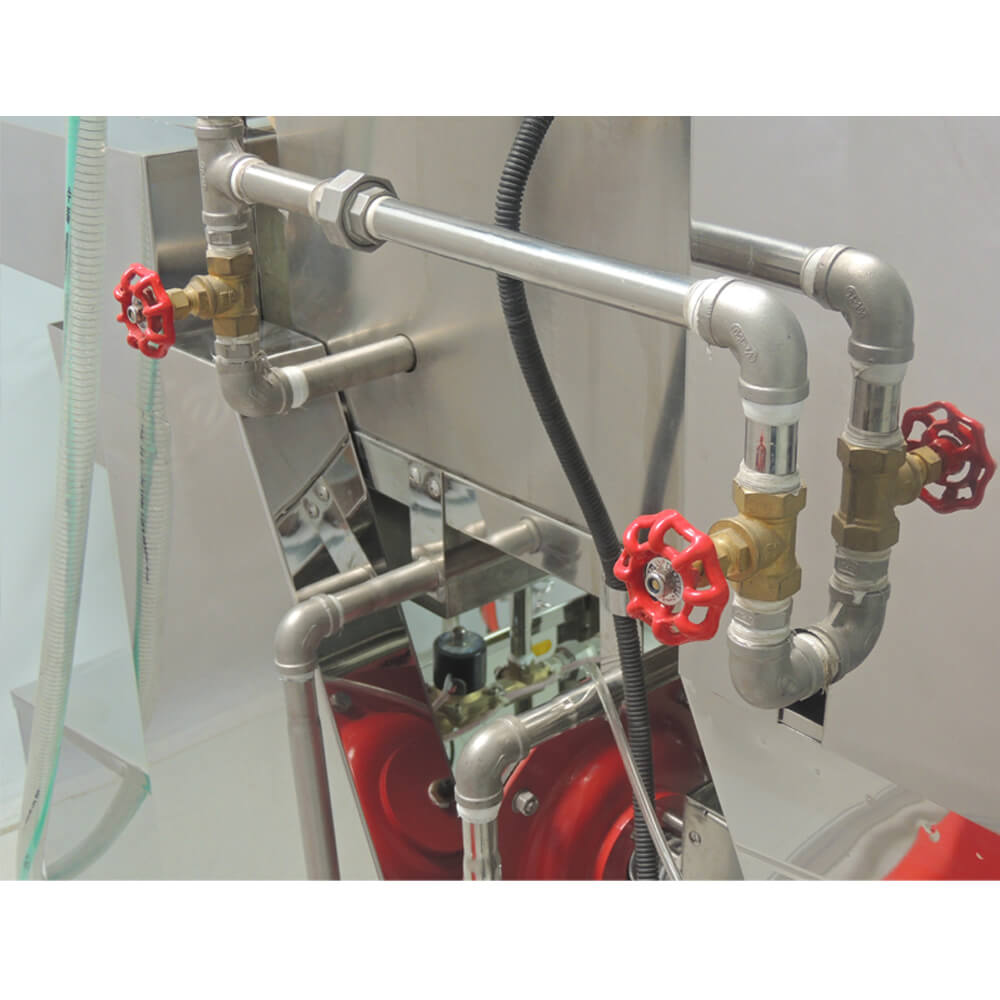

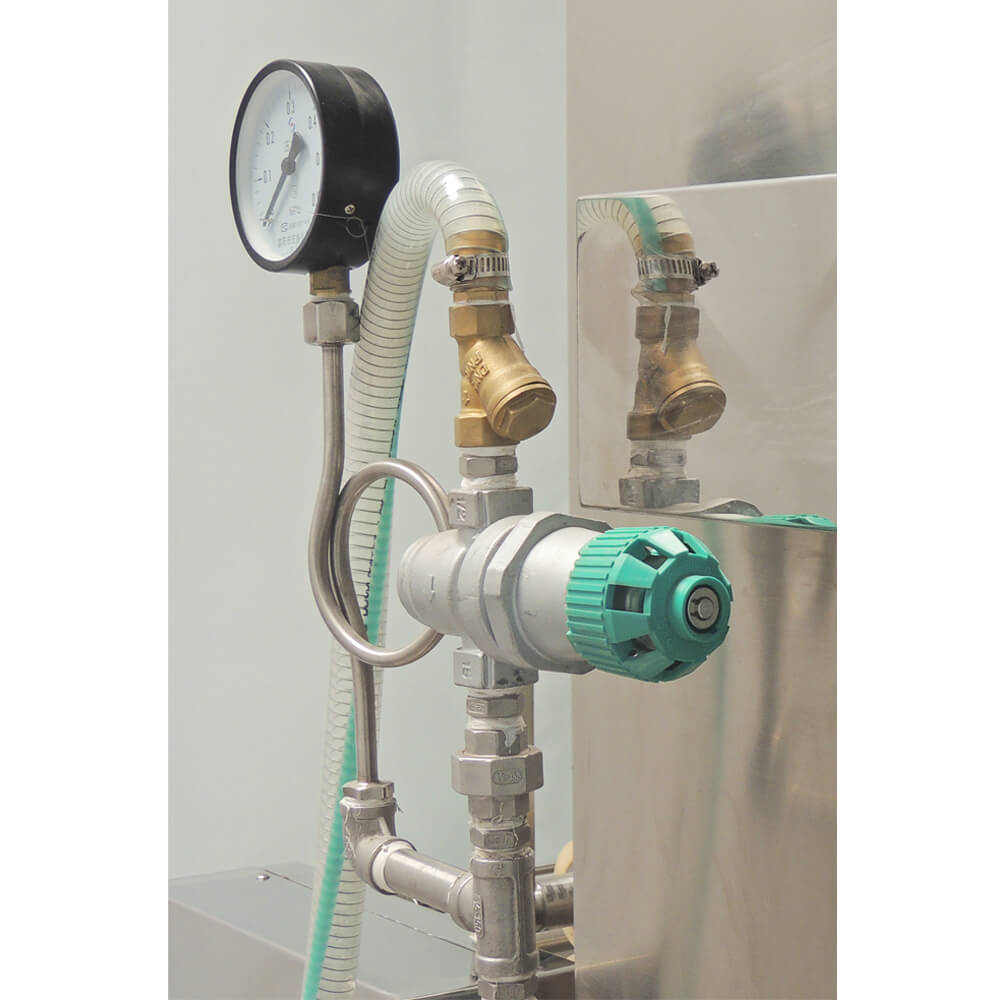

· Both steam inlet pipe and water inlet pipe size 1/2 inch is supplied by the user

Features

· Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.

· Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.

· Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.

· The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.
