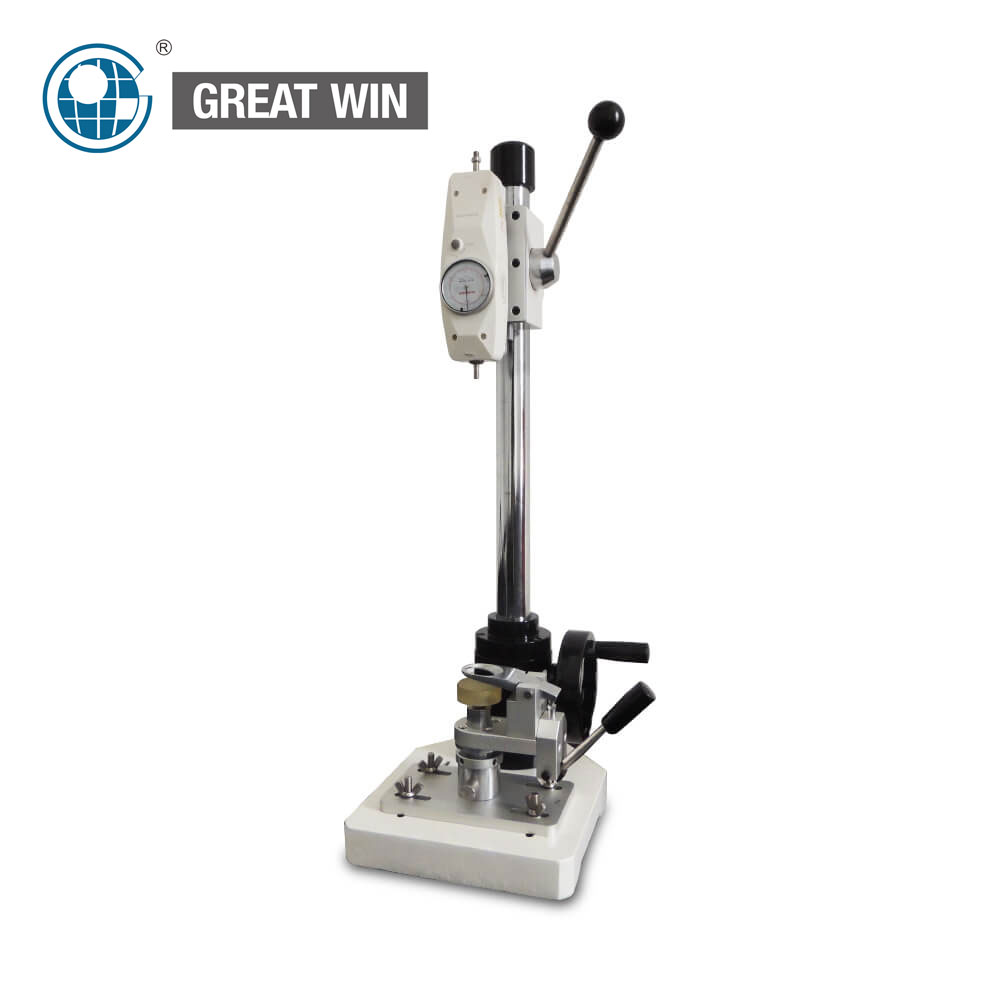

High quality Button snap pull tester

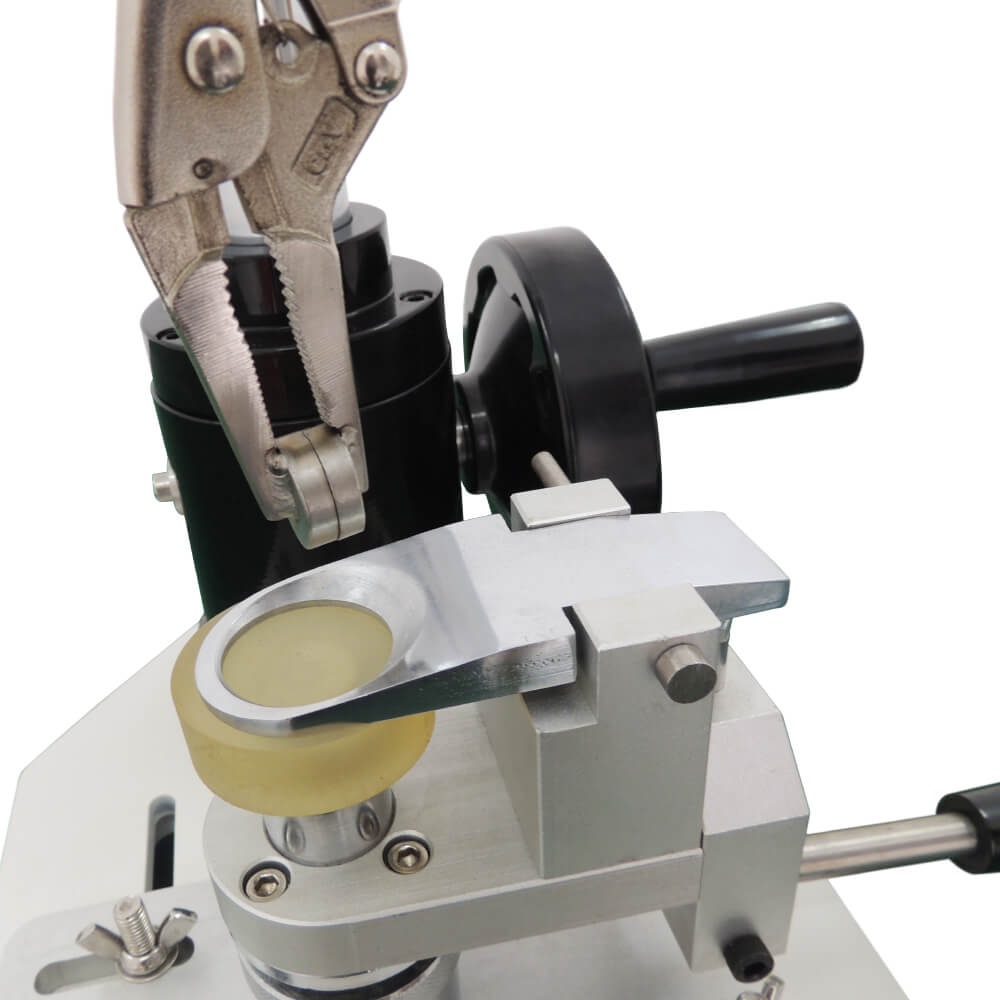

Snap Tester (button pull test machine), to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester for compression and tensile testing of small samples(special attachments are available).

Standard

ASTM F963 EN 71-1 16 CFR 1500.51-53 M&S P115A

Specifications

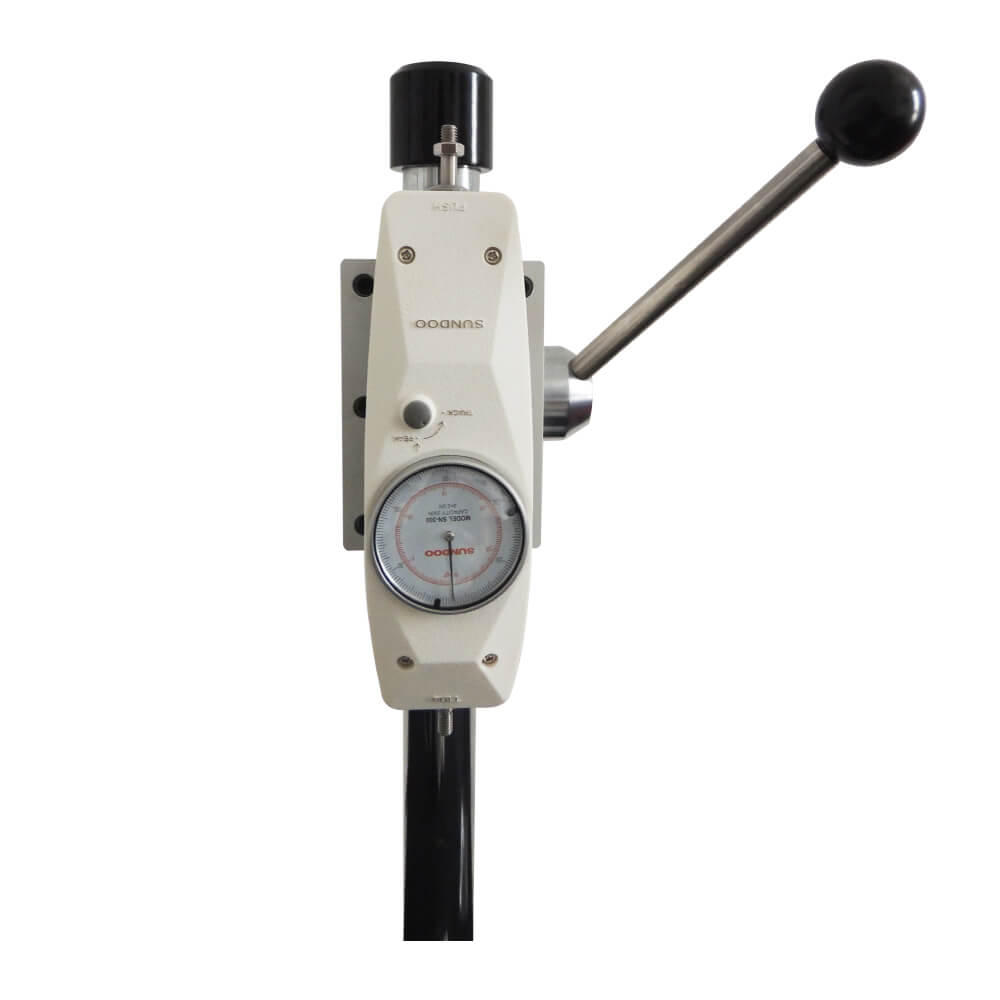

Imada Force Gauge (300N, resolution 2N, accuracy +/-1%FS)

Features

1: The test time can be changed arbitrarily during the test

2: The test stops and automatically opens the mold

3: All graphics can be set in different units (Ib-in kg-cm N-m dN-m)

4: The software supports traditional Chinese, simplified Chinese, and English

5: Easy to operate, users can automatically test and archive automatically without touching the computer

6: Each control interface including curve, coordinates, background color can be set freely

7: The existing vulcanization curve can be compared with the previous vulcanization curve at the same time or separately, and each curve can be set with different colors for comparison

8: The test data has a variety of query functions, which can be searched by time, date, rubber name, shift, operator, test temperature, and other test conditions

9: The test data is stored in a database, with multiple data export methods, export to, PDF, EXCEL and other document functions

10: With the upper and lower limit qualified value on the setting report, the software automatically judges whether it is qualified

11: Can print all kinds of graphics on a report at the same time

12: Software and hardware automatic detection function, convenient for maintenance and repair

13: The number of data sampling is high, and no important data will be missed

14: High-precision temperature control system to ensure stability and temperature recovery speed

15: Adopt a fixed eccentric wheel structure to provide an extremely stable shear angle to ensure test accuracy

16: The high-precision torque sensor is installed close to the upper mold, and the upper mold cavity measures the torque, and the torque value is accurate and stable

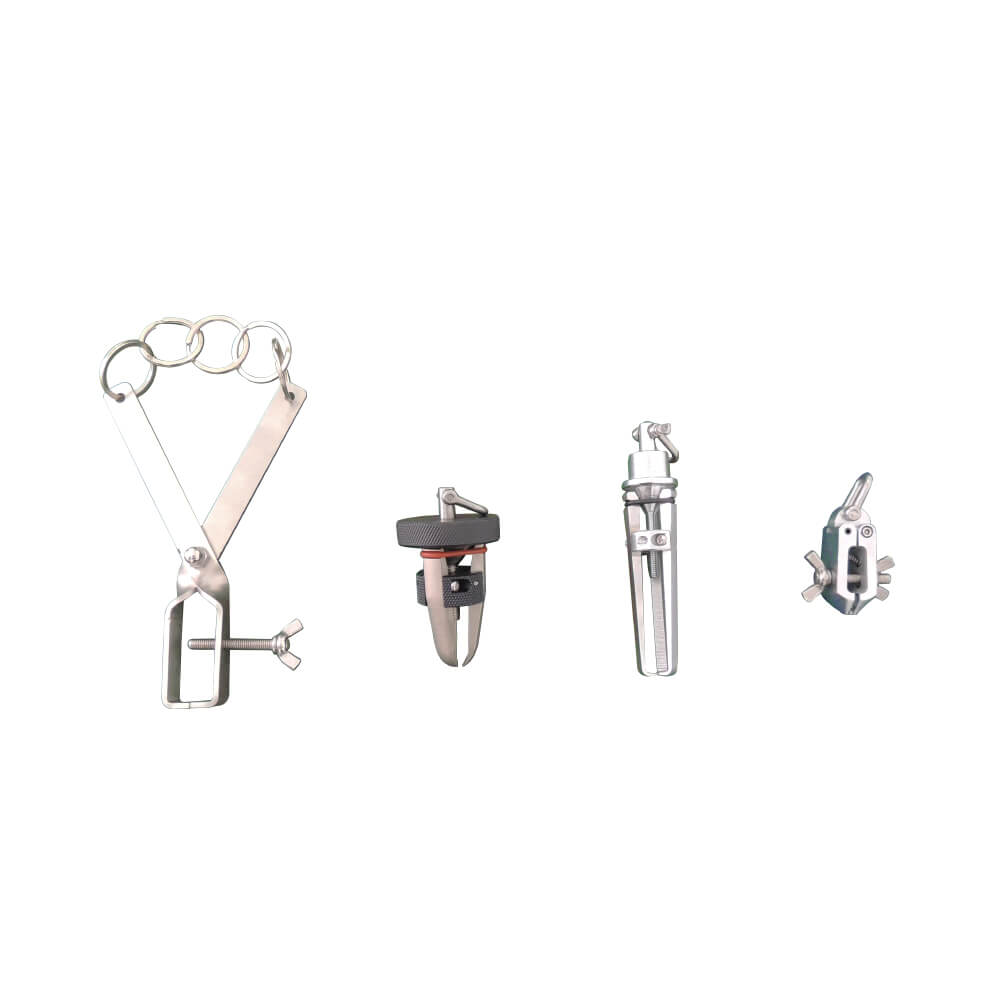

Included Accessories

· 1 Lower Fabric Clamp, Lever Armlocking

· 1 Upper Stud Clamp

· 1 Upper Snap Clamp

· 1 Three Pronged Clamp

· 1 Two Pronged Clamp with screw

· 1 Lower Grasp Button Kit

· 1 Long Nose Vice Grip

· 1 Safety Goggles

· 5 Rubber Rings

· 1 Operation Manual
