Exporting protective footwear to the European Union involves navigating a rigid regulatory landscape governed by the Personal Protective Equipment (PPE) Regulation (EU) 2016/425. To carry a valid CE mark and clear customs without demurrage or consignment rejection, manufacturers must demonstrate full mechanical compliance under EN ISO 20345:2022, supported by test methodologies defined in EN ISO 20344.
In pre-shipment inspections and accredited laboratory audits, minor oversights in compound vulcanization, sole bonding, or midsole puncture barriers frequently result in failed reports. Establishing an empirical testing routine directly in the factory laboratory prevents high-value shipments from stalling at European ports of entry.
Core Mechanical Protocols Under EN ISO 20344 / EN ISO 20345
The standard evaluates work footwear not as individual decorative parts, but as a consolidated safety system subjected to repeated physical strain, environmental exposure, and sudden impact forces.
+------------------------------------------------------------------------------------------+
| EN ISO 20345 / 20344 MECHANICAL COMPLIANCE MATRIX |
+------------------------------------------------------------------------------------------+
| [Test Module] [Critical Requirement] [Governing Clause] |
| Dynamic Sole Flexing ---> 30,000 to 150,000 cycles ---> EN ISO 20344 Clause 8.4 |
| Perforation Resistance (P) ---> >= 1,100 N threshold ---> EN ISO 20344 Clause 5.8 |
| Upper/Sole Bond Adhesion ---> >= 4.0 N/mm bond strength ---> EN ISO 20344 Clause 5.2 |
| Outsole Abrasion Resistance ---> Relative volume loss mm3 ---> EN ISO 20344 Clause 8.3 |
+------------------------------------------------------------------------------------------+
1. Dynamic Sole and Whole-Shoe Flexing Fatigue
Work boots experience complex torsional and angular stresses along the metatarsal hinge during walking cycles. EN ISO 20344 outlines strict cut-growth and whole-shoe bending evaluations:
Cut-Growth Thresholds (Bennewart Method): Test specimens subjected to 30,000 flex cycles at room temperature or 150,000 cycles in cold flex conditions must not exhibit cut growth exceeding 4.0 mm.

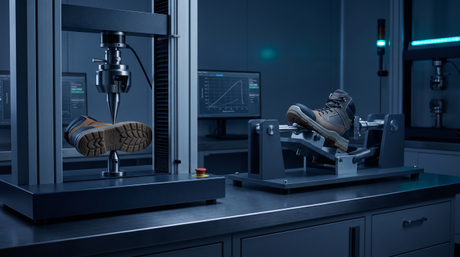

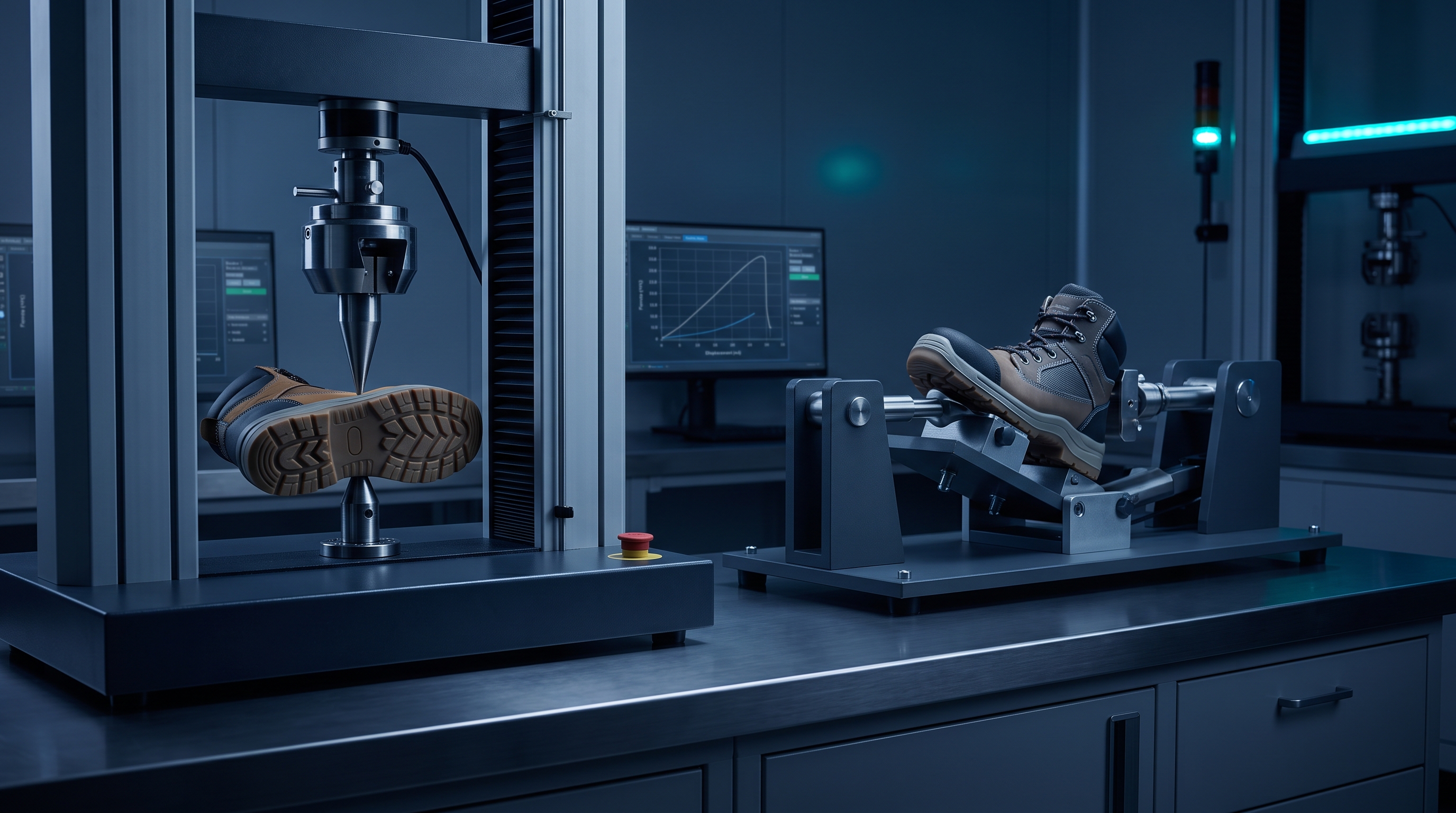

Whole-Shoe Hinge Evaluation: The finished boot must flex repeatedly without delamination along the feather line, cracking across the midsole foam, or detachment of internal composite protective caps.
2. Perforation Resistance: Steel vs. Non-Metallic Textiles
One of the most consequential changes in recent European standards is the distinction between metallic puncture-resistant inserts and non-metallic textile composite plates:
Standard Spike Testing: Steel plates undergo penetration checks using a 4.5 mm diameter hardened test nail, requiring a minimum penetration threshold of 1,100 N.
Type PL and PS Textile Testing: Synthetic anti-perforation fabrics must be tested using both the standard 4.5 mm nail (Type PL) and the conical 3.0 mm conical pin (Type PS). The smaller diameter tip simulates thin industrial nails, applying localized shear stress that can puncture through lower-density woven weaves if raw fabric tensions vary.
3. Interlayer Adhesion and Sole Abrasion
Bond failures between polyurethane (PU) midsoles and nitrile rubber (NBR) outsoles are immediate failure criteria under CE audit inspections. EN ISO 20344 mandates:
A peel strength not lower than 4.0 N/mm across the bond margin (or 3.0 N/mm if material tearing occurs before bond separation).
Outsole rotary drum abrasion loss controlled under strict volumetric limits (typically ≤ 150 mm³ for standard compounds; ≤ 250 mm³ for lower-density materials).
Key Technical Parameters for In-House Testing Equipment
Factory labs preparing production batches for European distribution rely on calibrated machines with closed-loop controls:
100 ± 20 mm/min crosshead speed, synchronized peak/average force logging
Mitigating Sourcing Liabilities Through Production-Floor QA
Relying entirely on quarterly reports from external inspection agencies exposes export schedules to blind spots:
Batch-to-Batch Compound Shifts: Polyurethane polyol/isocyanate ratios fluctuate with humidity and temperature during direct-injection molding. Unchecked shifts reduce flex crack resistance long before visual flaws appear.
Textile Layer Shifting: When lasting technicians assemble non-metallic puncture boards, improper lasting margins can pinch the fabric edge, dropping localized penetration resistance below the required 1,100 N mark.
Adhesive Curing Inconsistencies: Primer flash times and halogenation steps vary during seasonal shifts, requiring daily bond peel checks to verify adhesion strength.
Implementing factory-level physical test machines ensures that every lot dispatched meets EU technical criteria before documentation reaches customs brokers.
