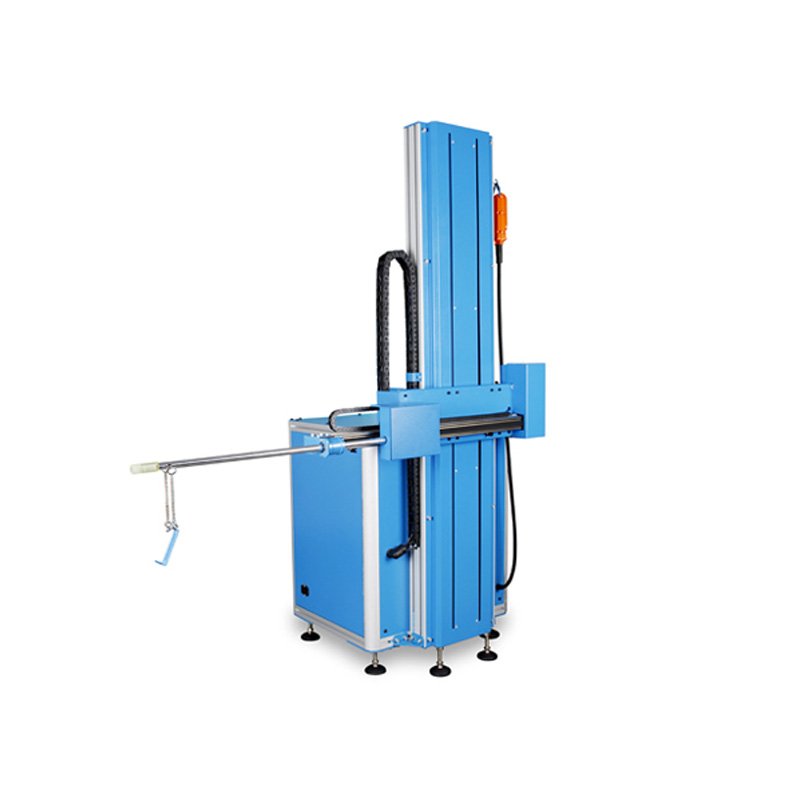

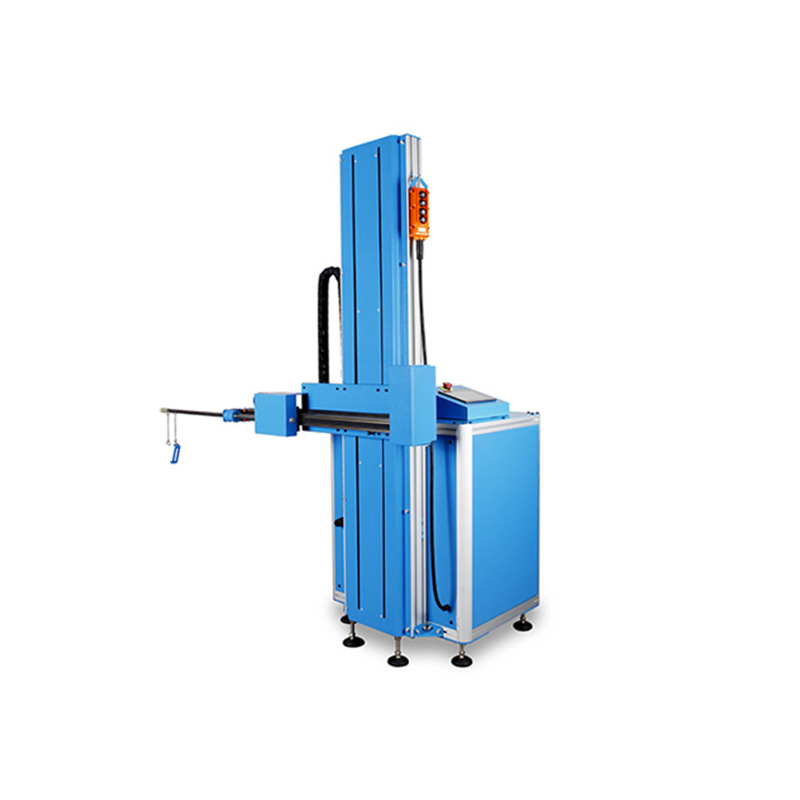

1. This product is designed specifically for the European standard leisure recliner backrest and office chair seat front corner alternating endurance test.
2. The loading cylinder can be adjusted up and down (motorized), left and right, front and back to adapt to different sizes of samples.
3. universal foot support equipment, so that the minimum distance between the equipment from the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling. 4. Simple clamping structure design, all operations can be completed quickly by a single person, without any tools to assist.
GW-BSE-24
Great Win
9024800000
| Quantity: | |
|---|---|
Product Characteristics |
1. This product is designed specifically for the European standard leisure recliner backrest and office chair seat front corner alternating endurance test.
2. The loading cylinder can be adjusted up and down (motorized), left and right, front and back to adapt to different sizes of samples.
3. universal foot support equipment, so that the minimum distance between the equipment from the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling. 4. Simple clamping structure design, all operations can be completed quickly by a single person, without any tools to assist.
BRAND | Great Win |
ITEM NO. | GW-BSE-24 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
| Technical Specifications |
| Parameter | 1. double cylinder loading, cylinder 63*500mm, output force 300-1500N. 2. motorized adjustable beam, so that the height of the loading pad from the test bench range: 0-910mm. 2. motorized adjustment of the beam, so that the height of the loading pad from the test platform range: 0-910 mm, the beam can do 90 degrees rotation. 3. adjustable parallel spacing between the center line of loading double cylinders: 200-700mm, adjustable test speed: 5-15 times / min. 4. Overall dimensions: 1100 * 1420 * 1800 mm, net weight: 360 kg. 5. 5. air source: air pressure greater than 0.5MPa, flow rate of more than 1000 liters / min, the air source needs to be filtered and dried. 6. power supply: 220VAC, 2A. |
| Control | 1. PLC control, touch screen input test parameters and output test results, with power failure memory function to avoid test data loss. 2. 2. Adopting the microcontroller developed by our factory. Optional control of cylinder output force or displacement, with tracking, display force - time curve, the loading section countdown, overload output alarm, etc. 3. 3. In the cylinder output force control mode, the force is closed-loop control. That is: only when the current value of the loading force reaches 95% of the set value (background can be modified) will trigger a delay, and keep the current value within ±3% of the set value fluctuations (the standard requirement is ±5%). 4. 4. In the cylinder output position mode, the displacement is controlled by moving the magnetic sensor attached to the cylinder surface. 5. 5. The system is equipped with a memory function for stop/power failure, a low air pressure detection function, and a breakpoint shutdown function. |
Product Characteristics |
1. This product is designed specifically for the European standard leisure recliner backrest and office chair seat front corner alternating endurance test.
2. The loading cylinder can be adjusted up and down (motorized), left and right, front and back to adapt to different sizes of samples.
3. universal foot support equipment, so that the minimum distance between the equipment from the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling. 4. Simple clamping structure design, all operations can be completed quickly by a single person, without any tools to assist.
BRAND | Great Win |
ITEM NO. | GW-BSE-24 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
| Technical Specifications |
| Parameter | 1. double cylinder loading, cylinder 63*500mm, output force 300-1500N. 2. motorized adjustable beam, so that the height of the loading pad from the test bench range: 0-910mm. 2. motorized adjustment of the beam, so that the height of the loading pad from the test platform range: 0-910 mm, the beam can do 90 degrees rotation. 3. adjustable parallel spacing between the center line of loading double cylinders: 200-700mm, adjustable test speed: 5-15 times / min. 4. Overall dimensions: 1100 * 1420 * 1800 mm, net weight: 360 kg. 5. 5. air source: air pressure greater than 0.5MPa, flow rate of more than 1000 liters / min, the air source needs to be filtered and dried. 6. power supply: 220VAC, 2A. |
| Control | 1. PLC control, touch screen input test parameters and output test results, with power failure memory function to avoid test data loss. 2. 2. Adopting the microcontroller developed by our factory. Optional control of cylinder output force or displacement, with tracking, display force - time curve, the loading section countdown, overload output alarm, etc. 3. 3. In the cylinder output force control mode, the force is closed-loop control. That is: only when the current value of the loading force reaches 95% of the set value (background can be modified) will trigger a delay, and keep the current value within ±3% of the set value fluctuations (the standard requirement is ±5%). 4. 4. In the cylinder output position mode, the displacement is controlled by moving the magnetic sensor attached to the cylinder surface. 5. 5. The system is equipped with a memory function for stop/power failure, a low air pressure detection function, and a breakpoint shutdown function. |
