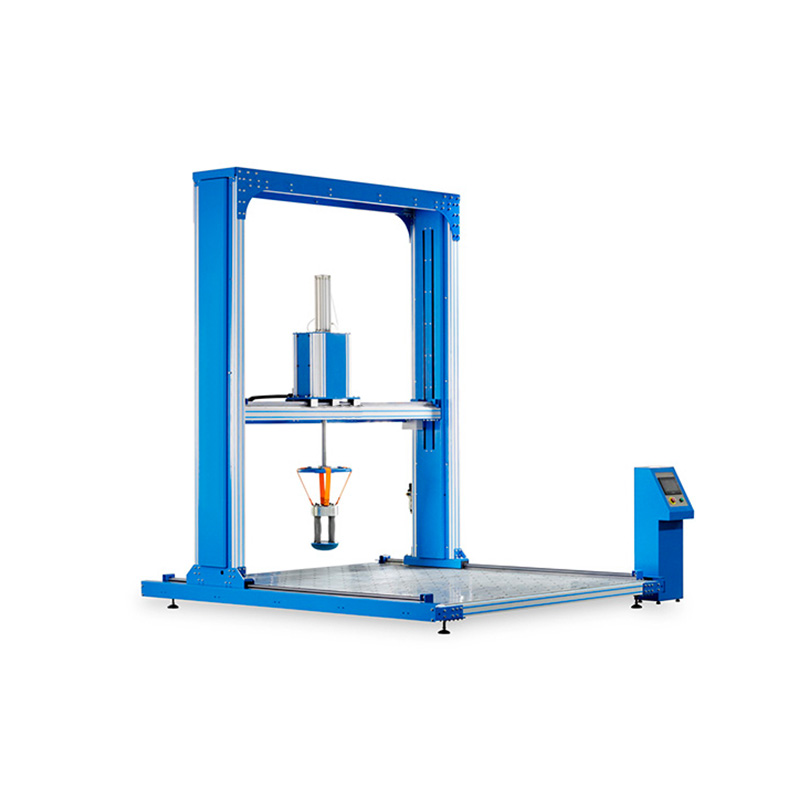

1. The test platform is covered with a 2.4 mm stainless steel plate and arranged with a matrix of M10 threaded holes for sample fixation at a distance of 150 mm.
2. Convenient operation. The impact assembly can be moved in the X, Y direction, motorized height adjustment in the Z direction, and can be locked in any position.
GW-GBF-32
Great Win
9024800000
| Quantity: | |
|---|---|
Product Characteristics |
1. The test platform is covered with a 2.4 mm stainless steel plate and arranged with a matrix of M10 threaded holes for sample fixation at a distance of 150 mm.
2. Convenient operation. The impact assembly can be moved in the X, Y direction, motorized height adjustment in the Z direction, and can be locked in any position.
BRAND | Great Win |
ITEM NO. | GW-GBF-32 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
| Technical Specifications |
| Parameter | 1. Effective dimensions of the working table: 1840 mm in length and 1460 mm in width. (Note: Area covered by the center of the impact assembly) 2. Effective height of impact assembly: 2438 mm. 3. Maximum impact stroke: 350 mm; (customization acceptable). 4. Maximum load of impact assembly: 50 kg; (Customization acceptable). 5. equipment body size: 2830 * 2510 * 3700 mm; net weight: 1080 kg. 6. Air source: greater than or equal to 0.5Mpa, flow rate not less than 400 liters/minute. 7. Power supply: 220VAC 5A. |
| control | 1. PLC+touch screen combination control, with stop/power failure memory function to avoid test data loss. 2. Manual or automatic control is available. Manual control is mostly used for strength test or machine adjustment, automatic control is mostly used for endurance test. 3. 3. optional impact release mechanism components to do free fall or slow release loading mode. 4. 4. with a breakpoint stop detection function. |
