Medical Syringe Air Leakage Tester | -88kPa Vacuum Tightness Tester per ISO 7886-1

Share to:

Medical Syringe Air Leakage Tester | -88kPa Vacuum Tightness Tester per ISO 7886-1

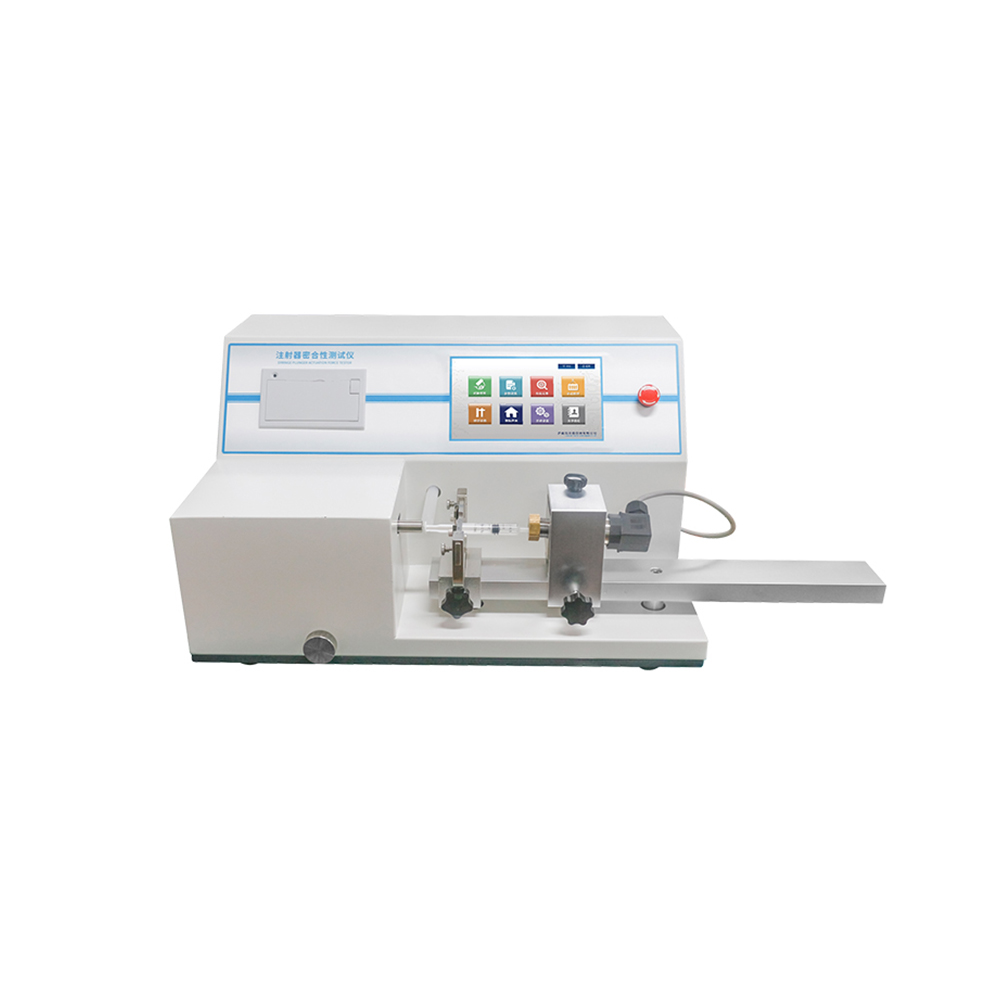

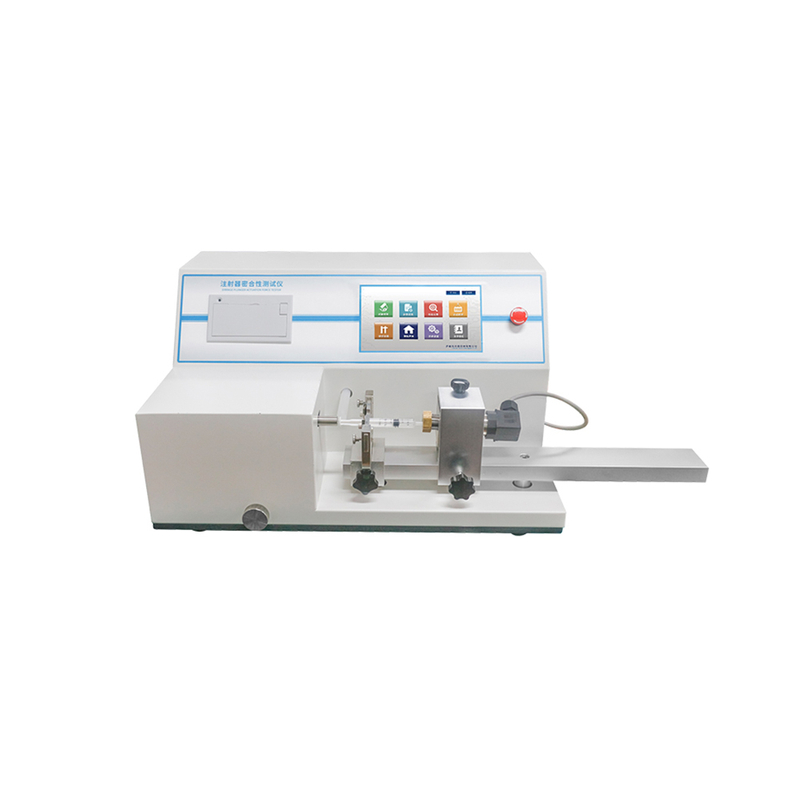

GW-363 is a professional medical syringe air leakage tester designed according to ISO 7886-1. It features a 7-inch color LCD and PLC programmed control for automatic testing with a built-in printer. The system maintains a stable negative pressure of -88kPa to ensure the high-precision tightness identification of syringe bodies.

Model:
GW-364
Brand:
Great Win
Code:
9024800000

Availability:

Quantity:



Inquire Add to Basket

Product Description

Brief introduction

The positive pressure tester for assessing the leak-tightness of medical syringe barrels is designed for testing the leak-tightness of syringe barrels. It is one of the key methods used to evaluate medical syringes.

BRAND	Great Win
ITEM NO.	GW-364
ORDER(MOQ)	1
PAYMENT	TT OR L/C
PRODUCT ORIGIN	China
SHIPPING PORT	Shenzhen Port
LEAD TIME	In stock, 7days Fast Delivery

Standard for：

ISO80369，ISO9626-2016，ISO7864-2016

Technical Specifications

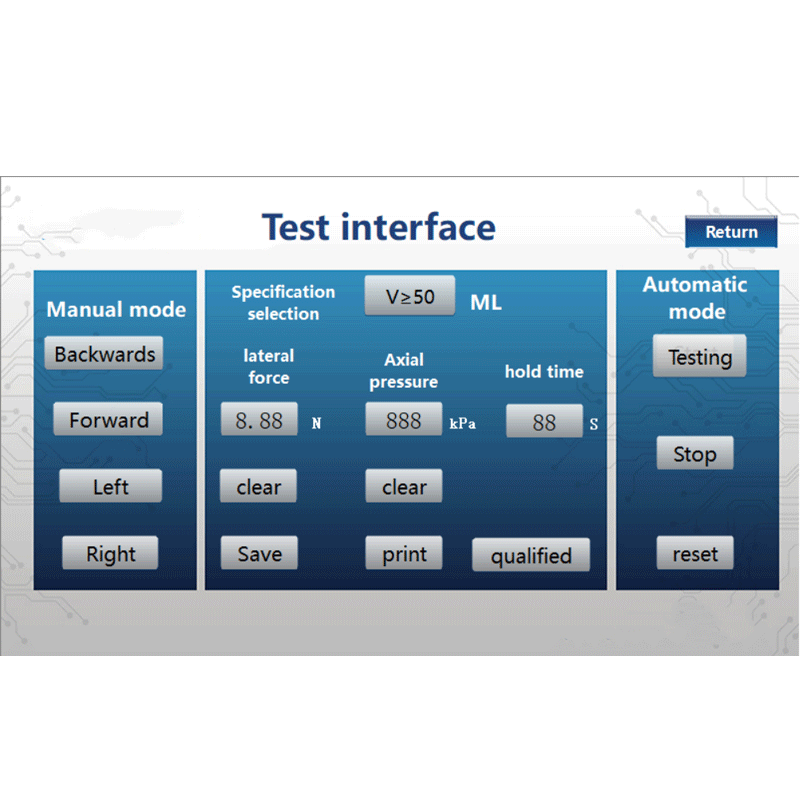

1. The tester adopts 7-inch professional color LCD screen.

2. Programmed via a PLC (Programmable Logic Controller) for automatic testing, with a built-in printer;

3. Chinese menu display: real-time display of all parameters

Item	Parameter
Lateral force	-88Kpa±0.3Kpa
Axial pressure	100 kPa to 400 kPa, with an error of no more than approximately 5%
Nominal capacity	1 ml to 60 ml, selectable
Test duration	30 s, with an error of no more than 1 s
Machine power	60W
Size	420 mm (L) × 330 mm (W) × 280 mm (H)
Net weight	10kg
