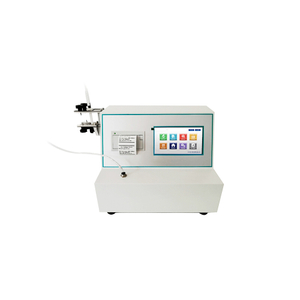

	Medical Syringe Air Leakage Tester \| Negative Pressure Tightness Tester per ISO 7886-1
	Medical Syringe Air Leakage Tester \| -88kPa Vacuum Tightness Tester per ISO 7886-1
	Multipurpose Tester for Medical Conical Fittings (Luer) (ISO 80369/GB 1962.1 Standard)
	Medical Device Flow Testing Machine ISO 7864-2016
	Condom Burst Volume and Pressure Testing Machine

All New Products

Medical Syringe Sliding Performance Tester | Plunger Force Testing Machine per ISO 7886-1

Share to:

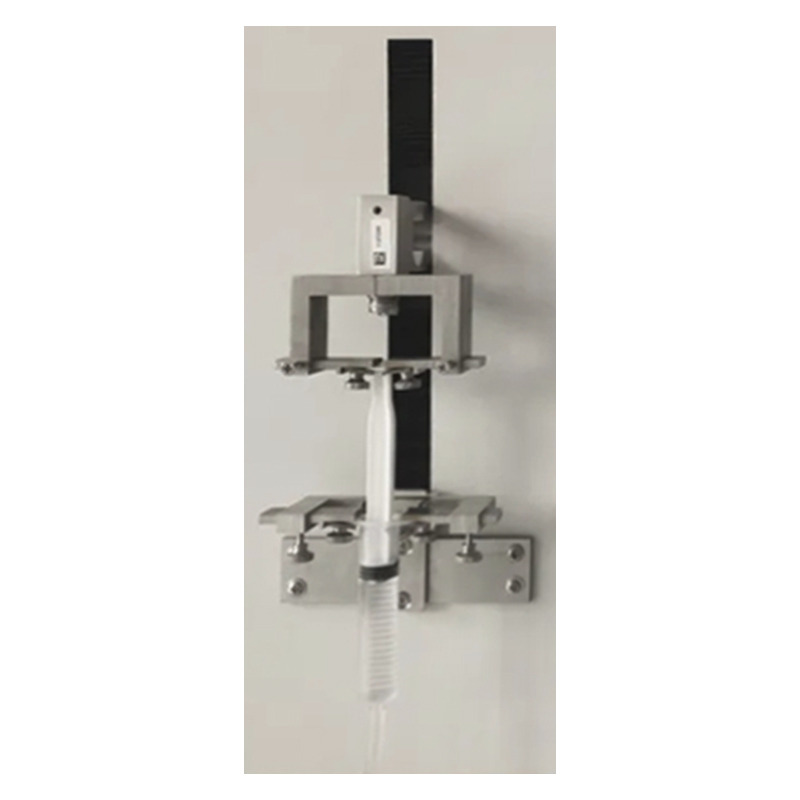

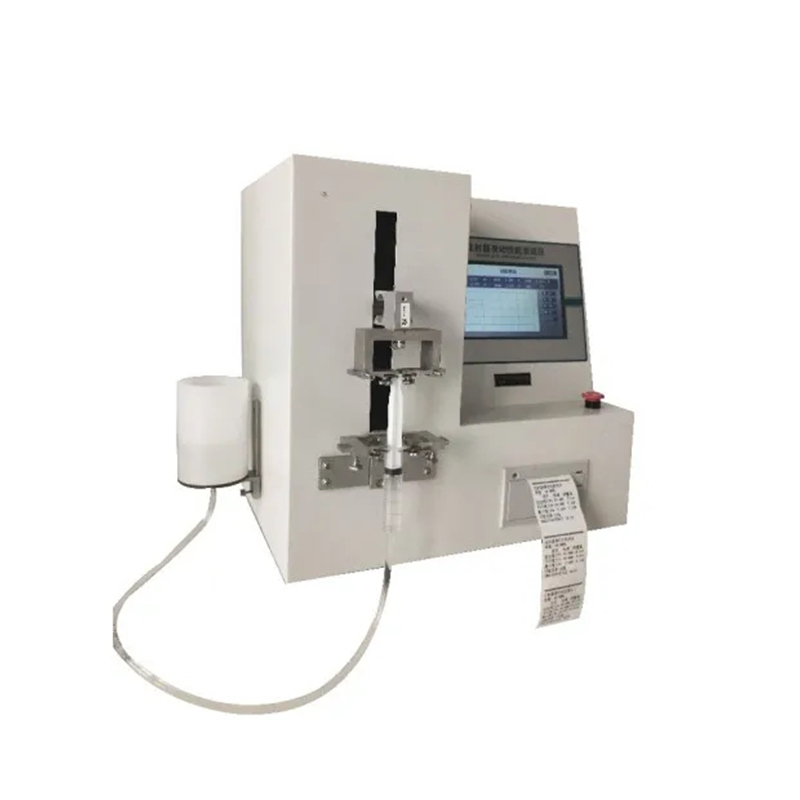

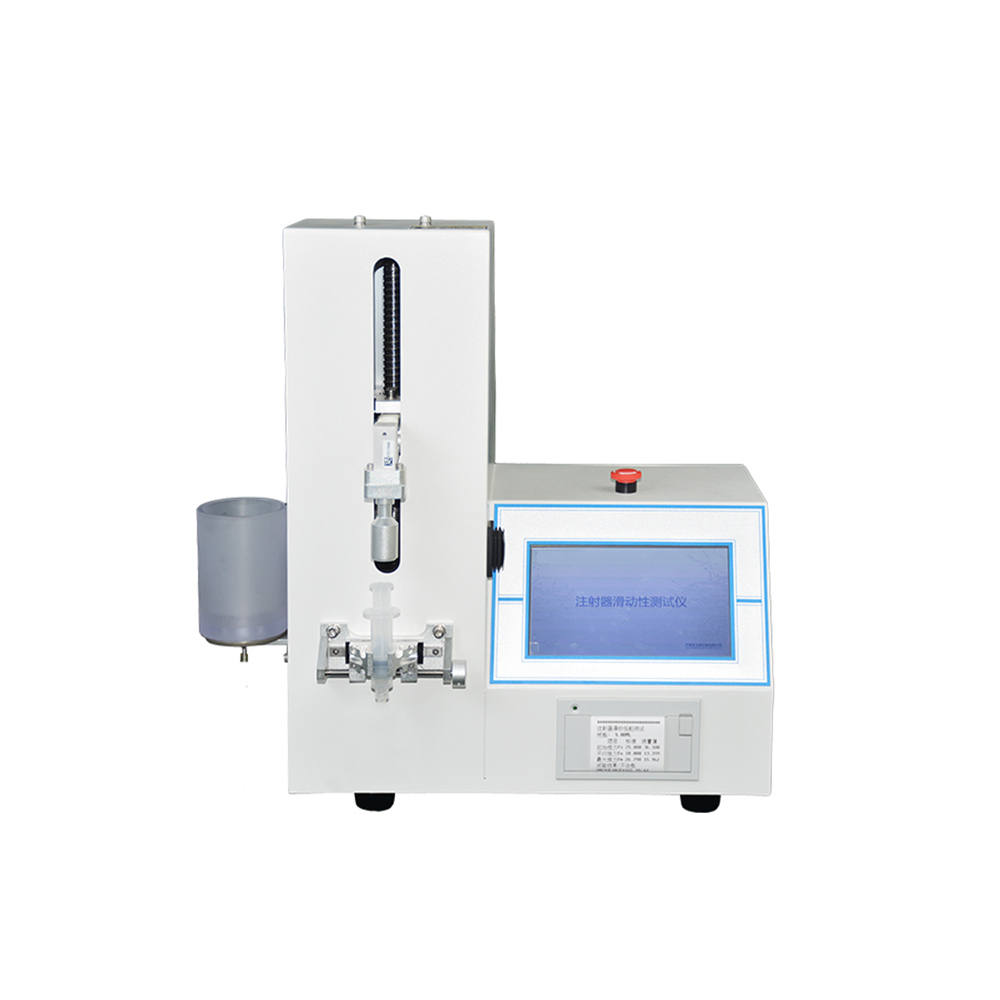

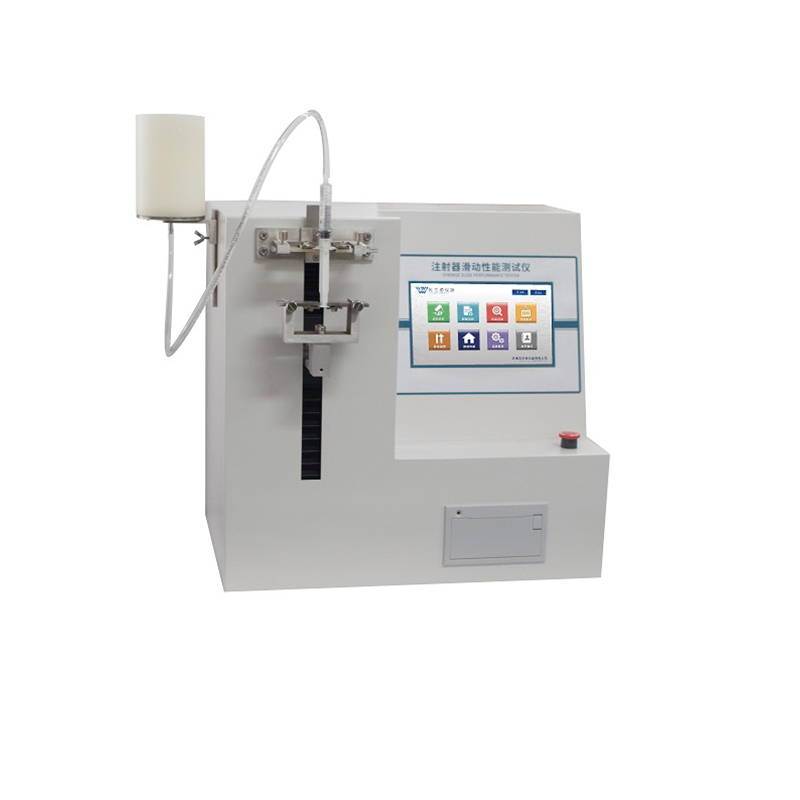

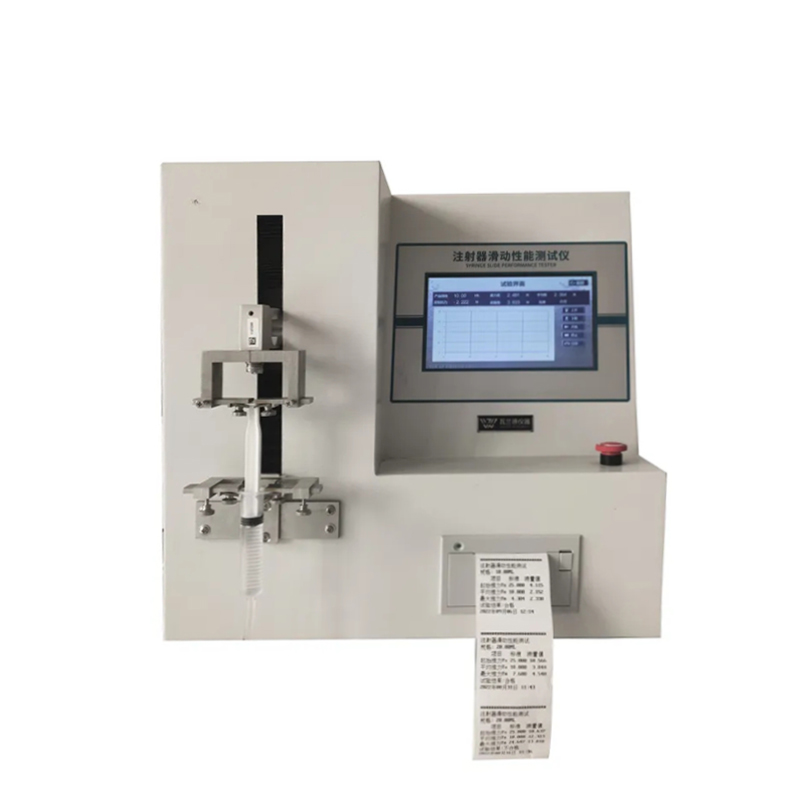

Medical Syringe Sliding Performance Tester | Plunger Force Testing Machine per ISO 7886-1

GW-365 is a high-precision medical syringe sliding performance tester designed for measuring initial force, average force, and maximum/minimum retraction forces. Compliant with ISO 7886-1 and ISO 8537, it features a 7-inch color LCD, real-time data graphing, and an intelligent controller for automatic result evaluation. Perfect for ensuring the smooth operation of syringes from 0.1 mL to 100 mL.

Model:
GW-365
Brand:
Great Win
Code:
9024800000

Availability:

Quantity:



Inquire Add to Basket

Product Description

Brief introduction

The medical syringe sliding performance tester is designed for testing the sliding performance of syringes. It is one of the key methods used to evaluate medical syringes.

BRAND	Great Win
ITEM NO.	GW-365
ORDER(MOQ)	1
PAYMENT	TT OR L/C
PRODUCT ORIGIN	China
SHIPPING PORT	Shenzhen Port
LEAD TIME	In stock, 7days Fast Delivery

Standard for：

ISO 7886-1，ISO8537-2016，YY0497-2018

Technical Specifications

1. The tester adopts 7-inch professional color LCD screen.

2. The Chinese menu displays: real-time readings of initial force, average force, maximum retraction force, minimum retraction force, as well as graphs showing the movement of the plunger and force data;

3. The intelligent controller selects the syringe’s nominal capacity, automatically evaluates the test results, and prints them out via the on-board printer.

Item	Parameter
Force range	0–100 N
Accuracy	Accuracy: ±1% of full scale
Test speed	100 ± 5 mm/min
Capacity (litres)	0.1 mL to 100 mL (selectable)
Test duration	30 ± 1 s (waiting time between the end of the tensile test and the start of the compression test)
Dimensions	420 mm (L) × 290 mm (W) × 280 mm (H)
Net weight	15 kg
