Medical Syringe Air Leakage Tester | Negative Pressure Tightness Tester per ISO 7886-1

Share to:

Medical Syringe Air Leakage Tester | Negative Pressure Tightness Tester per ISO 7886-1

GW-363 is a professional medical syringe air leakage tester designed according to ISO 7886-1. Features a 7-inch color LCD, PLC control, and stable -88kPa negative pressure testing for syringe body tightness. Ideal for syringe manufacturers and scientific research institutions.

Model:
GW-363
Brand:
Great Win
Code:
9024800000

Availability:

Quantity:



Inquire Add to Basket

Product Description

Brief introduction

Medical Syringe Air Leakage Tester is suitable for testing the tightness of syringe body. It is one of the important means to identify medical syringes.

BRAND	Great Win
ITEM NO.	GW-363
ORDER(MOQ)	1
PAYMENT	TT OR L/C
PRODUCT ORIGIN	China
SHIPPING PORT	Shenzhen Port
LEAD TIME	In stock, 7days Fast Delivery

Standard for：

ISO 7886-1，ISO8537-2016，YY0497-2018

Technical Specifications

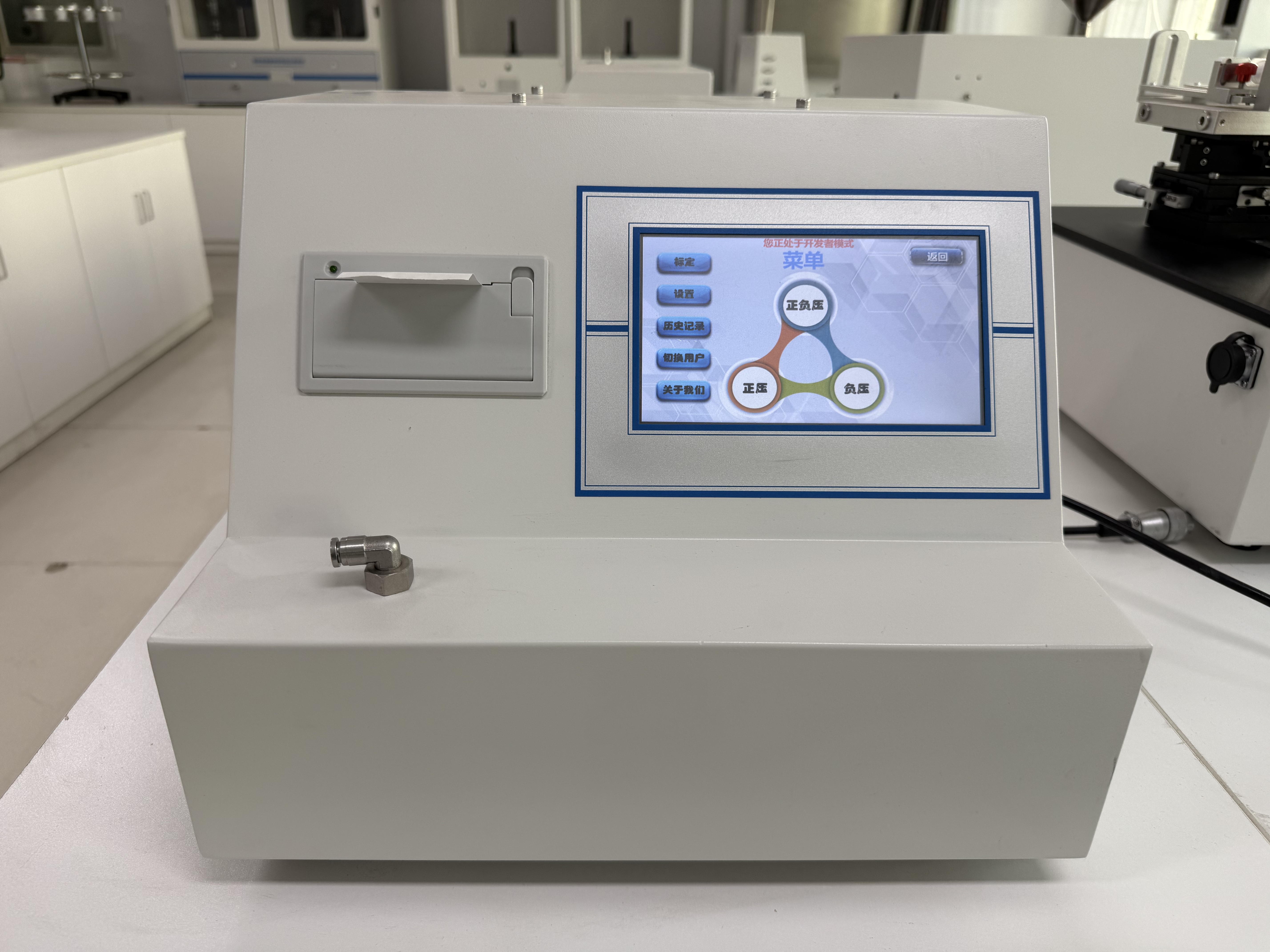

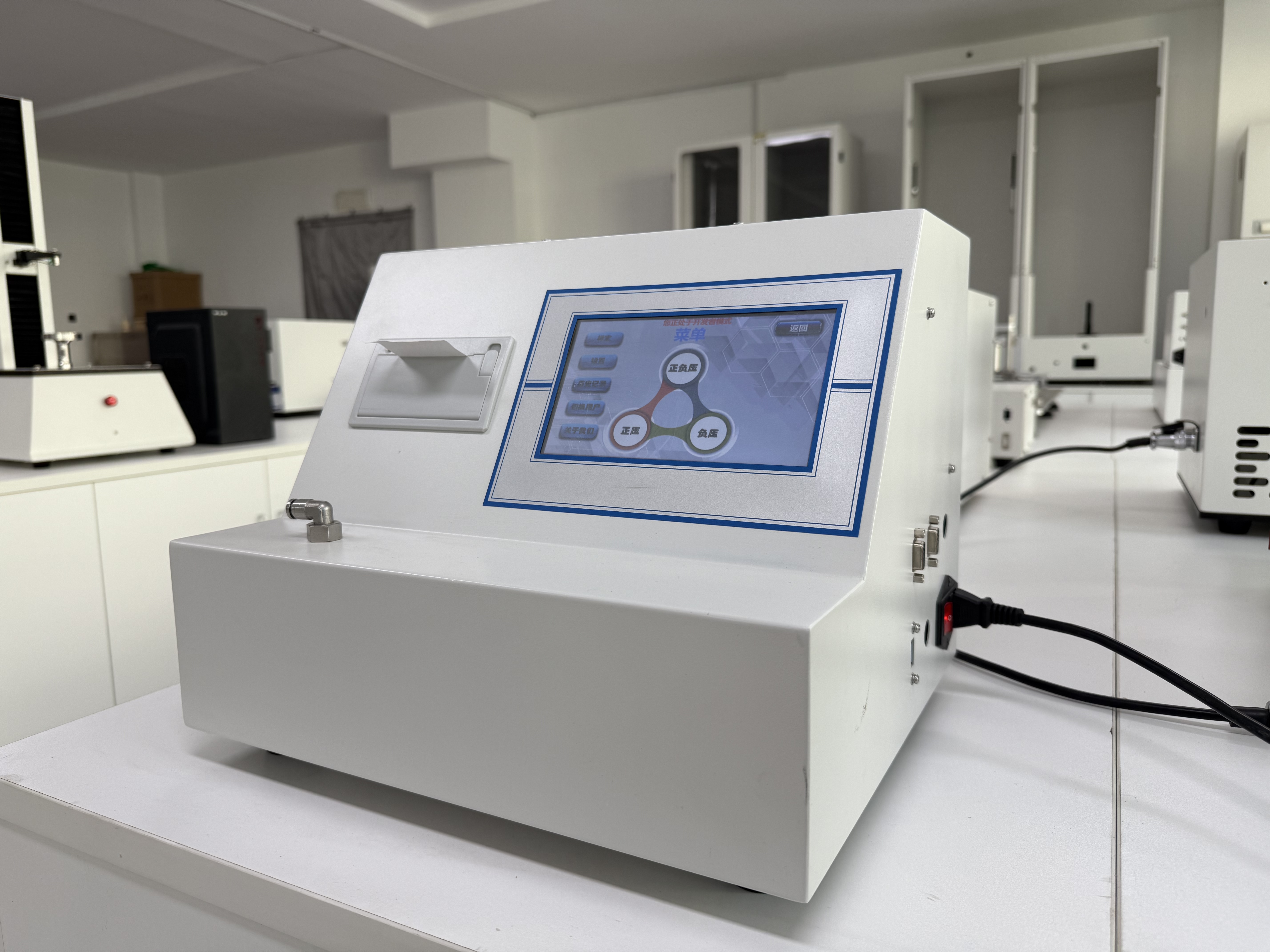

l The tester adopts 7-inch professional color LCD screen.

l Programmed via a PLC (Programmable Logic Controller) for automatic testing, with a built-in printer;

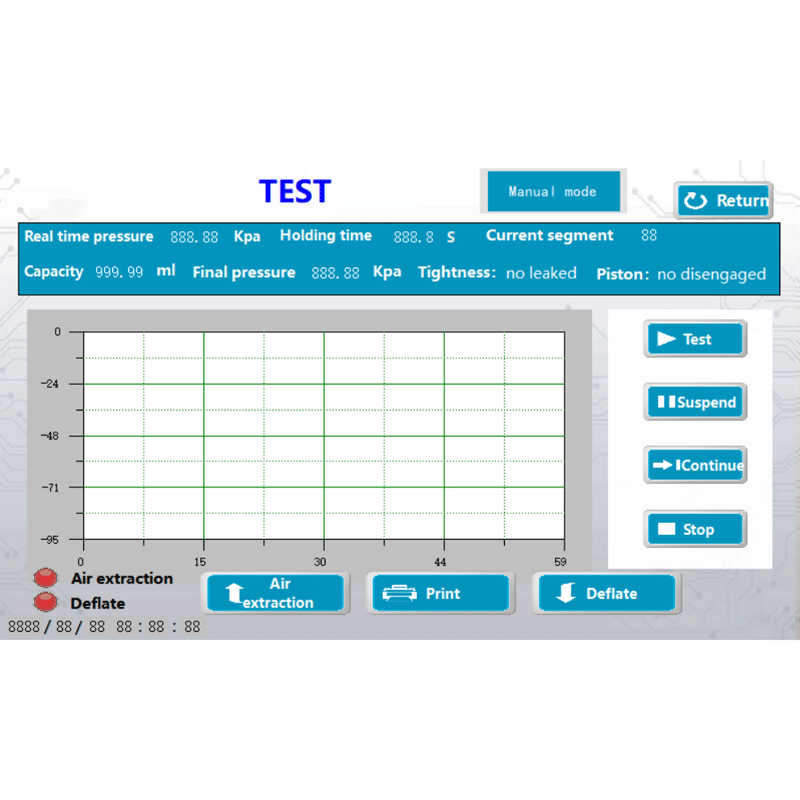

l Chinese menu display: real-time display of all parameters;

l The measurement system maintains a negative pressure without drift for 1 minute, and the test results are printed by the on-board printer.

Item	Parameter
Negative pressure output	-88Kpa±0.3Kpa
Test range	-5Kpa～-90Kpa. Adjustable
Test time	1S～9999S. Arbitrary setting, the error is not more than 0.1s
Power supply	AC220V，50Hz
Machine power	60W
Size	400mm(L)×290mm(W)×240mm(H)
Net weight	8.5kg
