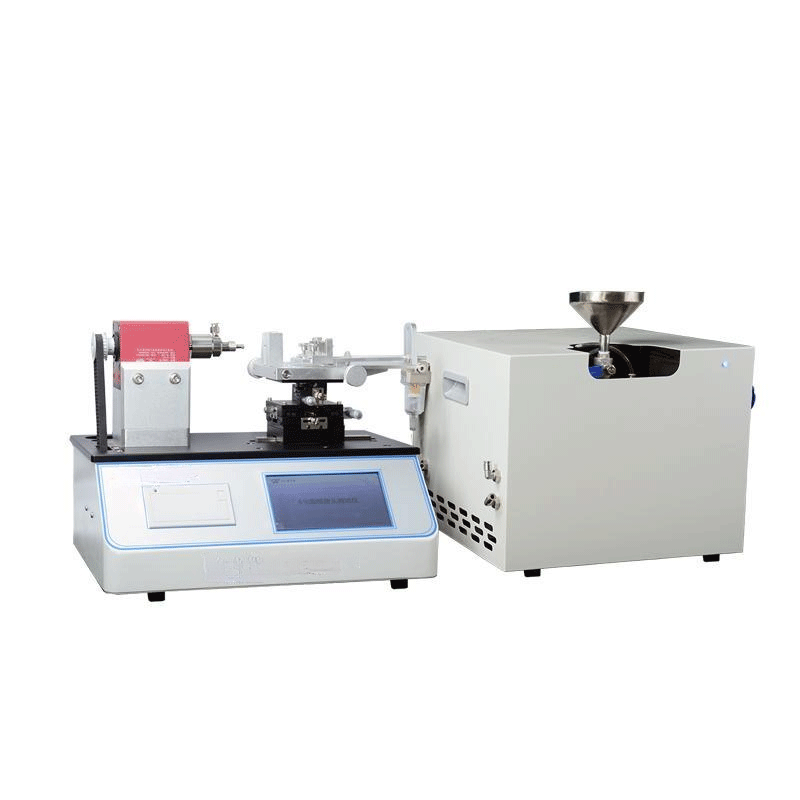

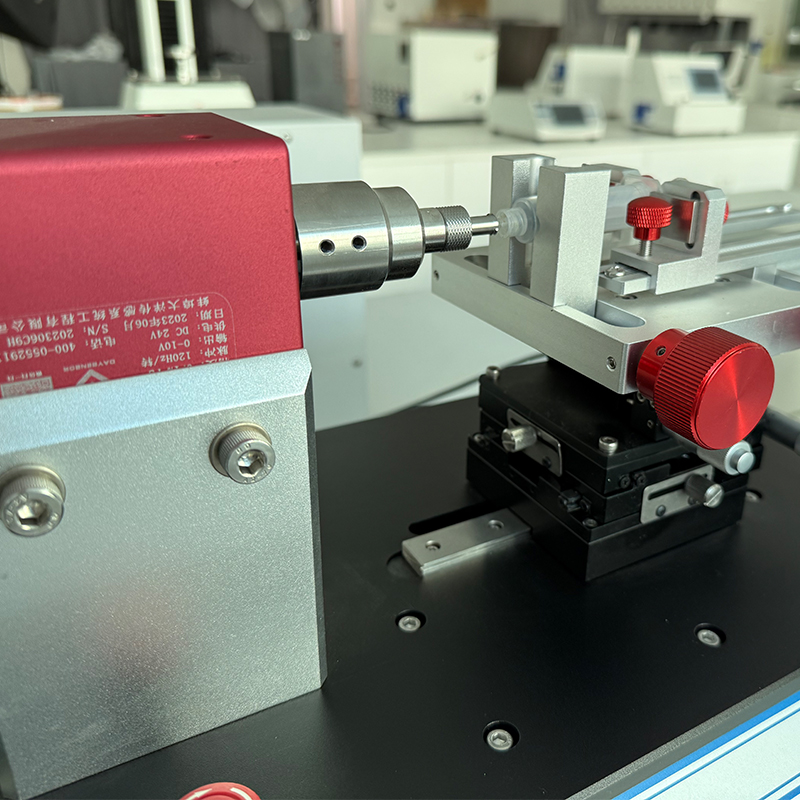

The product is used to test the performance of conical joints such as liquid leakage, air leakage, separation force, stress cracking, etc
BRAND | Great Win |
ITEM NO. | GW-369 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard for：
GB1962.1-2015，GB1962.2-2001,ISO80369-3:2016; ISO80369-6:2016 ; ISO80369-7:2021
l Features a 7-inch colour LCD touchscreen with a PLC menu displayed in Chinese.

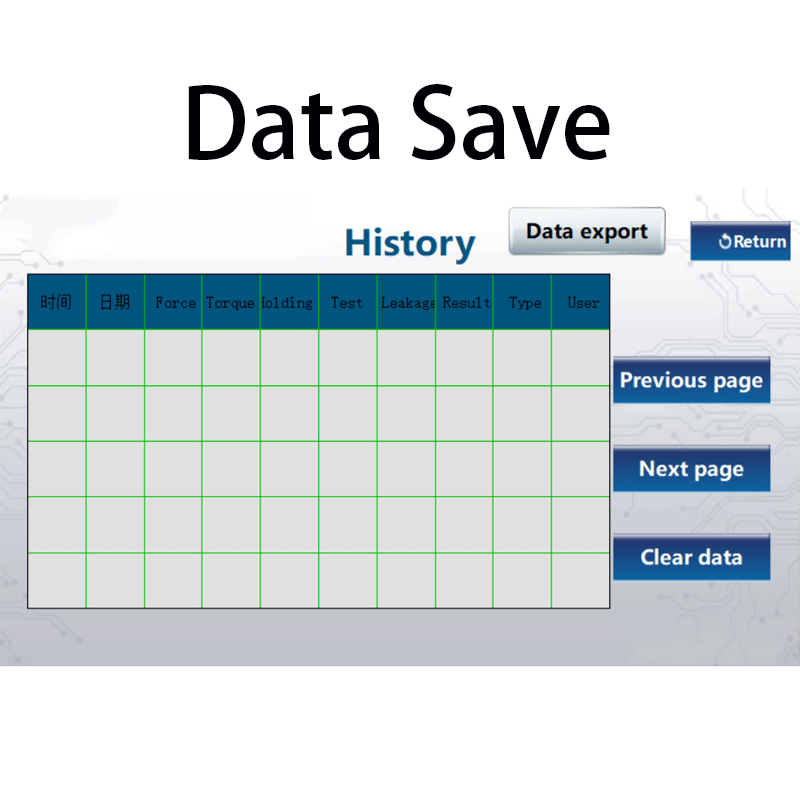

l Complies with GMP multi-level user permissions; test data history can be queried, data is non-modifiable, and audit trails are maintained.
l Test data is displayed in real time, with the system determining whether the results are compliant; test data and results are printed by the printer for analysis.

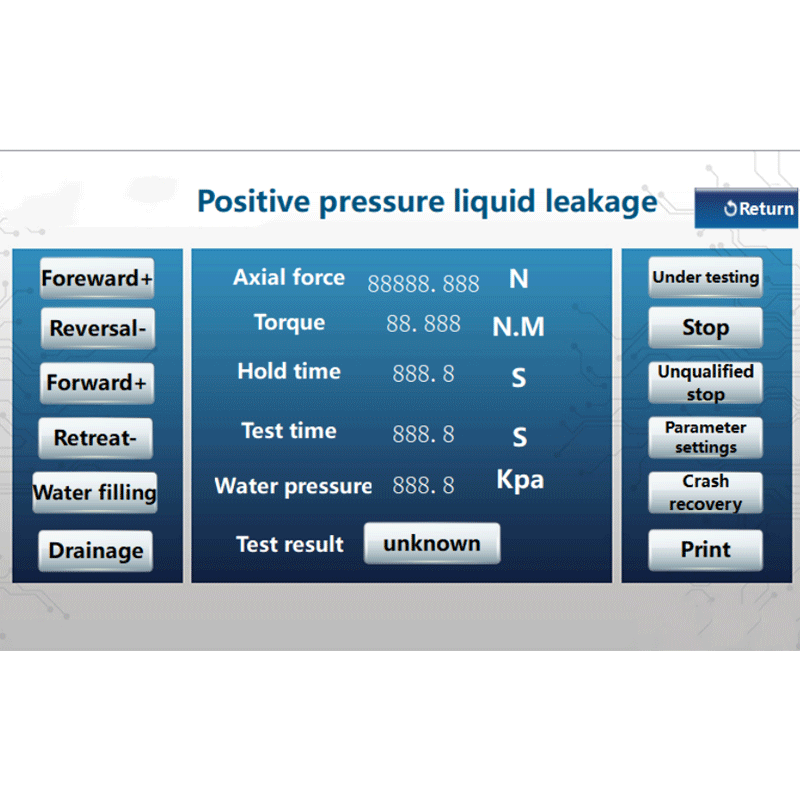

l Select the nominal capacity of the syringe within the system; during the test, the system displays the axial force and torque applied to the assembly, dwell time, internal water pressure, separation force, and positive and negative pressure leakage rates. Test results can be printed via the on-board printer.

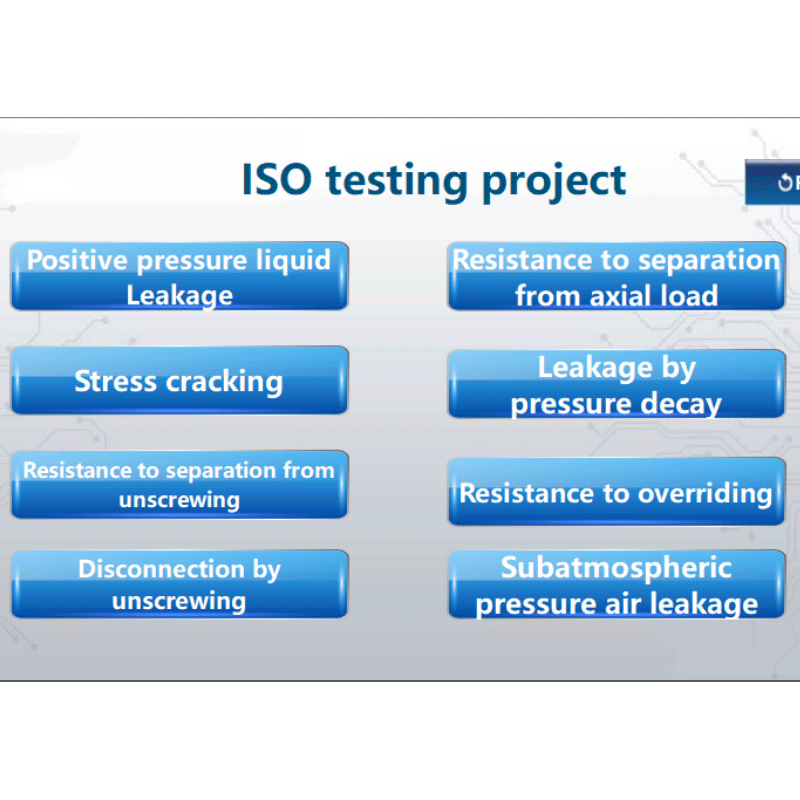

l ISO 80369 test items: pressure decay leakage, positive pressure liquid leakage, sub-atmospheric air leakage rate (equipped with a negative pressure leakage rate tester), stress cracking, resistance to axial disengagement, resistance to rotational disengagement, and overload resistance, etc.
According to the requirements of ISO80369-3:2016, ISO80369-6:2016, and ISO80369-7:2021, apply a certain amount of torque and axial force to the tested conical joint, and check the leakage, separation force, anti loosening, overload resistance, stress cracking and other properties of the 6% (Luer) conical joint.
