GW-368
Great Win
9024800000
| Quantity: | |
|---|---|

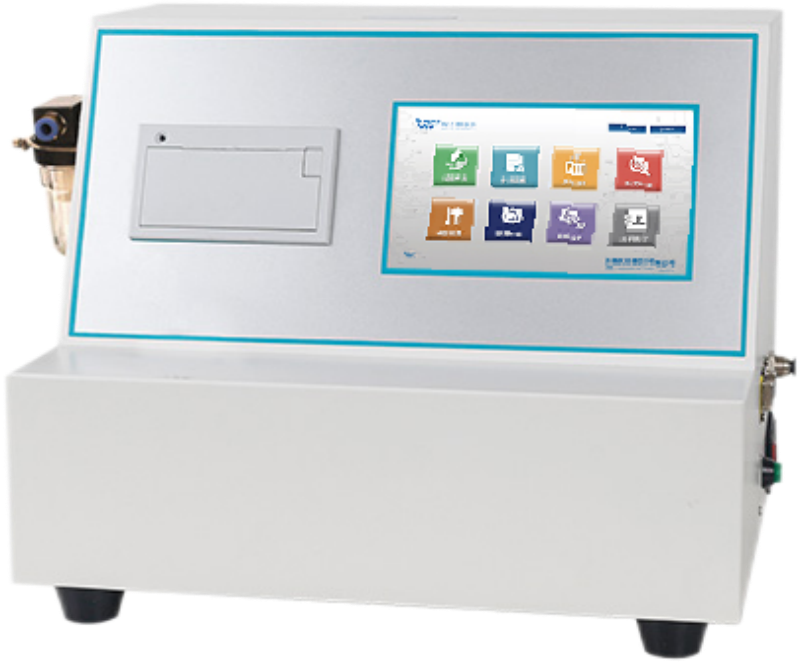

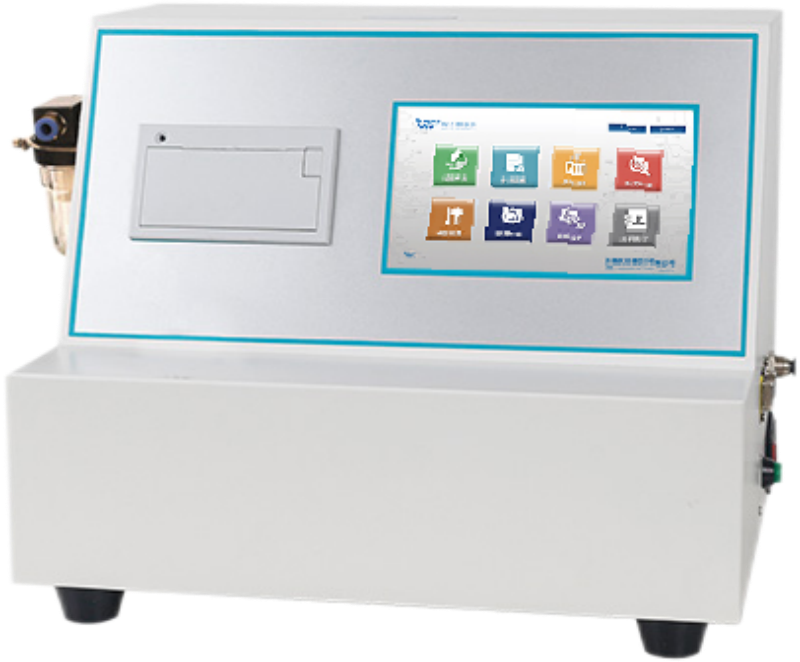

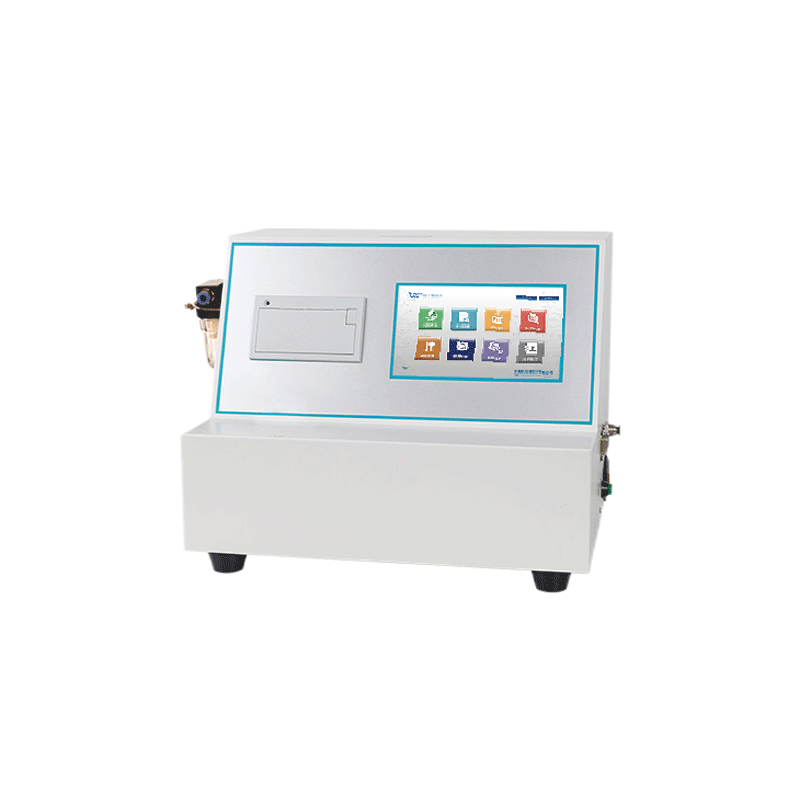

Brief introduction |

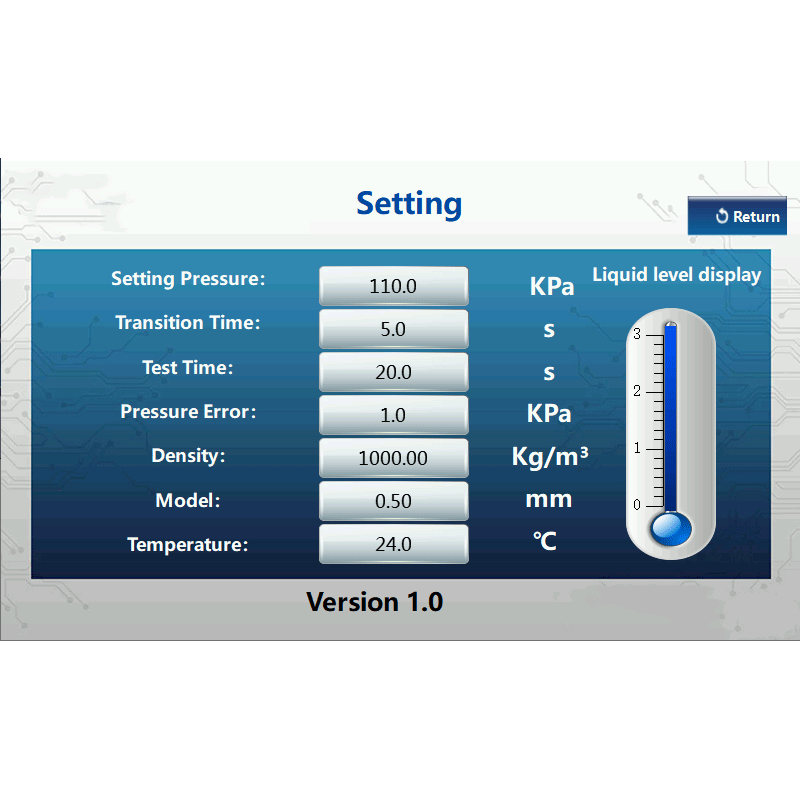

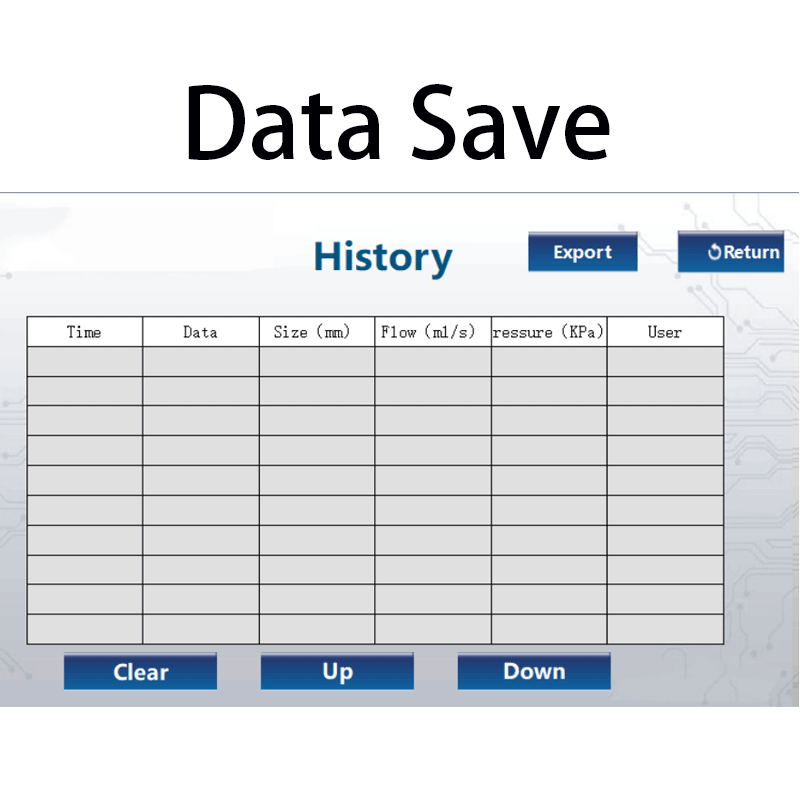

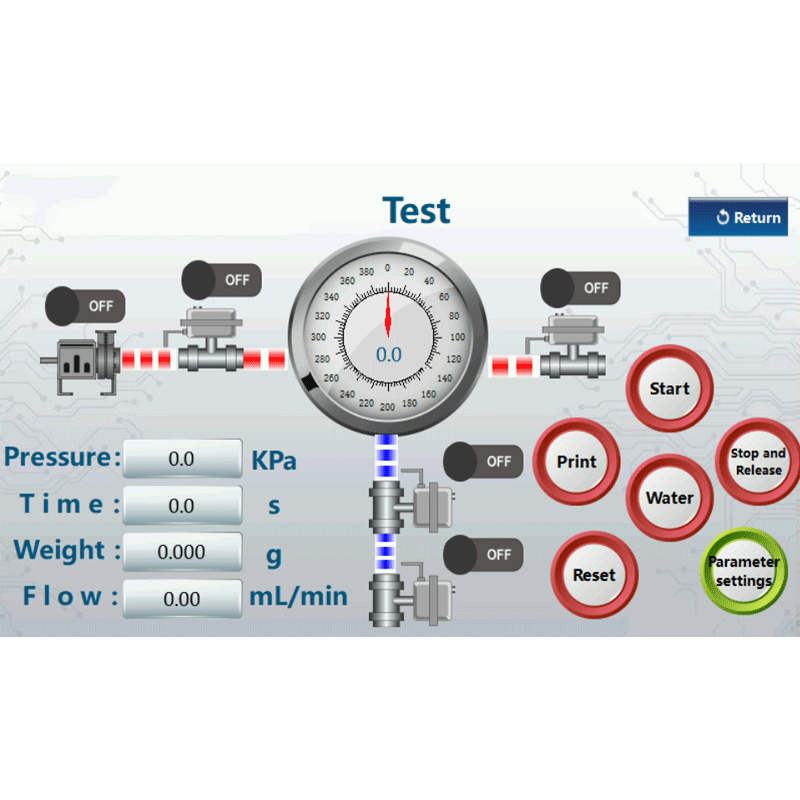

5.7 inch (320*240) multi LCD touch screen and PLC English menu display are adopted. Touch the menu on the LCD and print the test results by the airborne printer. It is a special equipment designed according to the relevant provisions in the national standards for medical devices, which is specially used to detect the flow of medical devices
BRAND | Great Win |
ITEM NO. | GW-368 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard for：
ISO 7864-2016
| Technical Specifications |
1.Main machine +6mm standard gas pipe
2.Pressure output range: higher than local atmospheric pressure, 10kpa~100kpa,
3. Display mode: LCD digital display;
4.The pressure output value can be set arbitrarily, and the verification error shall not be greater than ± 2.5% of the reading.
5.Test duration: 5 seconds ~99.9 minutes,
6. LCD digital display, error not greater than ± 1s.
7.Suitable for infusion set, blood transfusion set, infusion needle, anesthesia filter, etc.
8.For conduits with a nominal outside diameter less than 1.0 mm, the flow rate shall be 80% to 125%;
9. For conduits with a nominal outer diameter greater than or equal to 1.0 mm, the flow rate shall be 90% ~ 115% of the value marked by the manufacturer
10.Net weight: 11kg overall dimension: 400 ×290 × 240 (mm)
Attached accessories |
1 Main frame
10 Roll of printing paper
1 pcs φ6mm air tube
1 Standard Water storage tank(As picture shown)
| Product details |
