Engineering Outsole Wear Resistance: Great Win Releases Next-Generation NBS Rubber Abrasion Testing Machine for Standardized ASTM D1630 Compliance

Executive Summary: Standardizing Dynamic Friction Diagnostics for Rubber Compounds

In high-performance footwear manufacturing, tire engineering, and industrial elastomer production, outsole abrasion resistance dictates product longevity, field reliability, and consumer brand perception. Premature wear not only compromises grip and user safety but also results in non-compliance penalties during buyer verification audits.

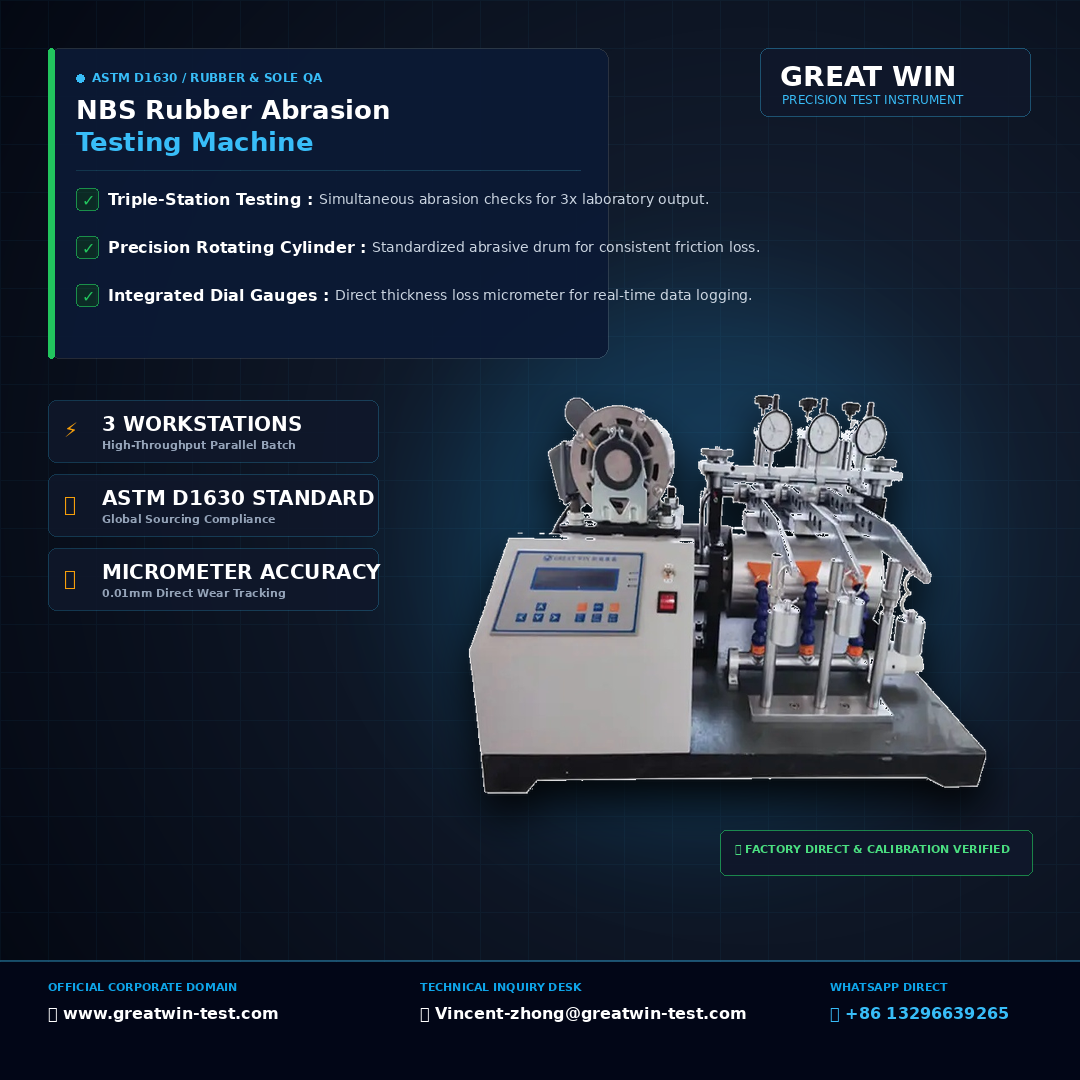

To eliminate testing discrepancies and scale laboratory throughput, Great Win has officially launched its high-precision NBS Rubber Abrasion Testing Machine (Footwear Rubber Abrader). Purpose-built to measure the abrasion resistance of vulcanized rubber compounds, synthetic elastomers, and finished footwear soles according to strict international test methods, this diagnostic instrument provides certified volume loss metrics directly to quality assurance departments worldwide.

The Operational Challenge: Real-World Friction vs. Lab Measurement

• The Industry Dilemma: Traditional rotary or sliding friction testing setups frequently suffer from unstable surface contact, uneven abrasive grit wear, and manual thickness measurement errors. When testing multi-layer compound formulas, irregular deadweight application leads to scattered wear indices across consecutive batches, delaying supply chain releases.

• The Engineering Solution: The Great Win NBS Rubber Abrasion Tester applies continuous, uniform rotational abrasion using a calibrated abrasive cylinder operating under precise normal deadweight loads. By utilizing three dedicated testing arms with individual thickness loss dial indicators, the system captures real-time wear progression without subjective operator bias, providing verifiable data to clear ASTM D1630 audits.

Technical Deep Dive: Kinematics & Diagnostic Architecture

+-----------------------------------------------------------------------------------------+
|                  GREAT WIN NBS RUBBER ABRASION DIAGNOSTIC WORKFLOW                      |
+-----------------------------------------------------------------------------------------+
|  [Standardized Rubber Specimen] ---> [Calibrated Normal Load Arm: 22.2 N (5 lbf)]       |
|               |                                      |                                  |
|               v                                      v                                  |
|  [Precision Rotating Drum (45 rpm)] ---> [Standardized Abrasive Paper Contact]          |
|                                                      |                                  |
|                                                      v                                  |
|                                    [High-Precision Dial Gauges: 0.01 mm Runout]         |
|                                                      |                                  |
|                                                      v                                  |
|                                    [Simultaneous 3-Station Parallel Comparison]         |
|                                                      |                                  |
|                                                      v                                  |
|                                    [Automated Microprocessor Cycle Cut-off]             |
+-----------------------------------------------------------------------------------------+

1. How does the NBS testing method differ from standard DIN abrasion tests?

While DIN abrasion testing (such as ISO 4649) moves a test specimen axially across a rotating drum, the NBS abrasion test maintains stationary specimen positioning against a continuous rotating abrasive surface under specific contact geometry. The NBS method calculates the Abrasion Index by comparing the revolutions required to abrade a calibrated thickness (typically 2.54 mm / 0.1 inch) of the test specimen against a standardized reference compound. This provides an accurate predictive wear metric for footwear outsoles and heavy-duty rubber treads.

2. What engineering controls ensure mechanical stability across extended tests?

The apparatus incorporates a synchronous, low-vibration motor coupled with a heavy-duty reduction gear system that maintains a stabilized drum speed of 45 ± 5 rpm. Each specimen holder applies a standardized downward force of 22.2 N (5 lbf / 2.26 kgf). The robust structural base eliminates resonant mechanical vibration, preventing erratic friction chatter and ensuring uniform abrasion grooves across all specimens.

3. How do direct dial micrometers improve laboratory efficiency?

In conventional testing, technicians must unclamp specimens, measure residual thickness with external calipers, and re-clamp them—a process that introduces significant repositioning errors. Great Win’s tester features integrated dial indicators (graduated to 0.01 mm) mounted directly above each testing station. These gauges monitor real-time thickness reduction continuously, and the intelligent controller can be pre-programmed to halt automatically when a predetermined thickness loss target is reached.

4. Which material formulations can be benchmarked?

The testing station accommodates a wide spectrum of solid and cellular elastomer formulations:

• Vulcanized Natural and Synthetic Rubber: Evaluating crosslink density impact on wear resistance.

• Footwear Outsole Compounds: Testing solid rubber, gum rubber, and carbon rubber outsoles.

• High-Density EVA & Polyurethane Midsole Blends: Measuring surface resistance against abrasive ground contact.

• Industrial Rubber Products: Benchmarking conveyor belt coverings, transmission belts, and protective seals.

Technical Specifications Matrix

Factory-Direct Supply & Global Engineering Support

Sourcing laboratory testing equipment directly from Great Win guarantees end-to-end technical alignment, traceable factory calibration, and long-term equipment reliability. By eliminating third-party distribution intermediaries, Great Win provides research institutions, tanneries, and rubber processing facilities with certified testing hardware, verified spare parts availability, and personalized laboratory integration services.

Partner with Great Win for Technical Excellence

For complete technical datasheets, standardized reference rubber options, or an authorized commercial quote for your testing facility, contact our global engineering liaison team:
