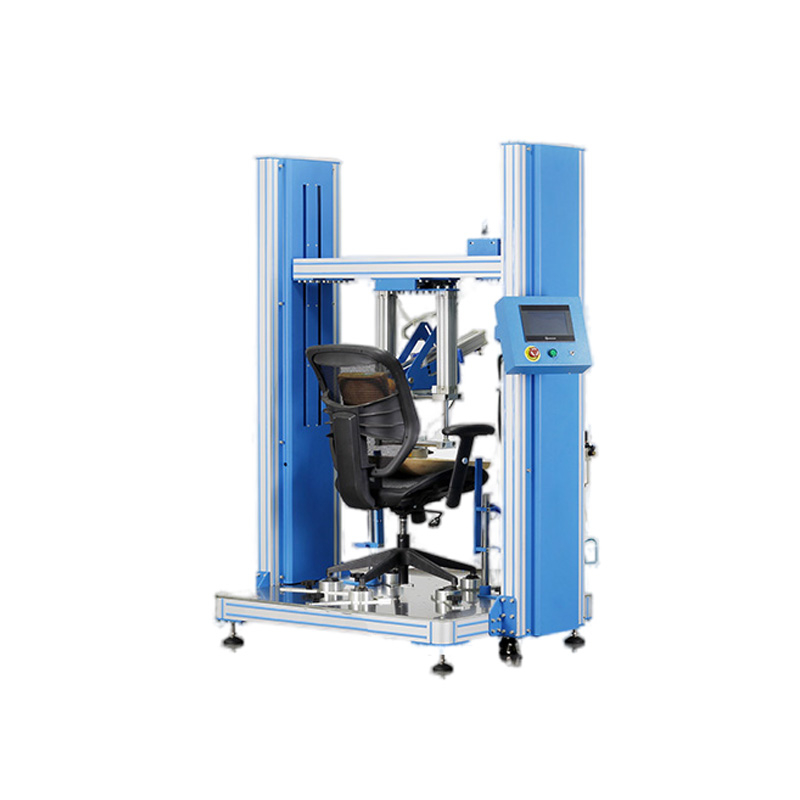

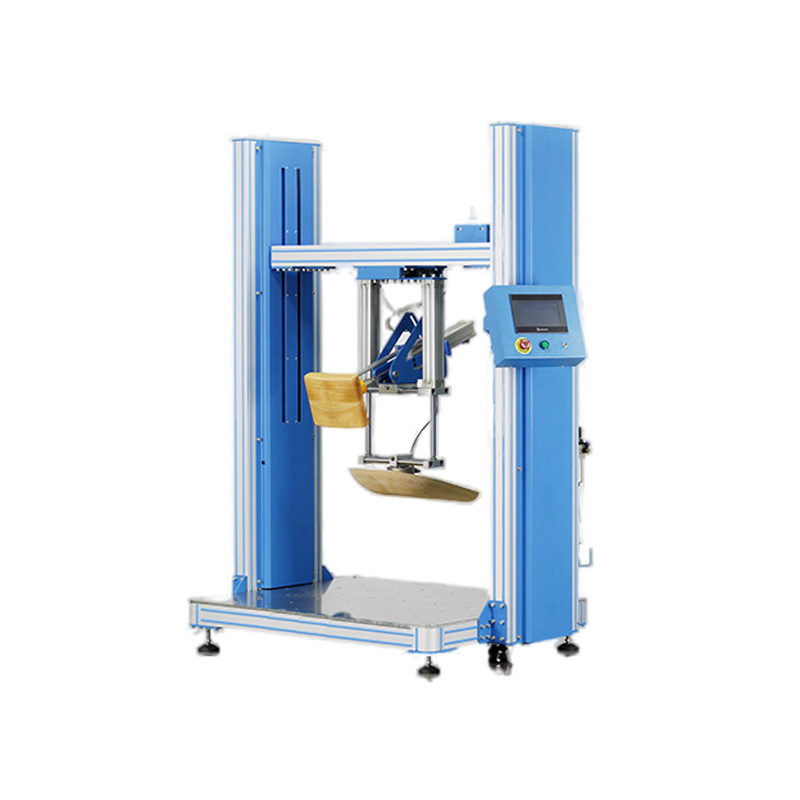

1. This product design is specially for the joint test of single seat seat of European standard and national standard.
2. Electrically adjust the height of the beam, so that the seat surface loading covers the height of 200-800 mm.
3. Vertical loading cylinder assembly installed on the "base", adjustable left and right deviation ± 100 mm; in the back loading, automatically adjust the front and rear position, and maintain the vertical loading state.
4. The back loading cylinder has adjustable tilt Angle 0-45 degrees, adjustable left and right deviation ± 50 mm. Meet BSEN 1728:20127.9 Combined loading test mode for F-H, C-B, J-E, chair back.(Standard requirements)
5. Universal footpad equipment, so that the minimum distance from the ground is more than 80 mm, convenient to adjust the equipment level and forklift handling.6. Simple clip structure design, all operations can be quickly completed by one person, without any tools.
GW-BSE-23
Great Win
9024800000
| Quantity: | |
|---|---|
Product Characteristics |
1. This product design is specially for the joint test of single seat seat of European standard and national standard.
2. Electrically adjust the height of the beam, so that the seat surface loading covers the height of 200-800 mm.
3. Vertical loading cylinder assembly installed on the "base", adjustable left and right deviation ± 100 mm; in the back loading, automatically adjust the front and rear position, and maintain the vertical loading state.
4. The back loading cylinder has adjustable tilt Angle 0-45 degrees, adjustable left and right deviation ± 50 mm. Meet BSEN 1728:20127.9 Combined loading test mode for F-H, C-B, J-E, chair back.(Standard requirements)
5. Universal footpad equipment, so that the minimum distance from the ground is more than 80 mm, convenient to adjust the equipment level and forklift handling.6. Simple clip structure design, all operations can be quickly completed by one person, without any tools.
BRAND | Great Win |
ITEM NO. | GW-BSE-23 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
| Technical Specifications |
parameter | 1. Base face double cylinder loading, cylinder 50 * 250-S mm, output force 50-200 kg force. 2. Backrest single cylinder loading, cylinder of 50 * 250-S mm, output force of 30-100 kg force. 3. The height range of the electric adjusting beam from the test platform: 680-1380 mm. 4. Adjustable test speed: 10~25 times / minute is adjustable. 5. Count: 6 bits; with stop / power off memory function to avoid test data loss. 6. Overall size: 980 * 1420 * 1960 mm, net weight: 370 kg. 7. Gas source: the air pressure is greater than 0.5MPa, the flow rate is greater than 1000 l / minute, and the gas source should be treated by water filtration and drying. 8. Power supply: 220VAC, 2A.(Must be necessary). |

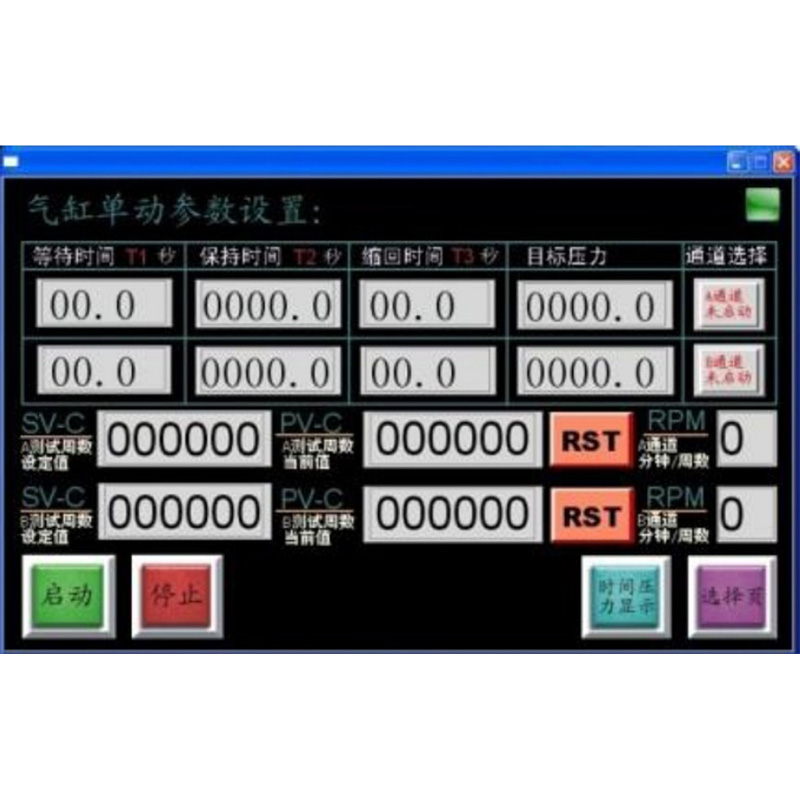

control | 1. PLC control, touch screen input test parameters and output test results, with stop and power-off memory function, to avoid test data loss. 2. Use the single-chip microcomputer control developed by the factory. Optional control cylinder output force or displacement, with tracking, display force-time curve, countdown of each loading section, overload output alarm, etc. 3. In the selection of cylinder output force control mode, the force is closed-loop control. That is, the delay is only triggered when the current value of the loading force reaches 95% of the set value (which can be modified in the background), and the current value can fluctuate within ± 3% of the set value.(Standard requirement of ± 5%) 4. In selecting the cylinder output position mode, the displacement is controlled by moving the magnetic sensor attached to the cylinder surface. 5. The system has the stop / power-off memory function, low pressure detection function and breakpoint shutdown function. |

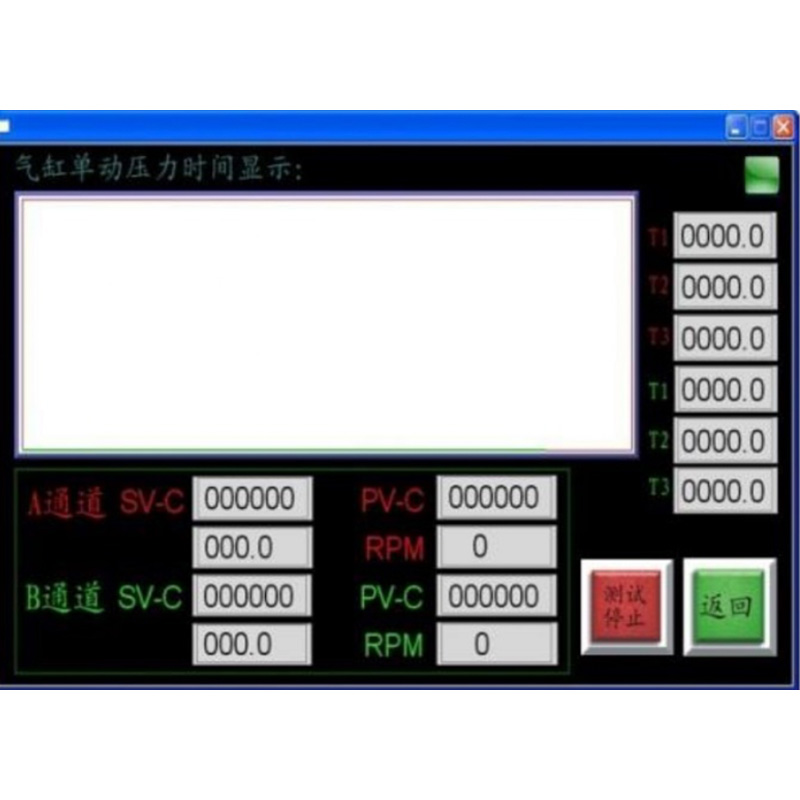

control | 1. Adopt the 2-channel pneumatic closed-loop SCM control system developed by the factory, with optional control cylinder output force or displacement mode, and optional two-channel cylinder for synchronous or asynchronous working mode. 2. In the selection of cylinder output force control mode, the force is the closed-loop control. That is, the delay is only triggered when the current value of the loading force reaches 95% of the set value (which can be modified in the background), and the current value can fluctuate within ± 3% of the set value (the standard requirement is ± 5%). 3. In the cylinder output position mode, the displacement is controlled by moving the magnetic sensor attached to the cylinder surface. 4. Touch screen input test parameters and output test results, display and track the value and curve of each force ~ time in real time.5. The system has the function of low pressure detection and breakpoint shutdown, shutdown and power failure memory. |
