1. Aluminum profile frame construction. All loading components can be moved and fixed position along the frame aluminum profile to make it in the best loading position. 2. all loading force cylinder elements are core hexagonal non-rotating cylinders, keeping the loading pads from rotating for loading.
3. the vertical cylinder assembly is mounted on a freely sliding horizontal "base" that automatically translates and remains vertical when subjected to a lateral force. 4. easy to operate, one person can quickly clamp the specimen without any tooling.
5. All channels can be set up in independent or combined action mode, and all channels are equipped with independent touch switches
GW-BFM-17
Great Win
9024800000
| Quantity: | |
|---|---|
Product Characteristics |
1. Aluminum profile frame construction. All loading components can be moved and fixed position along the frame aluminum profile to make it in the best loading position. 2. all loading force cylinder elements are core hexagonal non-rotating cylinders, keeping the loading pads from rotating for loading.
3. the vertical cylinder assembly is mounted on a freely sliding horizontal "base" that automatically translates and remains vertical when subjected to a lateral force. 4. easy to operate, one person can quickly clamp the specimen without any tooling.
5. All channels can be set up in independent or combined action mode, and all channels are equipped with independent touch switches.
BRAND | Great Win |
ITEM NO. | GW-BFM-17 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
| Technical Specifications |

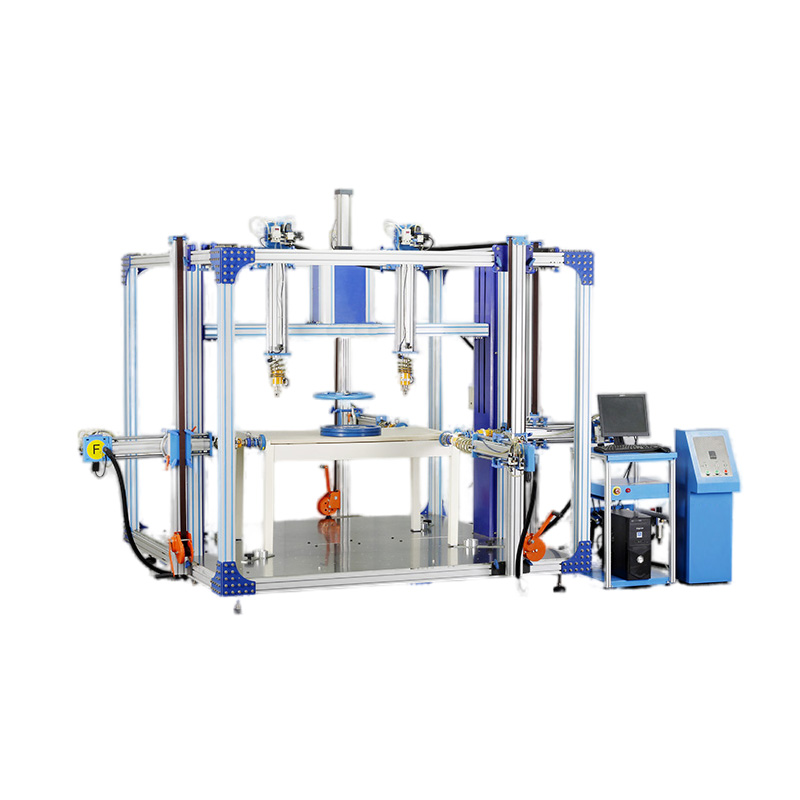

| apply | 1. This equipment is a furniture integrated mechanical testing machine, which is customized by customers according to their own product categories. 2. Mainly designed and manufactured for the structural strength and durability test of furniture products. | |||
assembly | Cylinder assembly | Horizontal load of the component 4 groups | Load the component 2 groups vertically | Impact component set 1 |
| air cylinder | 1. D40 * 500-S 1 branch 2. D63 * 500-S 3 branches | 1. D63 * 500-S 1 branch 2. D80 * 500-S 1 branch | D80 * 350-S 1 branch | |
| Force control | closed loop | ring opening | ||
| form | Pull pressure sensor + axis does not rotate cylinder + gas-electric proportional valve + single microcontroller + computer | Electromagnetic iron + cylinder | ||
| Output force | 40 diameter: 100-600N 63-diameter cylinder: 300-1500N | 63-diameter cylinder: 300-1500N 80-diameter cylinder: 500-2500N | Maximum: 400 pounds | |
moving range | Move up and down along the column: 400-1,500 mm Move left and right along the frame: + / -1000 mm The component can be moved back and forth: + / -260 mm Compcomponent rotation angle: 0-90 degrees | Move horizontally along the frame: + / -750 mm Move horizontally along the frame: + / -700 mm Move up and down along the cross beam: + / -260 mm | Sandbag impact height: 1200 mm move horizontally along the mounting beam Move: + / -600 mm | |
| other parameter | 1. Size and net weight: to be determined. This product is a non-standard customized product and needs to be corrected according to the customer. 2. Gas source: air pressure: 0.5MPa; flow rate: 800 l / min; the gas source shall be treated through water filtration and drying. 3. Power supply, power: 220VAC, 200W. |
control | 1. Eight-channel pneumatic servo closed-loop control system, developed by the factory, with independent refers to the property rights. 2. The equipment actually uses six channels. Each channel can be checked in a separate working mode or some (or all) channel linkage working mode. 3. Use the computer to input the test parameters, and output or store the test results. The test settings are expanded in a rich and beautiful multi-interface, with graphical and curved expression, and all data can be edited twice, or report output. 4. The system has tracking, display force-time curve, countdown of each loading section, overload output alarm, etc. 5. The system has the stop / power off memory function, low pressure detection function and breakpoint shutdown function. |
