Footwear testing solution

Views: 0     Author: Site Editor     Publish Time: 2021-09-17      Origin: Site


Great Win specialized in R&D and production for footwear testing equipment with more than 20years history. We strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB, etc, and has been recognized by SATRA, CSA international standard agency. We have established long-term relationship with Nike Vietnam,Sympatex,global SGS, Bureau Veritas, Intertek, etc. and passed the vendor review of  Nike,Brook, New Balance, PUMA, BATA ,Uvex and etc.


Test for whole shoes

1. Abrasion resistance test

2.Slip resistance test

3.Impact resistance test

4.Compression and puncture resistance test

5.Water resistance flexing test

6. Bonding strength test

7.Flexing resistance test

8.Electrical resistance test

9. Penetration resistance test

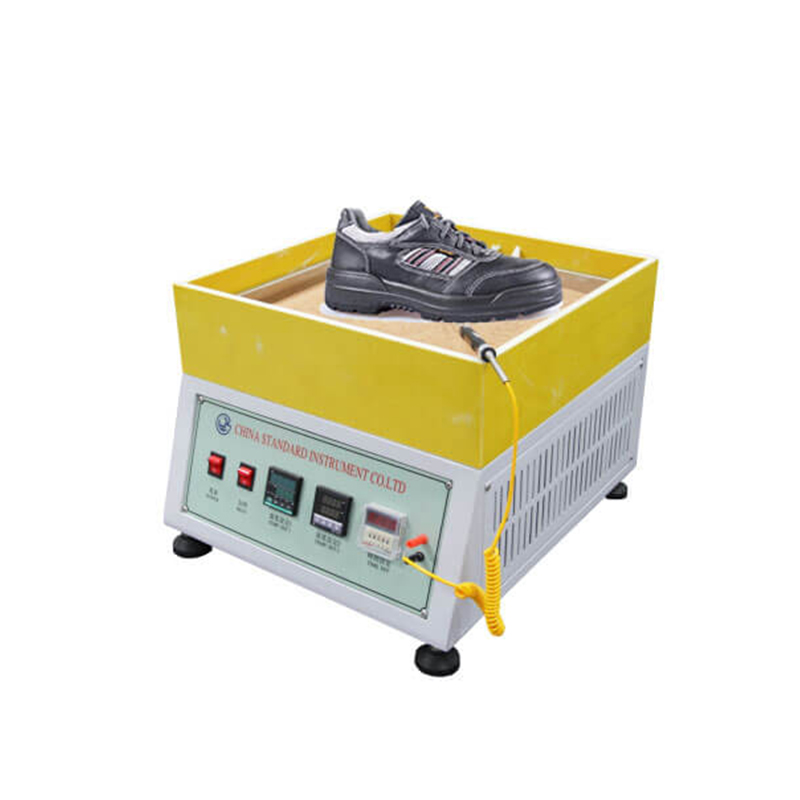

10.Insulation against heat test

11.Insulation against cold test

12. Oil content test

13.Ankle protection materials shock absorption capacity test

14.Anti-static / electrical test

15.Leakproofness test


Test for upper, lining and tongue

Thickness tester Tear resistance tester

Tensile properties tester

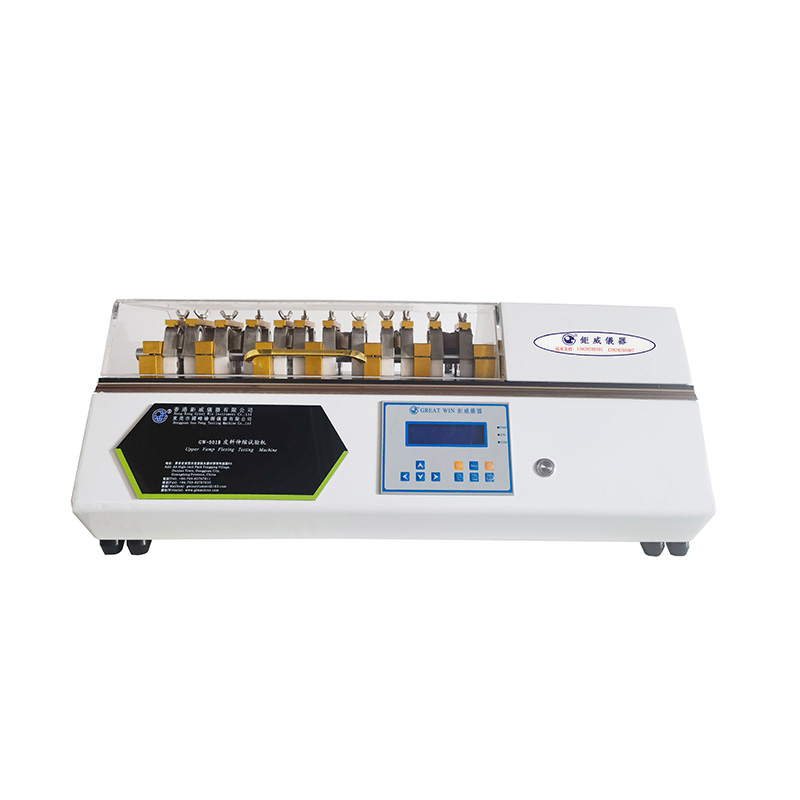

Flexing resistance tester

Water vapour permeability tester

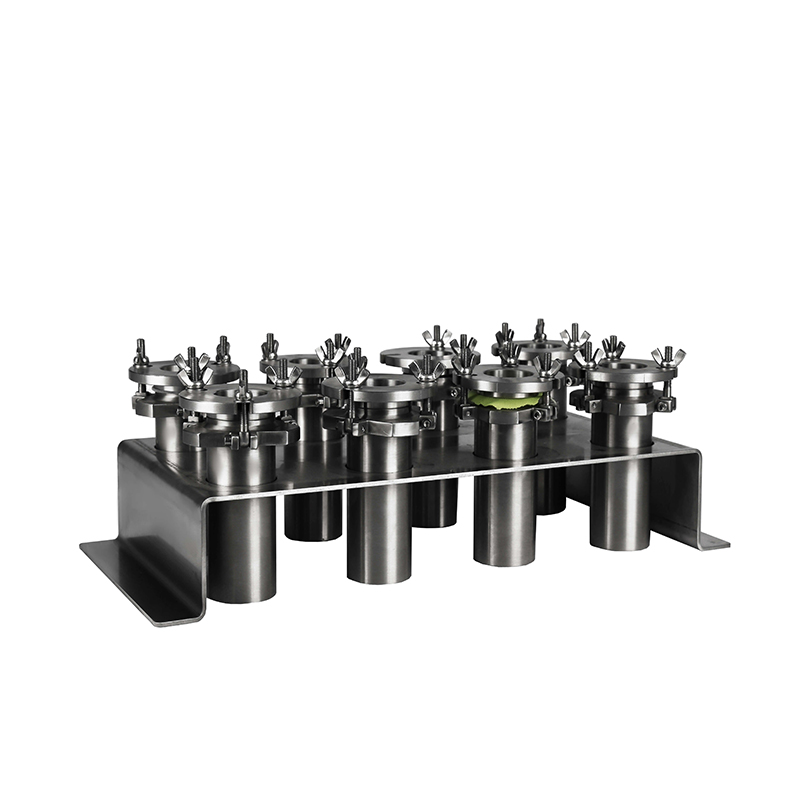

Water vapour absorptivity tester

pH meter

Hydrolysis resistance tester

Abrasion resistance tester

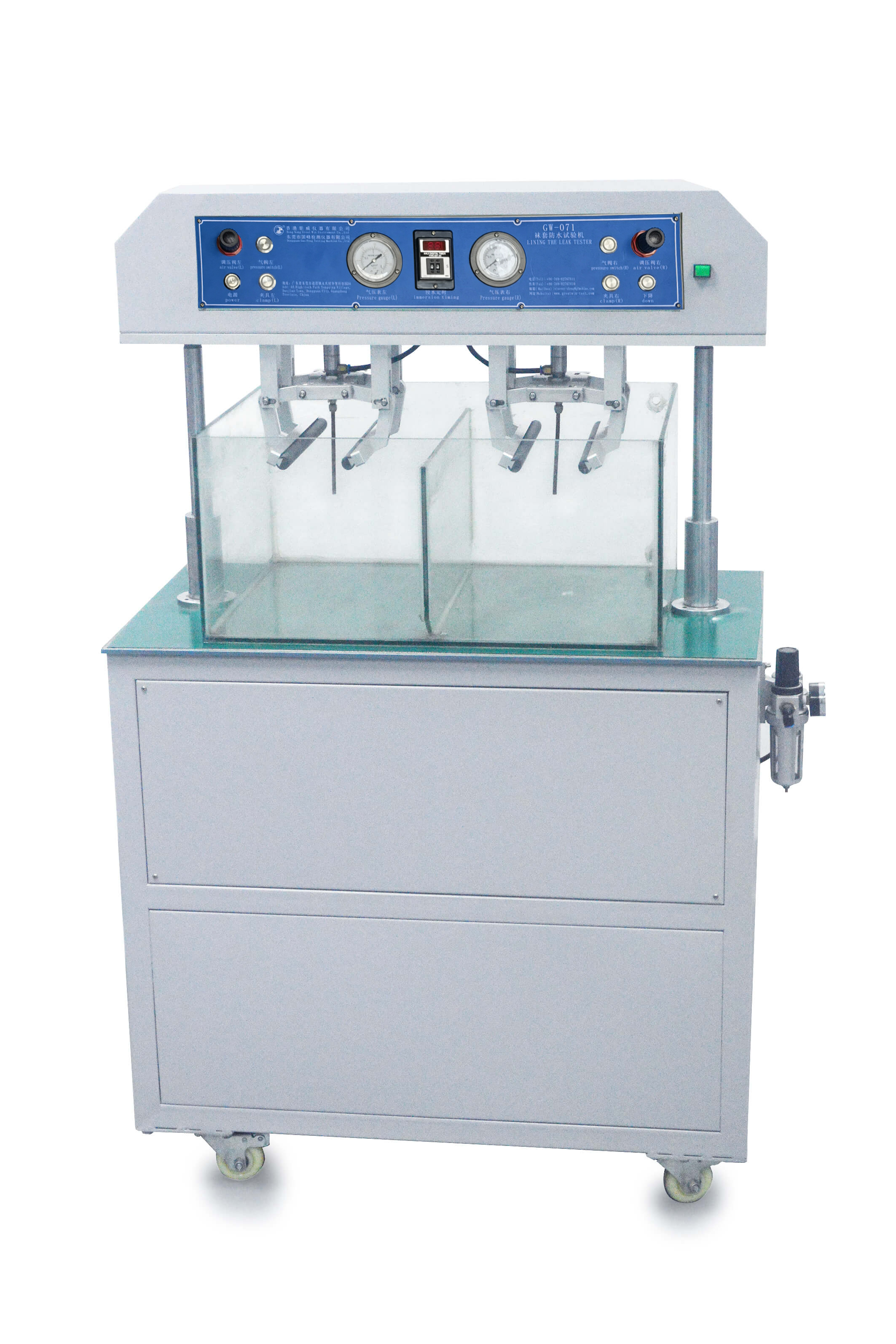

Water penetration and absorption tester

Cutting resistance tester

Perspiration tester

Aging oven

Light discoloration tester

Shrinkage temperature tester

Cracking tester


Test for insole and insock

LED Scale Loupe (for insole thickness test)

Water absorption and desorption tester

Abrasion resistance tester


Test for out sole

Tear strength tester

Abrasion resistance tester

Flexing resistance tester

Hydrolysis resistance tester

Heat contact resistance tester

Oil bath

Elasticity tester




TEST MACHINERY REQUIRED ISO 20344 and   ISO 20345

tests required as per 20345 spec clause apparatus / test   machine Photo
Height of upper 20344 6.2 Steel rule
seat region design 20345 5.2.3 X X
specific ergonomic features whole footwear 20344 5.1 X X
construction whole footwear 20345 5.3.1.1 X X
upper/outsole bond strength whole footwear 20344 5.2 GW-011A   Computer system universal
    tensile testing machine

    With Pliers grips
general toe protection 20345 5.3.2.1 X X
internal length of toe caps 20344 5.3 Toe length meter,also   can test the height

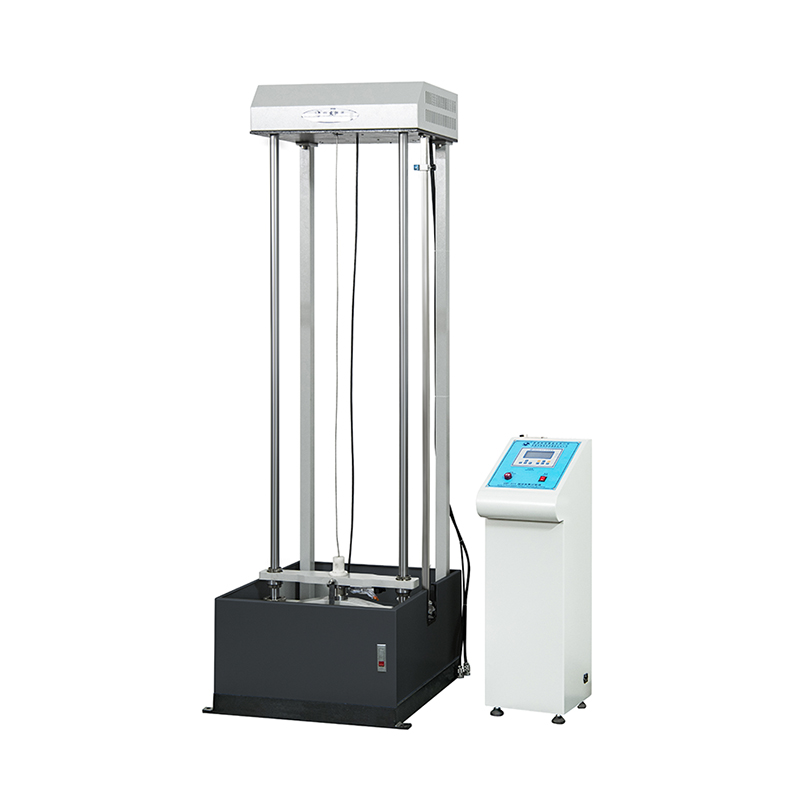

impact resistance of toe cap 20344 5.4 GW-019C Safety   footwear impact testing machine

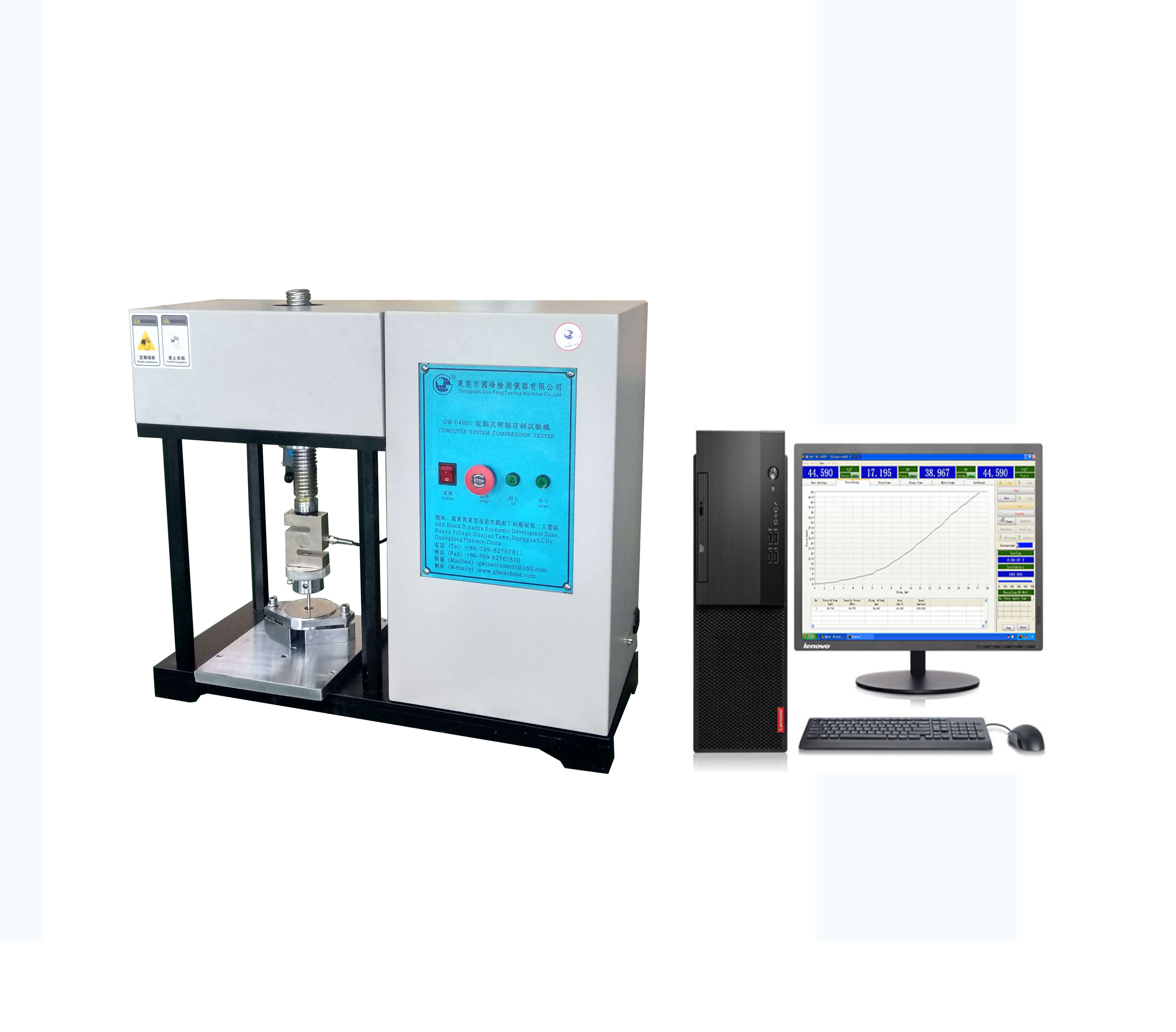

compression resistance of safety footwear 20344 5.5 GW-049B-Safety   footwear compression&puncture testing machine
corrossion resistance of metallic toe cap 20344 5.6.2 GW-032 Salt spray testing machine
slip resistance 20344 5.11 GW-026B Slip resistance testing machine
general upper 20345 5.4.1 Steel rule
tear strength upper 20344 6.3 GW-011A Computer system universal tensile testing machine

ISO 3377-2 Leather tear grips and cutting dies

ISO 4674-1 Pliers grips and cutting dies
tensile properties upper 20344 6.4 GW-011A   Computer system universal tensile testing machine

ISO 3376 190*40  110*25mm Cutting die
water vapour permeability & coefficient 20344 6.6, 6.7, 6.8 GW-038 Water vapor   permeability testing machine
tear strength lining 202344 6.3 GW-011A Computer system universal tensile testing machine

ISO 4674-1 Pliers grips and cutting dies
water vapour permeability & coefficient lining 20344 6.6 6.8 GW-038 Water vapo permeability testing machine
abarasion resistance lining 20344 6.12 GW-031B MARTINDALE abrasion testing machine
abrasion resistance collar 20344 6.12 GW-031B MARTINDALE abrasion testing machine
tear strength (tongue) 20344 6.3 GW-011A Computer system universal
tensile testing machine

ISO 4674-1 Pliers grips and cutting dies
water absorption & desorption insole 20344 7.2 GW-038E Insole absorption tester
abrasion resistance insole 20344 7.3 GW-020A Crock meter
water absorption & desorption insock 20344 7.2 GW-038E Insole absorption tester
cleated area (outsole) 20345 5.8.1.2. Shoe inner size test ruler
cleat height (cleated outsole) 20344 8.1 Shoe inner size test  ruler
thickness (outsole) 20344 8.1.2 GW-126C Rubber thickness gauge
tear strength (outsole) 20344 8.2 GW-011A Computer system universal
tensile testing machine
Cuttomg die 100*15mm

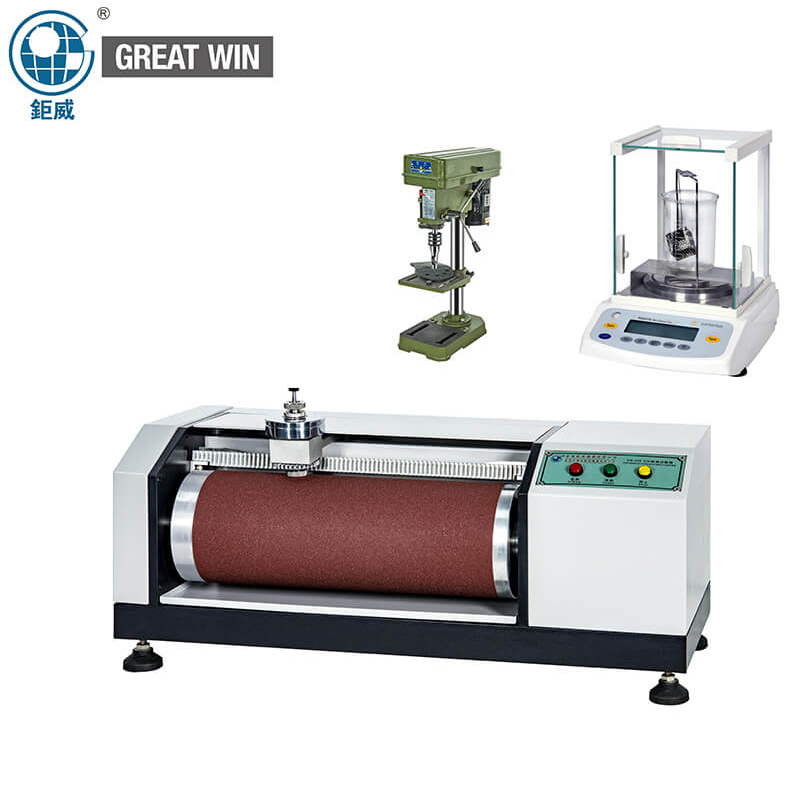

abrasion resistance (outsole) 20344 8.3 GW-008-DIN abrasion resistance testing machine

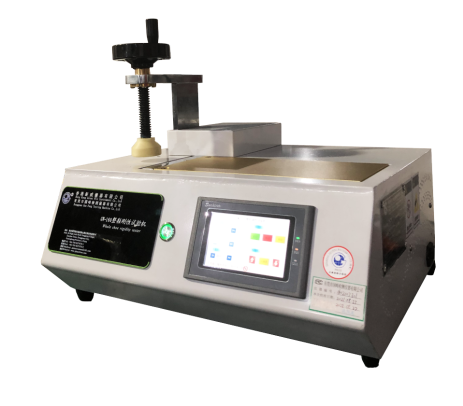

rigity test 20344 8.4 GW-160 Whole shoe rigidity testing machine

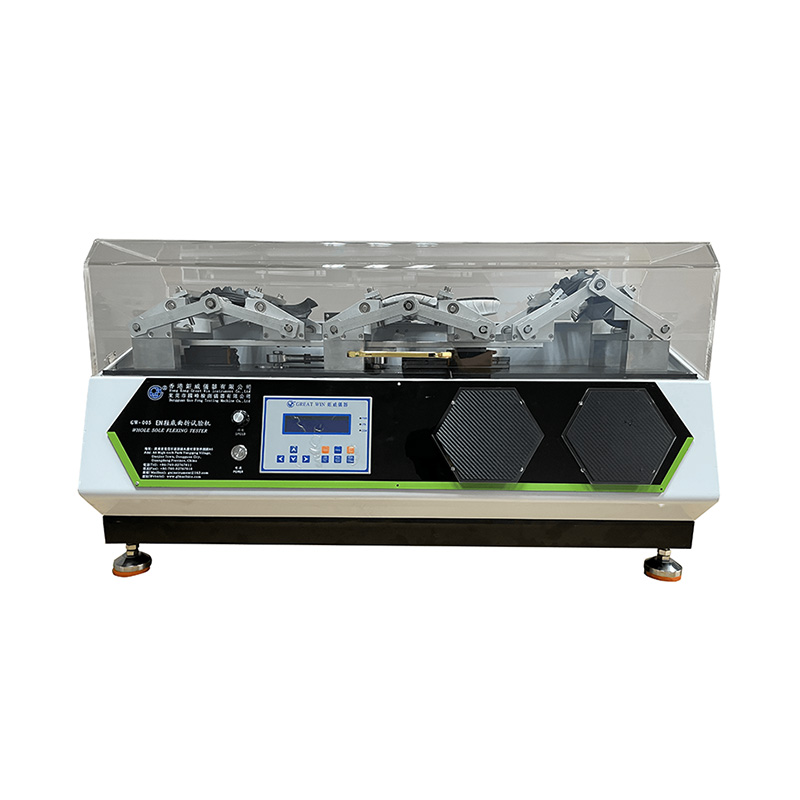

flexing resistance (outsole) 20344 8.4 GW-005  EN Whole sole flexing testing machine
hydrolysis (outsole) 20344 8.5

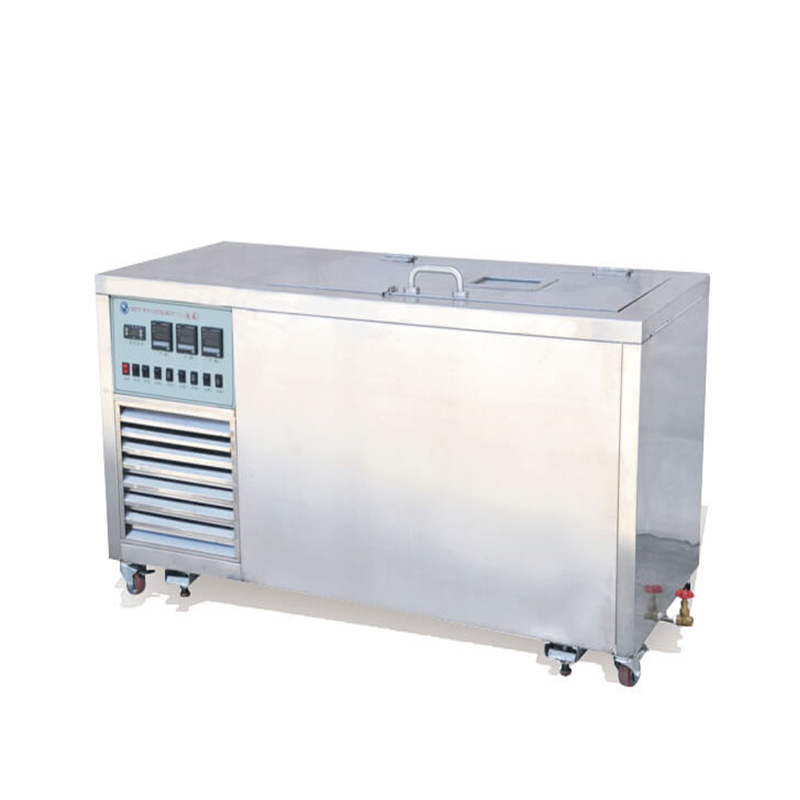

GW-033L Freezing testing machine with ROSS flexing grips




GW-033L
ISO 5423
Ph value 20344 6.9 GW-042 PH Meter
ISO 4045
Chromium (VI) content 20344 6.11 GW-100C   Chrome VI testing machine
 (Computer Type)
IMG_256
ISO 17075-1
antistatic footwear 20344 5.10 GW-023-Anti-static electrical testing machine
enegry absorption 20344 5.14 GW-311-Shoe  heel reciprocating compression
testing machine
resistance to fuel oil 20344  8.6.1, 8.6.2 GW-037 Oil Bath
leather softness tester
GW-056- Leather softness testing machine
