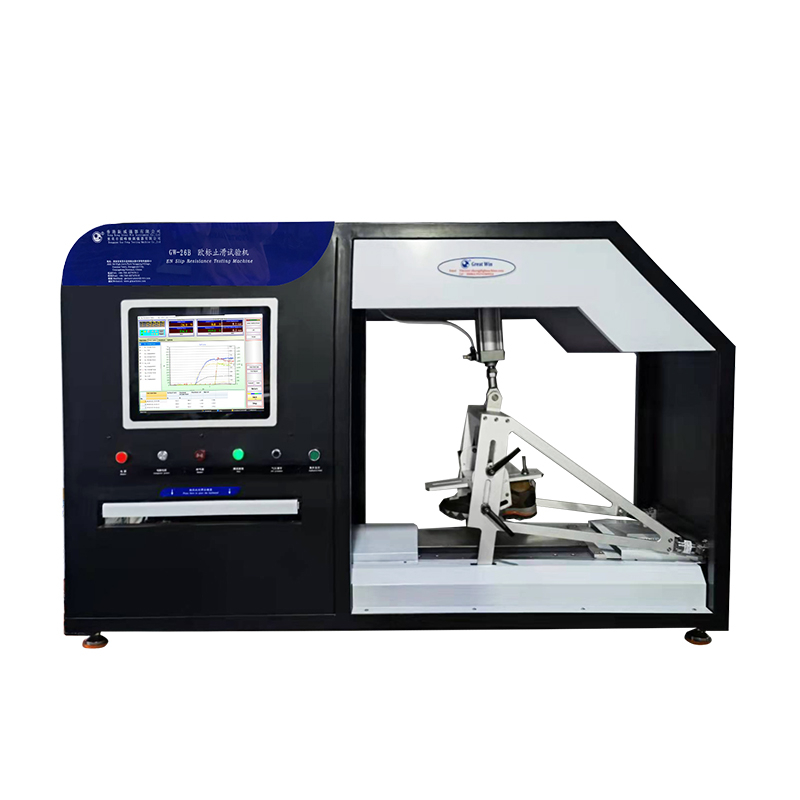

Slip resistance testing machine is used to determine the slip resistance of conventionally soled safety, protective and occupational footwear on different floors (such as ceramic tile, stainless steel or carpet). It can be used for test the SRA、SRB、SRC friction performance .It is not applicable to special purpose footwear containing spikes, metal studs or similar.
GW-026B
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |
Slip resistance testing machine is used to determine the slip resistance of conventionally soled safety, protective and occupational footwear on different floors (such as ceramic tile, stainless steel or carpet). It can be used for test the SRA、SRB、SRC friction performance .It is not applicable to special purpose footwear containing spikes, metal studs or similar.
BRAND | Great Win |
ITEM NO. | GW-026B |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard For
GB/T 28287, SATRA TM144,
EN ISO 13287(ISO-20344 5.11 )
| Technical Specifications |
Max. normal force | 1000N |
Max. horizontal force | 1000N |
Sliding speed | (0.3±0.03)m/s |
Static contact time | 0~5s |
Vertical force sensor | 1.25KN |
Horizontal force sensor | 0.85KN*2 |
Test floor | Compressed ceramic tile floor, stainless steel and carpet |
Power supply | AC220V 50Hz |
Dimensions | 1010×670×1900mm |
Weight | 300kg |

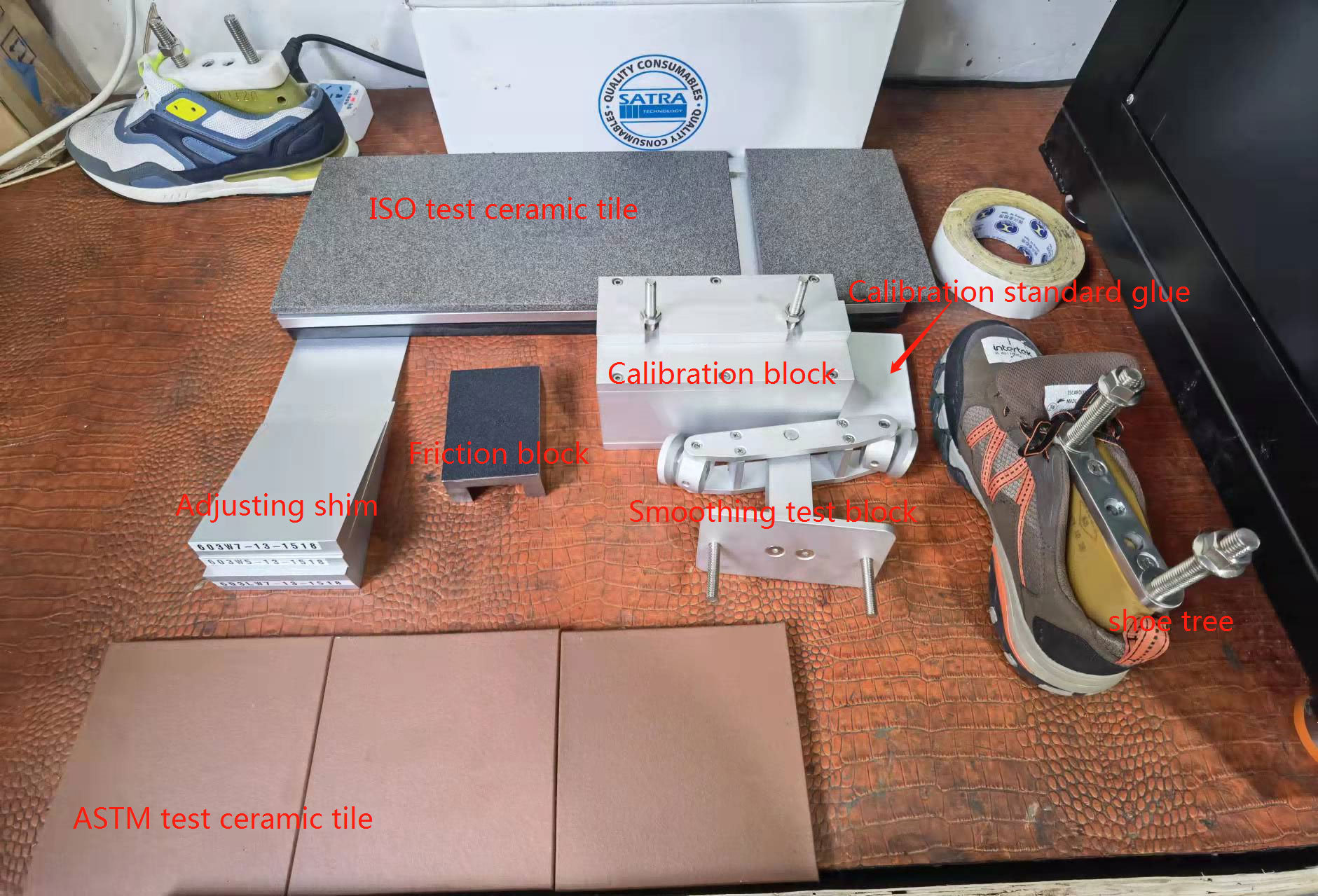

| Attached accessories |
- 7° Wedge angle gauge 2pcs
- Shoe last fixture 2pcs
- Prosthetic foot fixture 7pcs
- 180*90*90mm Calibration rubber fixture 1pc
- Stainless steel plate 1pc
- 100*70mm steel block 1pc
- Power line 1pc
- EN ISO 13287 Pressed ceramic tile floor 1pc
- SATRA TM 144 Pressed ceramic tile floor 1pack(=3pcs)
