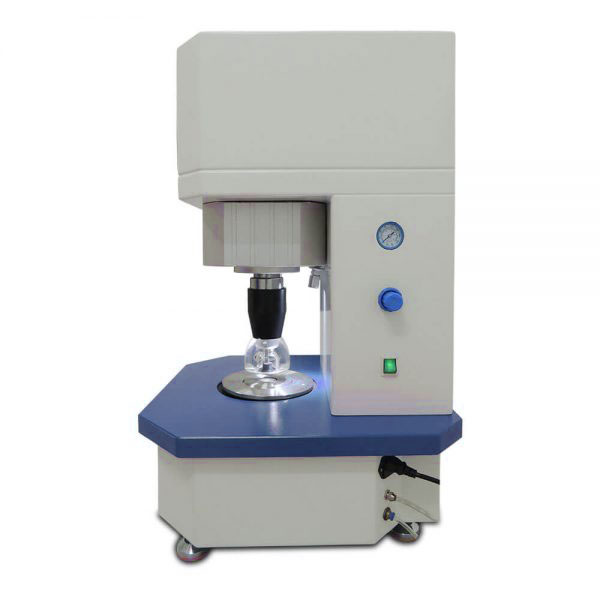

CE Certificate Fabric Pneumatic Bursting Tester

Pneumatic Bursting Tester, to determine the bursting pressure of fabrics using pneumatic test method, including knits, woven fabric, non-woven fabric, laminated fabric, and other craft-made fabric.

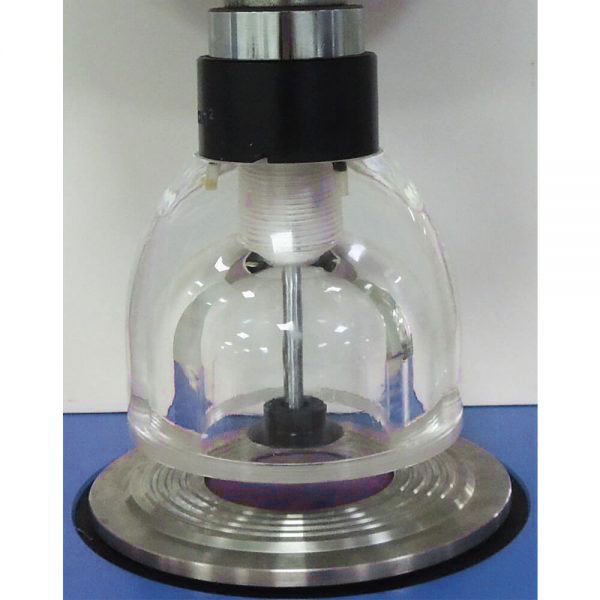

A test specimen is clamped over an expansive diaphragm by a circular clamping ring; increasing compressed air pressure is applied to the underside of the diaphragm, causing distension of the fabric until the test specimen bursts; the bursting strength and distension are determined.

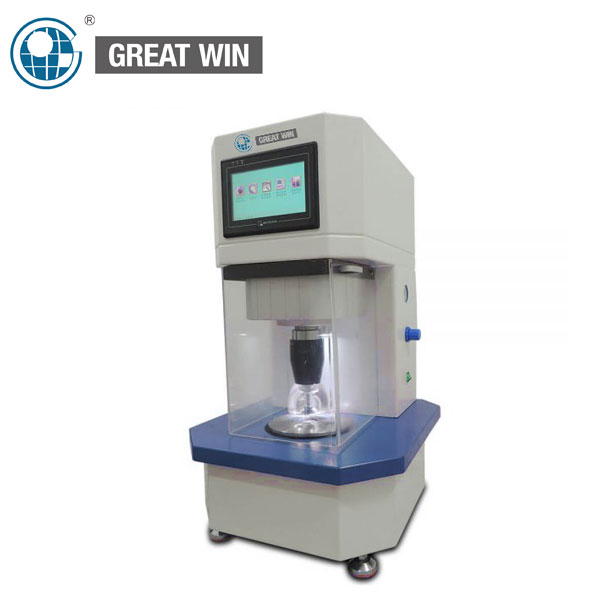

Real-time testing-curve is shown on the Bursting software. The machine can also be controlled easily by the graphics touch-screen.

Standard

ISO 13938-2 IWS TM29 BS-2922 FZ/T 60019

FZ/T 01030 JIS L 1018.6.17 AS2001.2.4 GB/T 7742

Specifications

· Automatic clamping and burst test, automatic calibration, automatic data processing, and test report output.

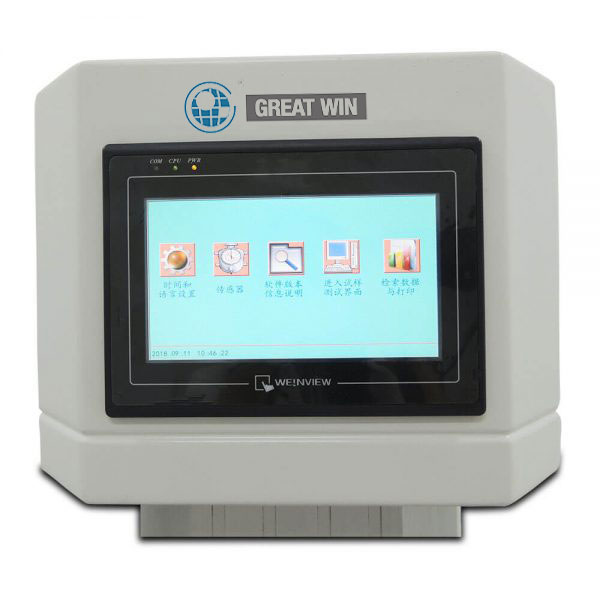

· It can be controlled by its easy to use graphics touch-screen instead of computer

· Bursting pressure up to 1100KPa, accuracy ≤ ±0.2%F•S

· Burst distension up to 70mm

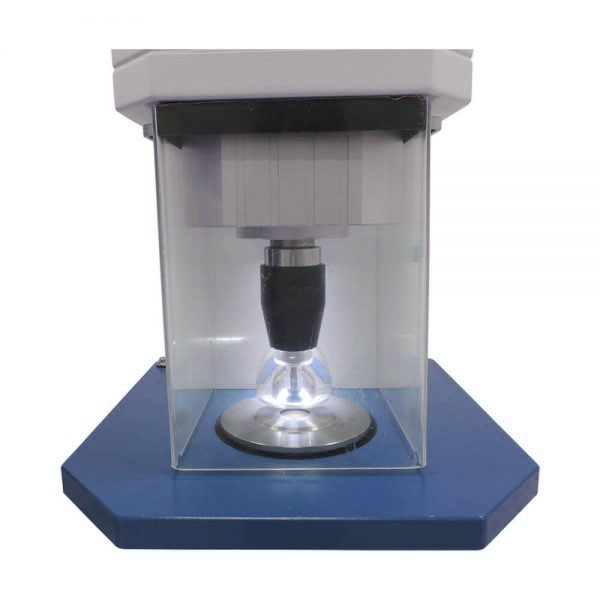

· Equipped with a lamp for clear observation

· The transparent acrylic cover ensures safe operation

· 4 most commonly used test areas are available and are easily shifted

· Test Heads 100, 50, 10, 7.3 cm2 (112.8, 79.8, 35.7, 30.5 mm Dia.)

Features

1: The test time can be changed arbitrarily during the test

2: The test stops and automatically opens the mold

3: All graphics can be set in different units (Ib-in kg-cm N-m dN-m)

4: The software supports traditional Chinese, simplified Chinese, and English

5: Easy to operate, users can automatically test and archive automatically without touching the computer

6: Each control interface including curve, coordinates, background color can be set freely

7: The existing vulcanization curve can be compared with the previous vulcanization curve at the same time or separately, and each curve can be set with different colors for comparison

8: The test data has a variety of query functions, which can be searched by time, date, rubber name, shift, operator, test temperature, and other test conditions

9: The test data is stored in a database, with multiple data export methods, export to, PDF, EXCEL and other document functions

10: With the upper and lower limit qualified value on the setting report, the software automatically judges whether it is qualified

11: Can print all kinds of graphics on a report at the same time

12: Software and hardware automatic detection function, convenient for maintenance and repair

13: The number of data sampling is high, and no important data will be missed

14: High-precision temperature control system to ensure stability and temperature recovery speed

15: Adopt a fixed eccentric wheel structure to provide an extremely stable shear angle to ensure test accuracy

16: The high-precision torque sensor is installed close to the upper mold, and the upper mold cavity measures the torque, and the torque value is accurate and stable

Diaphragms       pack of 10
