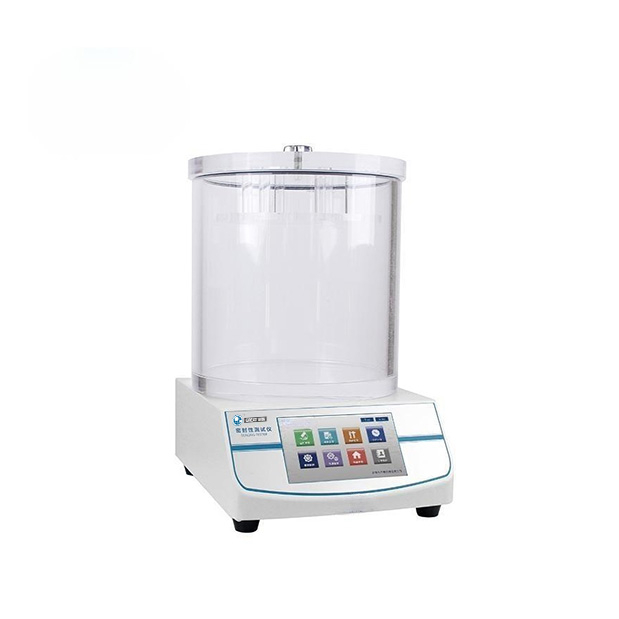

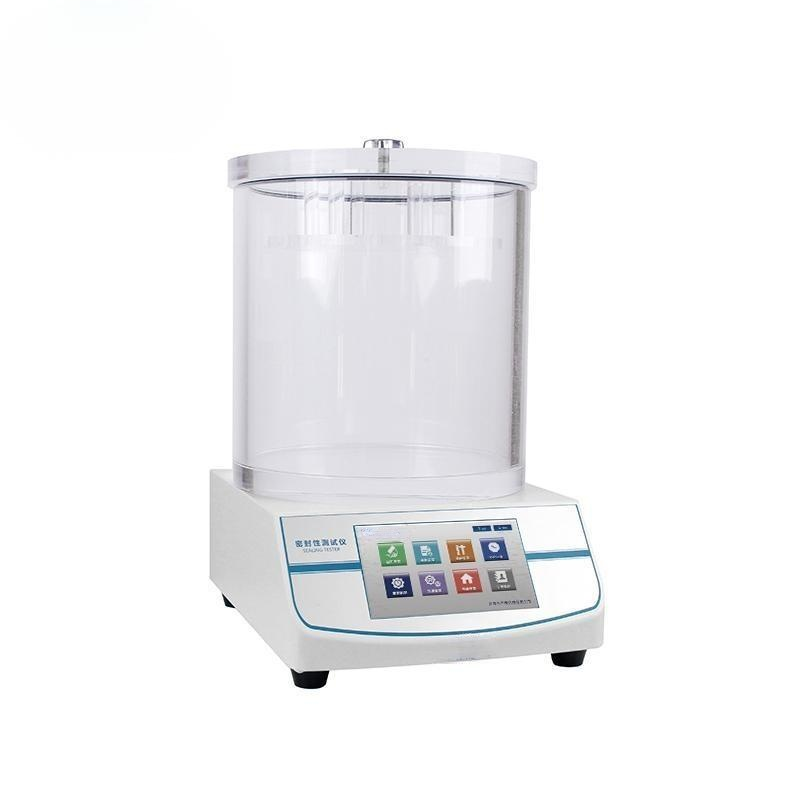

GW-115 Condom package integrity tester conforms to GB / T15171-1994, ASTM D3078 test method standard. It is suitable for the sealing test of product packaging. Through the test, it can effectively compare and evaluate the sealing process and sealing performance of soft packaging. It is an ideal testing instrument for food, plastic soft packaging, wet towel, pharmaceutical, daily chemical, electronic components and other industries.
GW-155
Great Win
9024800000
| Quantity: | |
|---|---|
Brief introduction |
GW-115 Condom package integrity tester conforms to GB / T15171-1994, ASTM D3078 test method standard. It is suitable for the sealing test of product packaging. Through the test, it can effectively compare and evaluate the sealing process and sealing performance of soft packaging. It is an ideal testing instrument for food, plastic soft packaging, wet towel, pharmaceutical, daily chemical, electronic components and other industries.
BRAND | Great Win |
ITEM NO. | GW-155 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Professional Technology:
l The system adopts digital preset test vacuum degree and vacuum holding time to ensure the accuracy of test data.
l It adopts the pneumatic components imported from SMC, with stable and reliable performance.
l Automatic constant pressure air supply further ensures that the test can be carried out under preset vacuum conditions.
l The professional software supports the functions of automatic blowback unloading and automatic end of test to ensure the smooth test process.
l The system is controlled by micro-computer, equipped with LCD and PVC operation panel to facilitate the user's quick test operation and data viewing.
Application Areas:
Basic Application | Used for the overall sealing test of glass bottle, tube, tank and box. |
Used for overall sealing test of plastic bottle, pipe, can and box. | |
Used for sealing test of medical devices. | |
Used for the overall sealing test of metal bottle, tube, can and box. | |
Used for overall sealing test of paper plastic compound bag and box materials. | |
Extended Application | Used for the overall sealing test of medicine bottle, can and box. |
Sealing test of rubber plug. | |
Used for sealing test of electronic components. |
Technical Parameter:
Item Model | WB-001 |
Vacuum degree | 0~-90kpa |
Accuracy | First class |
Effective dimension of vacuum chamber | Φ270mm×210mm(H) |
Φ360mm×585mm(H) | |
Φ460mm×330mm(H) | |
Other sizes can be customized | |
Gas pressure (User self provided) | 0.7mpa |
Air connection | Φ6mm Polyurethane tube |
Outline size | 400 mm*300mm*500mm |
Power | AC 220V 50Hz |
Net weight | 30 kg |
•Standrad For:
GB/T15171,GB 7544-2009,ISO4074:2002,ASTM D3078.
