Custom OEM/ODM UL94 Horizontal & Vertical Flammability Tester

UL94 Horizontal & Vertical Flammability Tester, used in testing labs to check the plastic materials parts’ flammability for ensuring the safety of electronic devices or appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.
  • GW- 328
  • Great Win
  • 9024800000
Availability:
Quantity:
Brief introduction

UL94 Horizontal & Vertical Flammability Tester, used in testing labs to check the plastic materials parts’ flammability for ensuring the safety of electronic devices or appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.


BRAND

Great Win

ITEM NO.

GW- 328

ORDER(MOQ)

1

PAYMENT

TT OR L/C

PRODUCT ORIGIN

China

SHIPPING PORT

Shenzhen Port

LEAD TIME

In stock, 7days Fast Delivery


Specifications

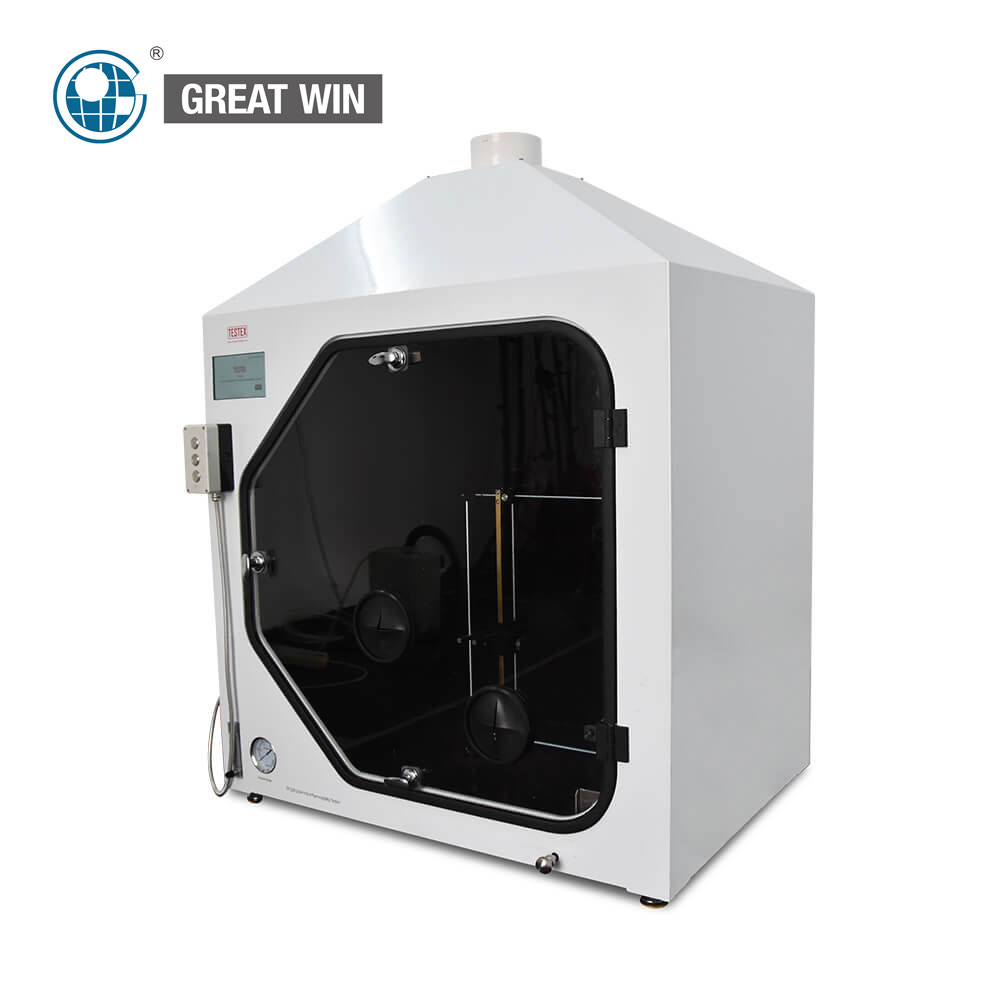

· A bench mounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.

· Large door and window made from toughened safety glass giving a generous view of the specimen during a test.

· Specimen holders.214

· Fully adjustable horizontal and vertical specimen supports.

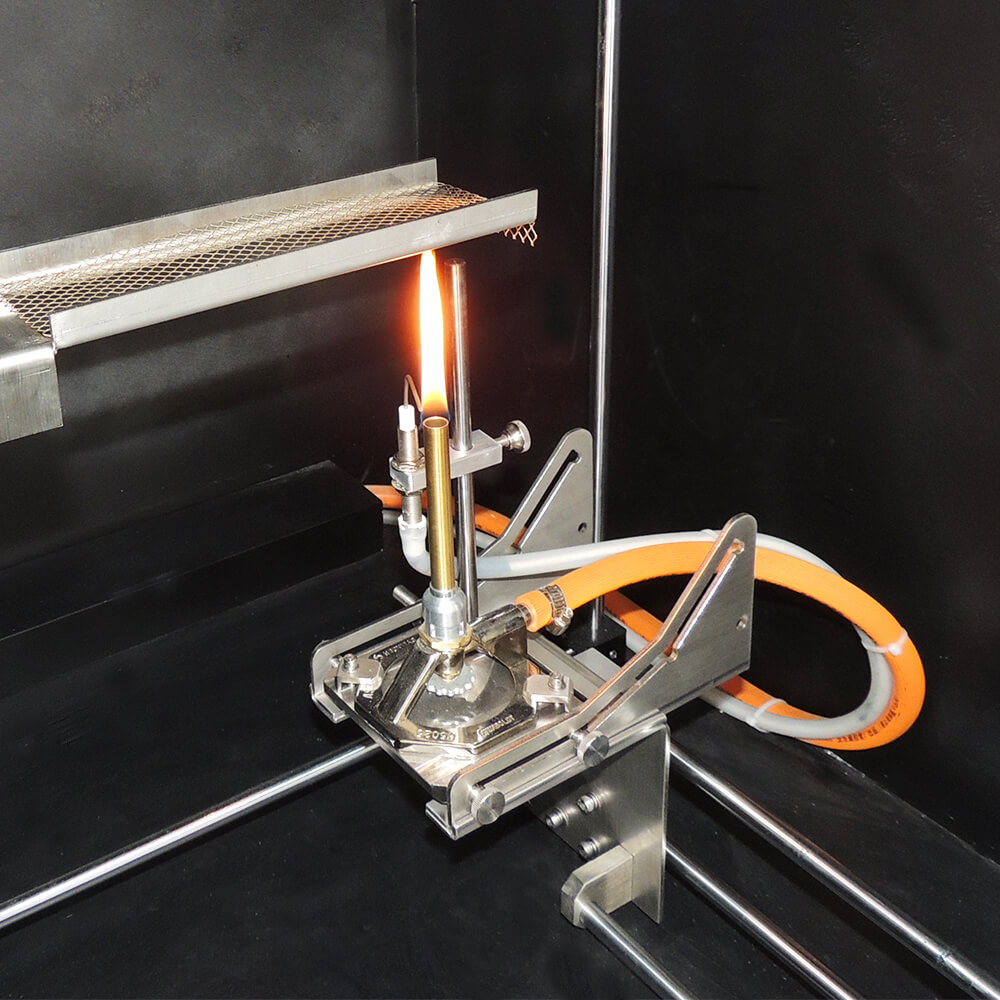

· A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.

· Two access ports enabling easy entry to the chamber for movement of the burner and specimen.

· A burner wing tip.

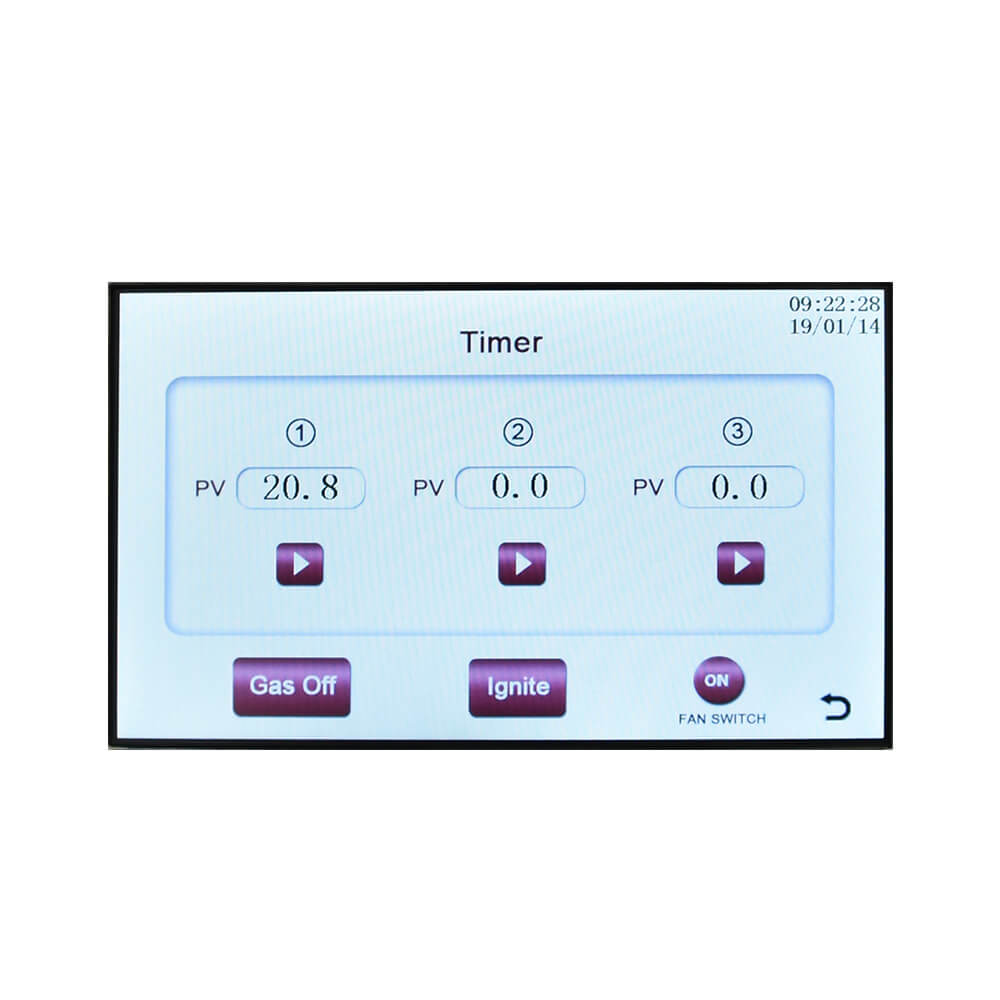

· Three digital test duration timers for accurate but simplified operation


Standards

UL HB UL 94 V0 UL 94 V1 UL 94 V2 UL 94 5VA

UL 94 5VB UL 94 VTM-0 UL 94 VTM-1 UL 94 VTM-2 UL 94 HF-1

UL 94 HF-2 UL 94 HBF IEC 60695-11-10 IEC 60707 ISO 1210

ISO 9770 ISO 9772 ISO 9773 GB/T 2408 GB/T 8332



Features

· Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.

· Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.

· Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.

· The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.


Technical specification


Weight


180 Kg


Power


220/110 V         50/60 Hz



Dimensions

1200 x 600 x 1400 mm (L x W x H)


Application Industry

All kinds of industries like

Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
