GW-143
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |

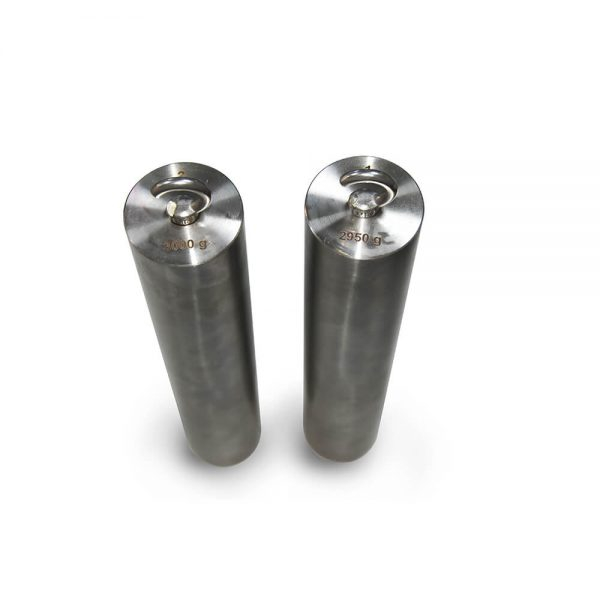

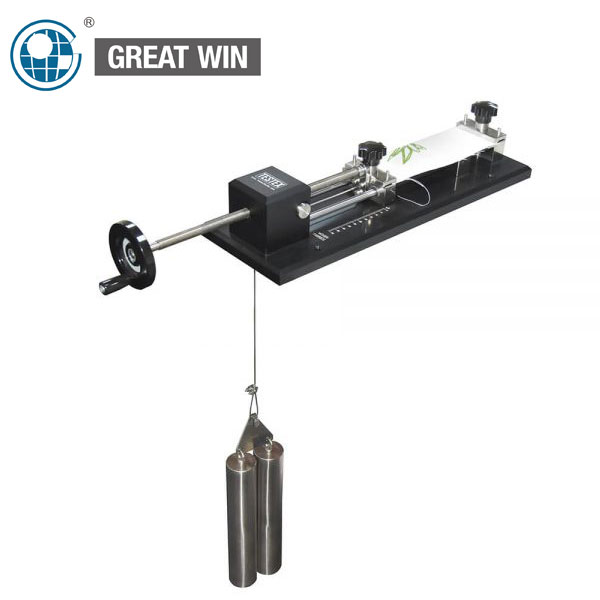

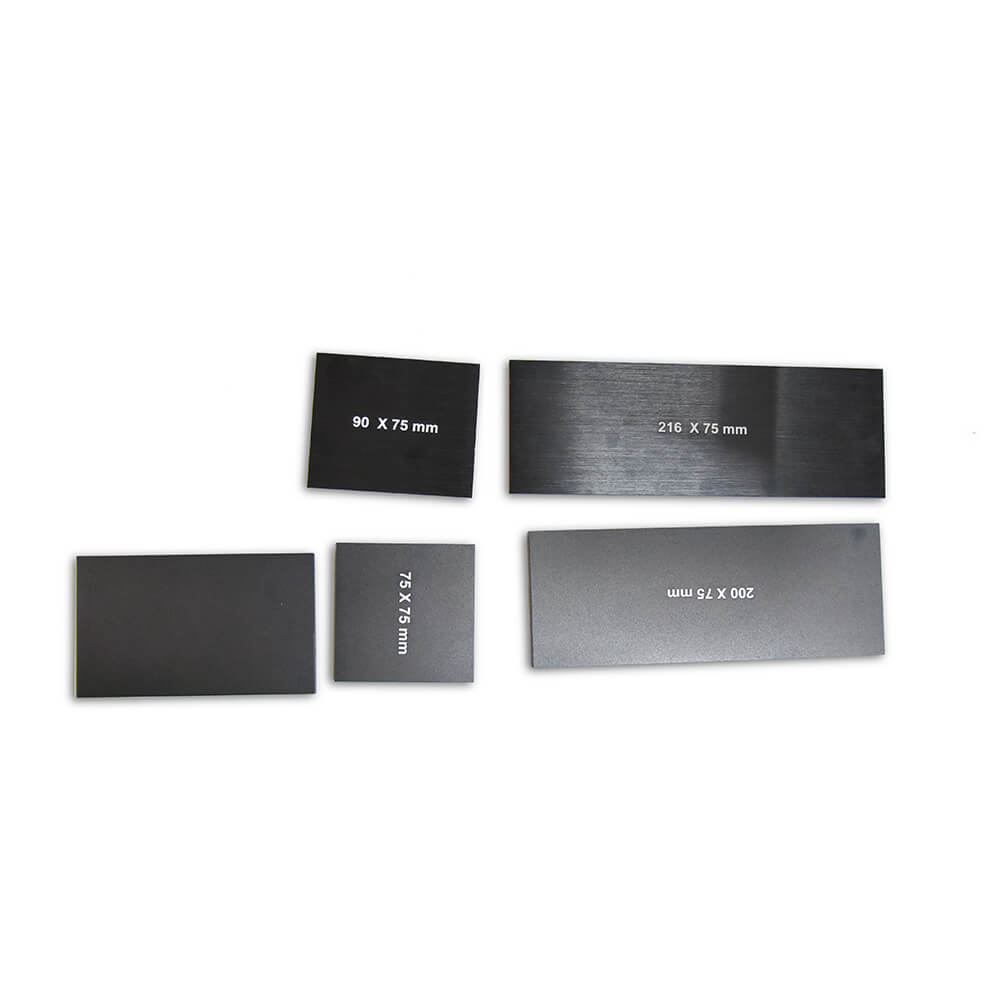

Fryma Extension Tester, to simply and economically determine the stretch and recovery of textile fabrics, both knitted and woven. The apparatus consists of a loading frame with clamps and a screw tensioning device, two 3kg loading weights and sample cutting templates.

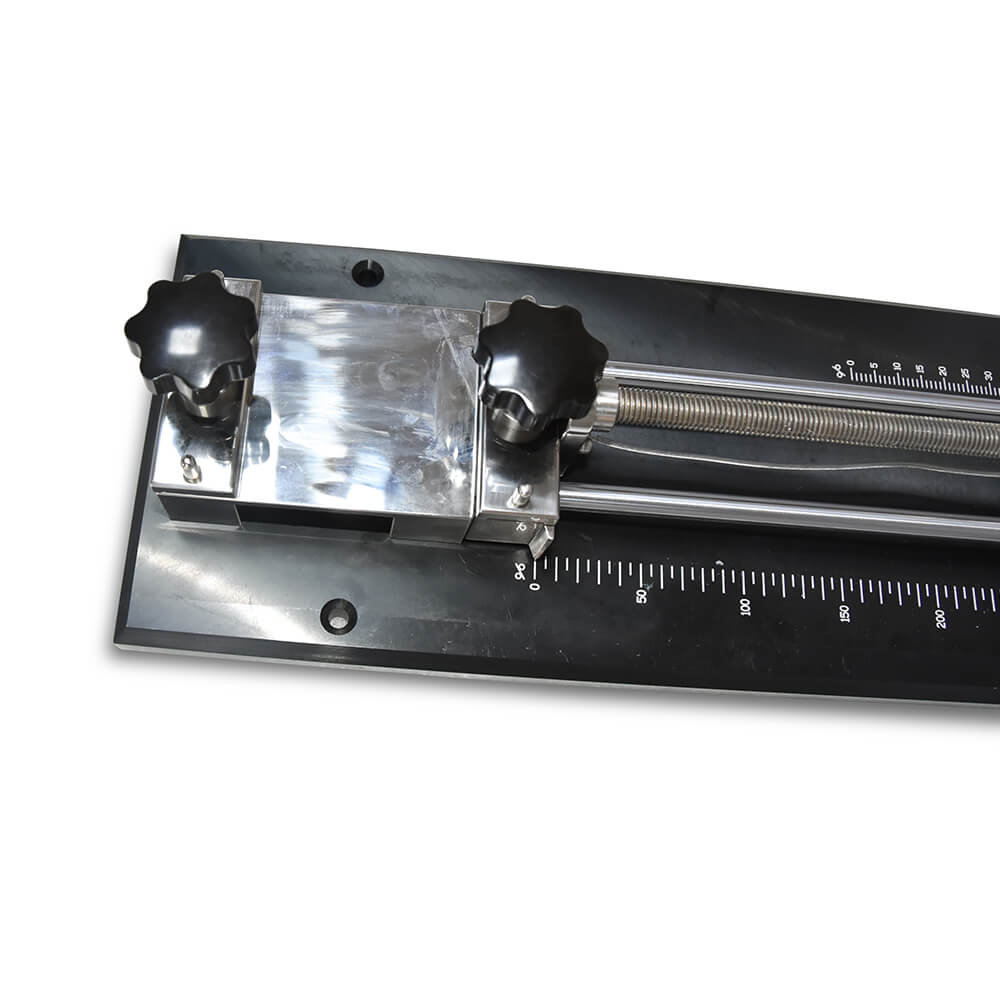

Clamp the test sample. By rotating the shaft in the back anti-clockwise, the moving clamp is moved back to stretch the sample, so the stretch rate can be read directly on the scale, and both knitted fabrics and woven fabrics scales can be read. By pressing the knob on the right side, the moving clamp can be returned back to initial position quickly
BRAND | Great Win |
ITEM NO. | GW-143 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard
BS 4294
Specifications
· Loading weights 3 kg x 2 pcs
· Stretch rate of knitted 50 %
· Stretch rate of Woven 300 %
Features
1: The test time can be changed arbitrarily during the test
2: The test stops and automatically opens the mold
3: All graphics can be set in different units (Ib-in kg-cm N-m dN-m)
4: The software supports traditional Chinese, simplified Chinese, and English
5: Easy to operate, users can automatically test and archive automatically without touching the computer
6: Each control interface including curve, coordinates, background color can be set freely
7: The existing vulcanization curve can be compared with the previous vulcanization curve at the same time or separately, and each curve can be set with different colors for comparison
8: The test data has a variety of query functions, which can be searched by time, date, rubber name, shift, operator, test temperature, and other test conditions
9: The test data is stored in a database, with multiple data export methods, export to, PDF, EXCEL and other document functions
10: With the upper and lower limit qualified value on the setting report, the software automatically judges whether it is qualified
11: Can print all kinds of graphics on a report at the same time
12: Software and hardware automatic detection function, convenient for maintenance and repair
13: The number of data sampling is high, and no important data will be missed
14: High-precision temperature control system to ensure stability and temperature recovery speed
15: Adopt a fixed eccentric wheel structure to provide an extremely stable shear angle to ensure test accuracy
16: The high-precision torque sensor is installed close to the upper mold, and the upper mold cavity measures the torque, and the torque value is accurate and stable
| Technical specification |
Weight | 35 Kg |
Dimensions | 360x170x170mm (L x W x H) |
