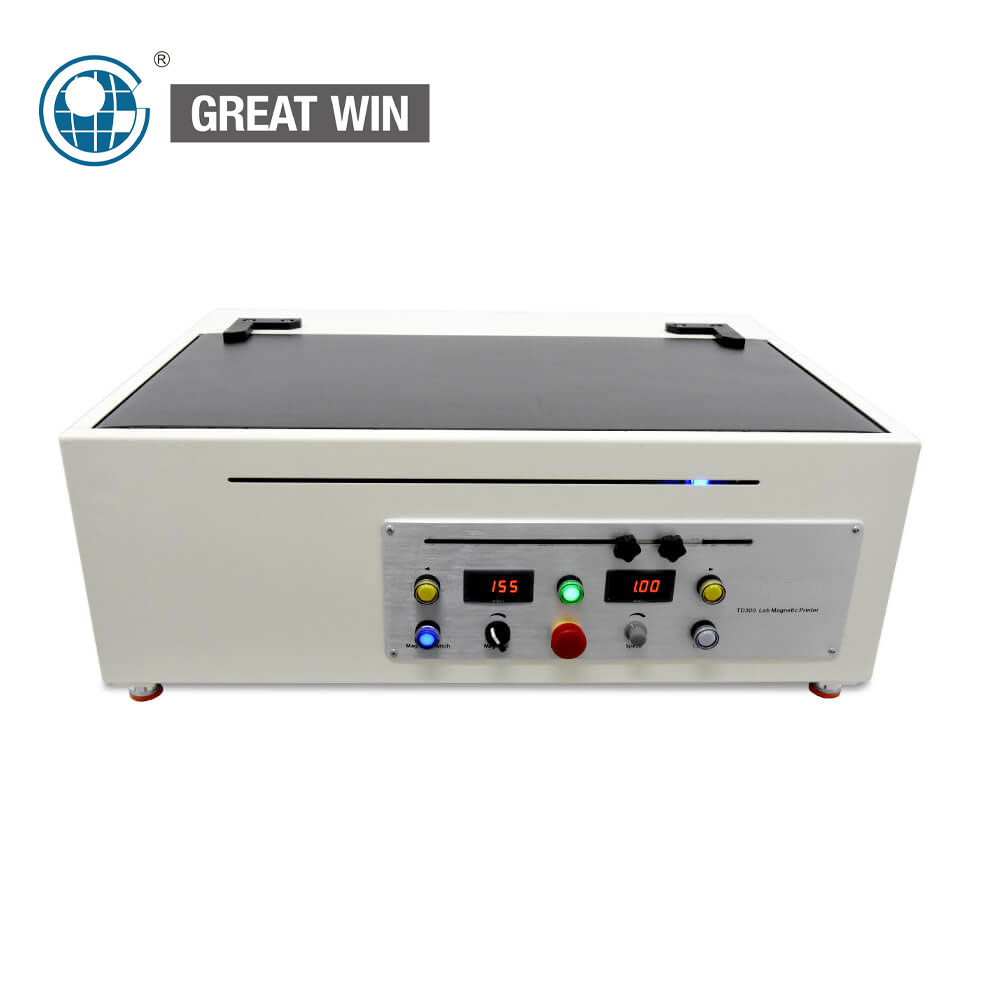

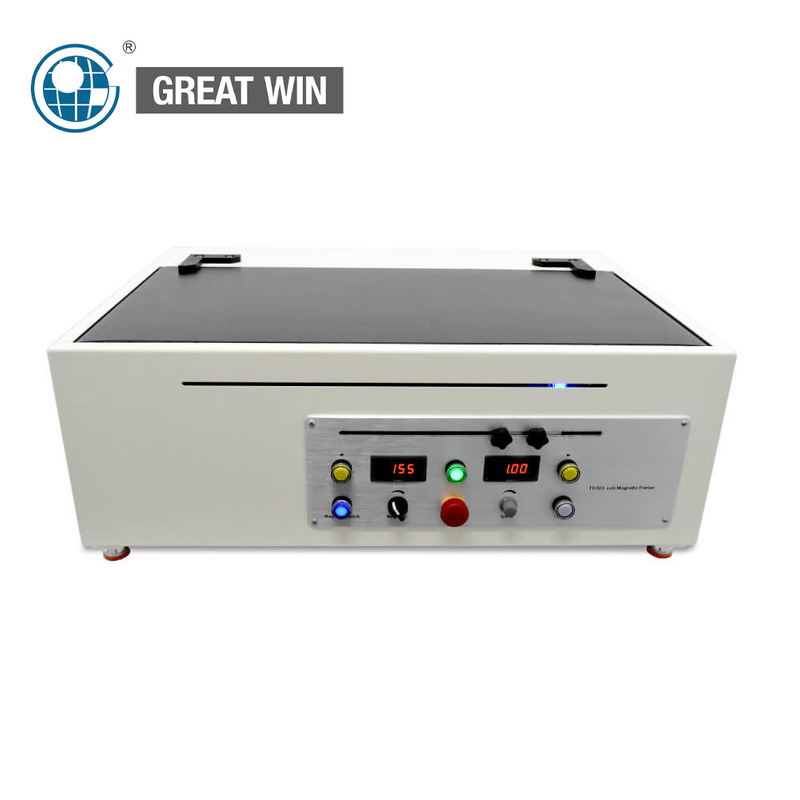

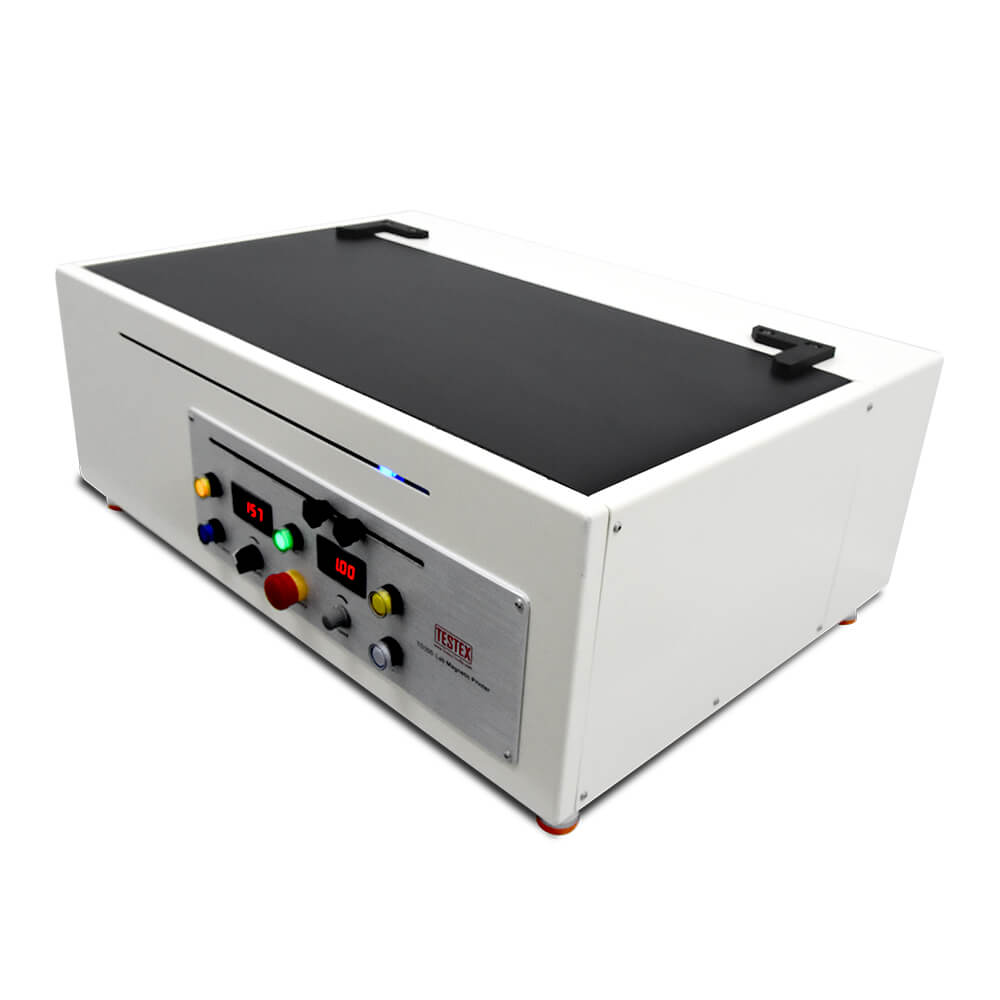

Factory Wholesale Lab Magnetic Printer (Lab Printing Table)

Lab Magnetic Printer (Lab Printing Table) is magnetic printing machine with printing area of 500×350mm, which is for technology experiment in various natural and synthetic fabric in lab.

A thin roller driven by a magnetic block rolling on the silk-screen, printing pressure is displayed digitally and adjustable.

Switzerland Habasit printing belt, Japan Panasonic Frequency conversion, Germany linear slide bearing, China Taiwan Chen-bang Gear-motor, PLC controlled.

Specifications

· Printing area: 500 x 350mm

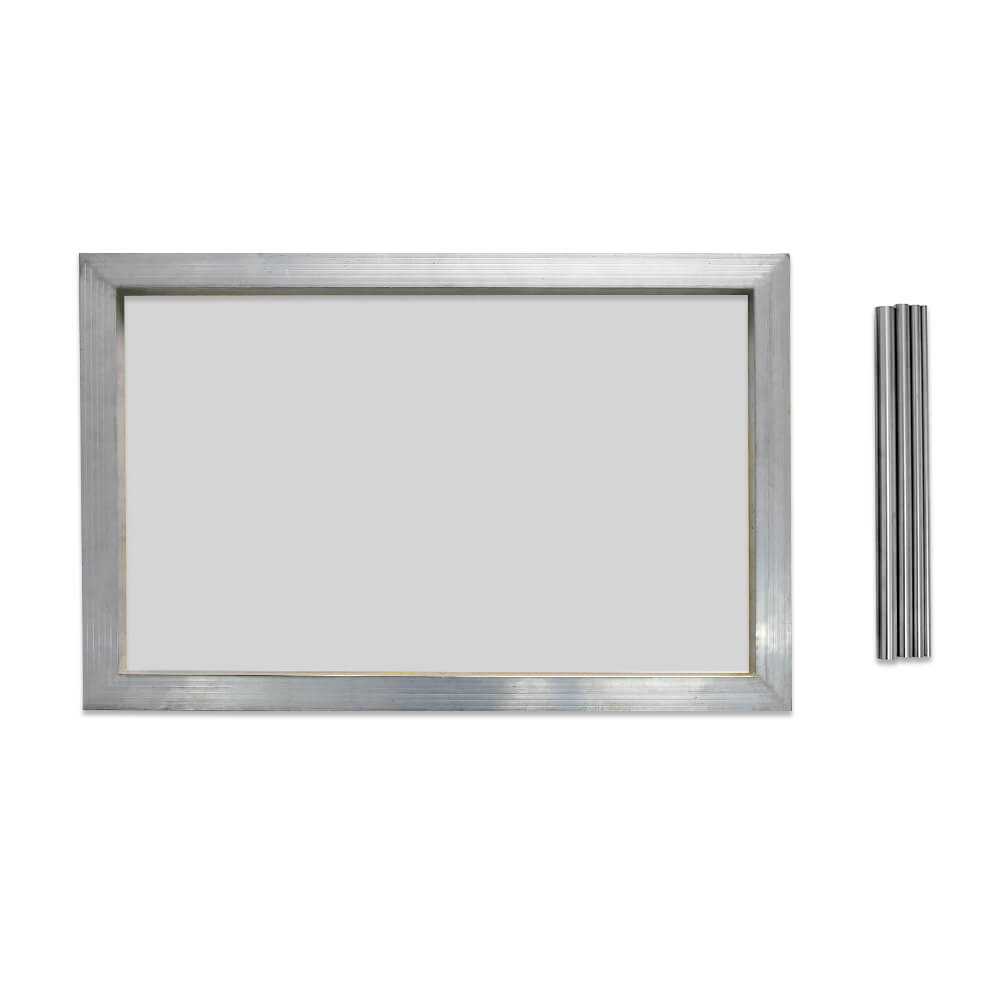

· Screen frame size: 650 x 480mm

· Magnetic stick: Dia. 8, 12, 16, 20, 25mm, 350mm in length.(Each machine equipped with 1 Dia. 20mm magnetic stick only)

· Drive mode: Motor – gear box – toothed belt – magnetic block

· Operation mode: Running towards the left / right then automatic stop; to and fro.

· Speed control: Frequency conversion adjusts speed, digital display, 0 ~ 7 MPM

· Magnetic Control: Adjustable magnetic force, 10 steps, digital display

·

Features

· Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.

· Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.

· Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.

· The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.

All kinds of industries like

Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
