GW-413
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |

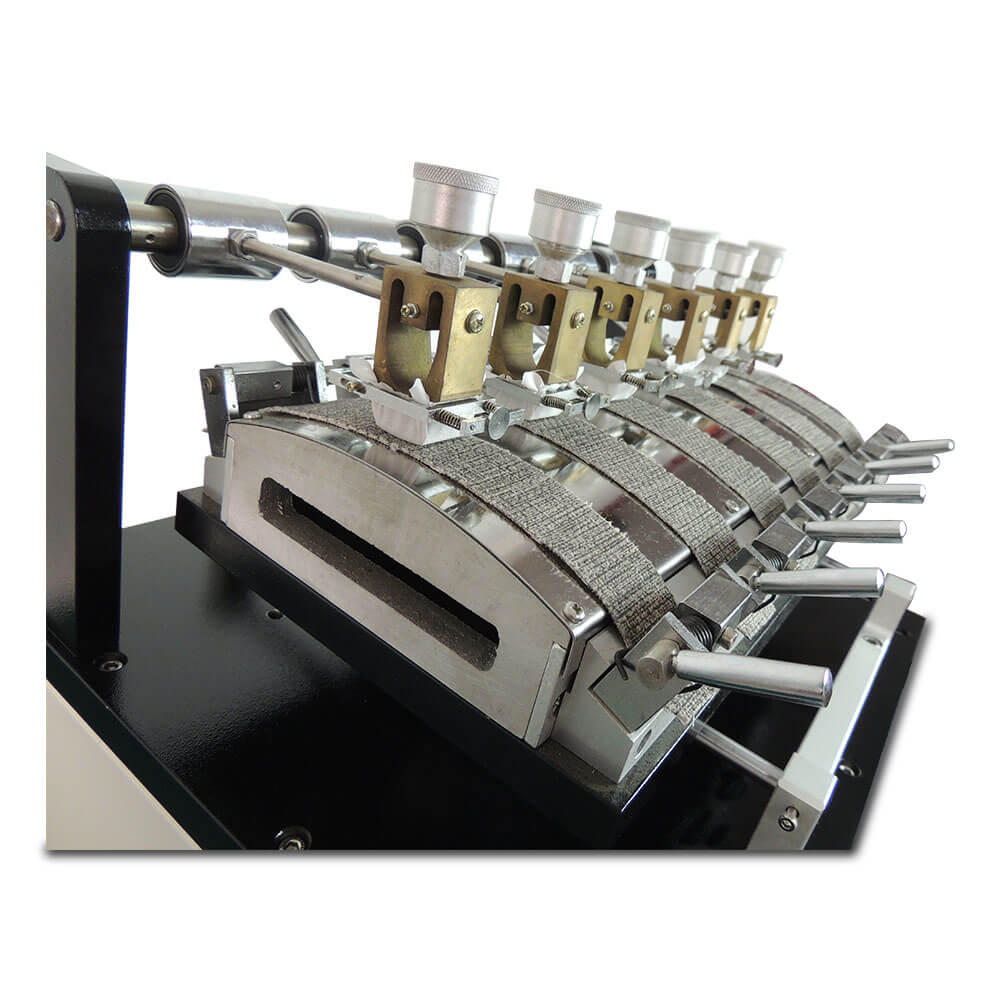

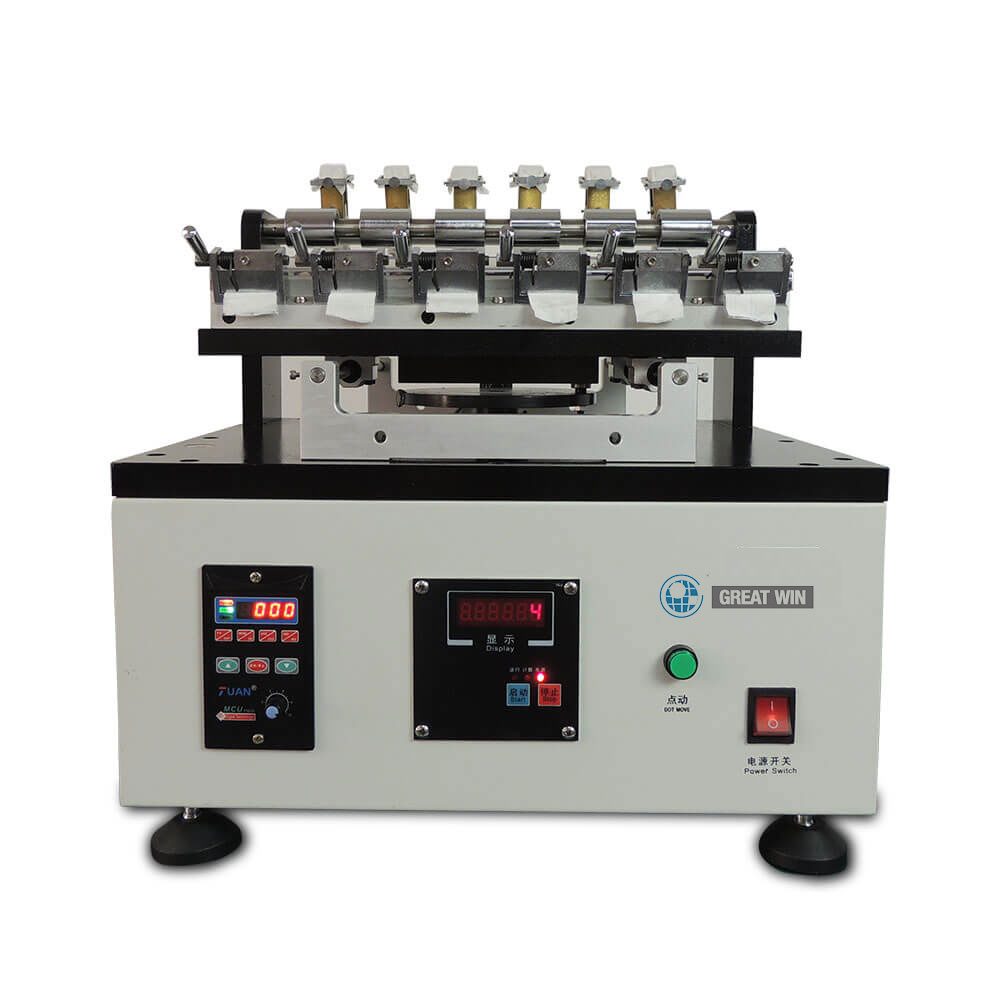

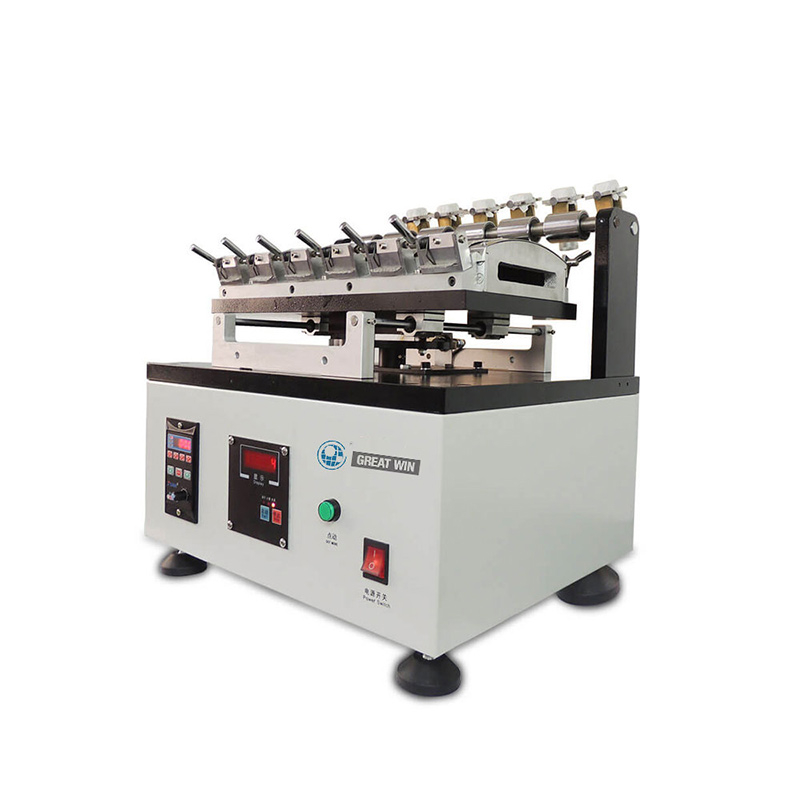

Rubbing fastness (Gakushin) tester for JIS standards, for evaluating a material’s resistance to rubbing motion. Unit is a six station, benchtop machine which includes clamps for sample attachment to moving platen and clams for weighted rubbing arm for attachment of rubbing material.
Cycle counter automatically stops machine at the end of test cycles. Test samples are visually evaluated. Includes two sets of test heads (6 heads each set) weighing 200g and 500g each, complete set of weights (6 each) of 100g, 300g, 400g and 800g which fit either test head. Each test arm is counterbalanced to offset arm weight. Suitable for dry and wet rubbing tests.
BRAND | Great Win |
ITEM NO. | GW-413 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard
JIS 10801 JIS 0823 JIS 0823 JIS 1084
TR 369B CNS 1499
Specifications
· Work station: 6
· pressure applied on rubbing finger: 2N
· Travel length: 100 mm.
· Travel speed: 30 cpm
· Specimen: 220 x 30mm
· Counter: 1-999,999 times, automatically stops
Features
1: The test time can be changed arbitrarily during the test
2: The test stops and automatically opens the mold
3: All graphics can be set in different units (Ib-in kg-cm N-m dN-m)
4: The software supports traditional Chinese, simplified Chinese, and English
5: Easy to operate, users can automatically test and archive automatically without touching the computer
6: Each control interface including curve, coordinates, background color can be set freely
7: The existing vulcanization curve can be compared with the previous vulcanization curve at the same time or separately, and each curve can be set with different colors for comparison
8: The test data has a variety of query functions, which can be searched by time, date, rubber name, shift, operator, test temperature, and other test conditions
9: The test data is stored in a database, with multiple data export methods, export to, PDF, EXCEL and other document functions
10: With the upper and lower limit qualified value on the setting report, the software automatically judges whether it is qualified
11: Can print all kinds of graphics on a report at the same time
12: Software and hardware automatic detection function, convenient for maintenance and repair
13: The number of data sampling is high, and no important data will be missed
14: High-precision temperature control system to ensure stability and temperature recovery speed
15: Adopt a fixed eccentric wheel structure to provide an extremely stable shear angle to ensure test accuracy
16: The high-precision torque sensor is installed close to the upper mold, and the upper mold cavity measures the torque, and the torque value is accurate and stable
| Technical specification |
Weight | 75 Kg |
Power | 220/110 V 50/60 Hz 70W |
Dimensions | 560 x 550 x540 mm (L x W x H) |
