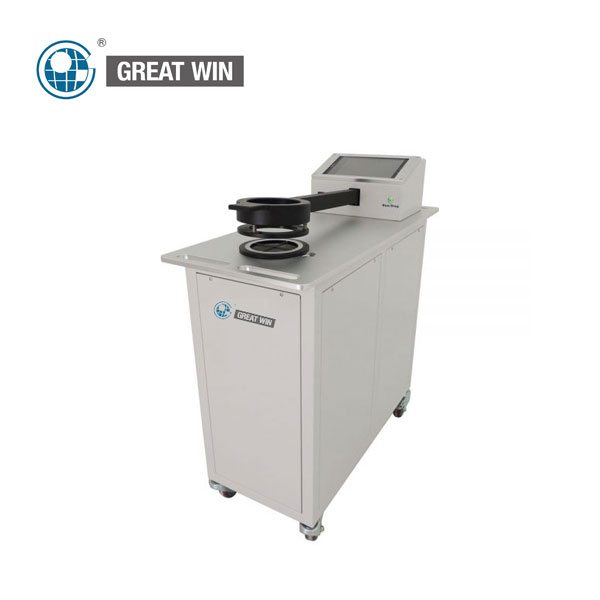

GW-164E
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |
BRAND | Great Win |
ITEM NO. | GW-164E |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Specifications
·

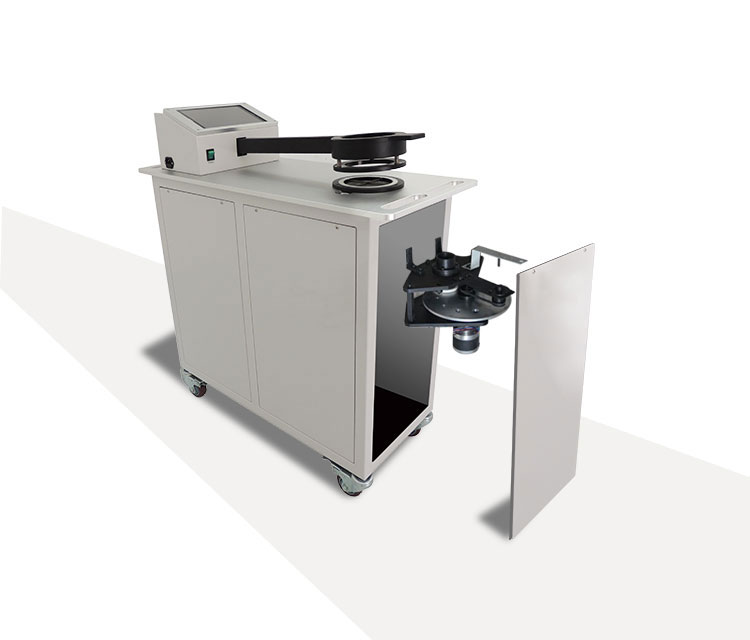

Nozzles Changing | Automatic |
Air Permeability Measuring Range Under 20cm2 | 1~10000 mm/s |

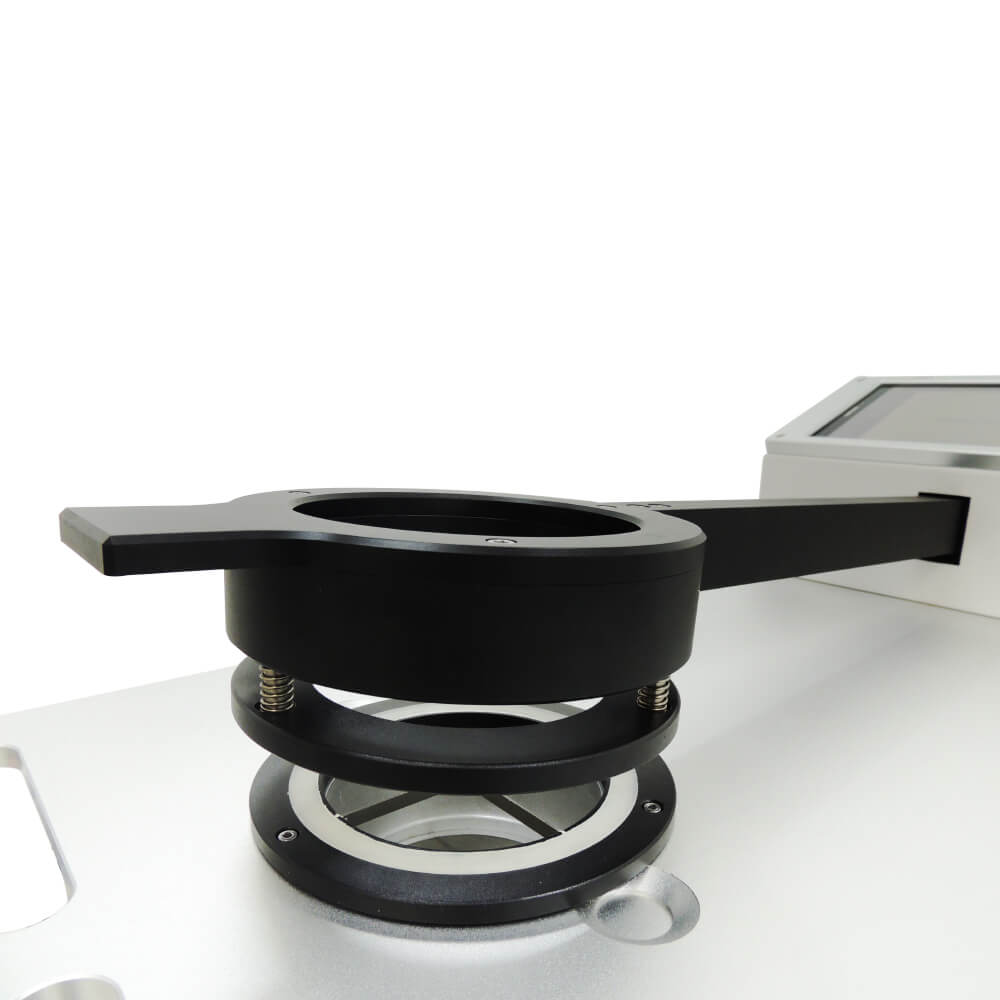

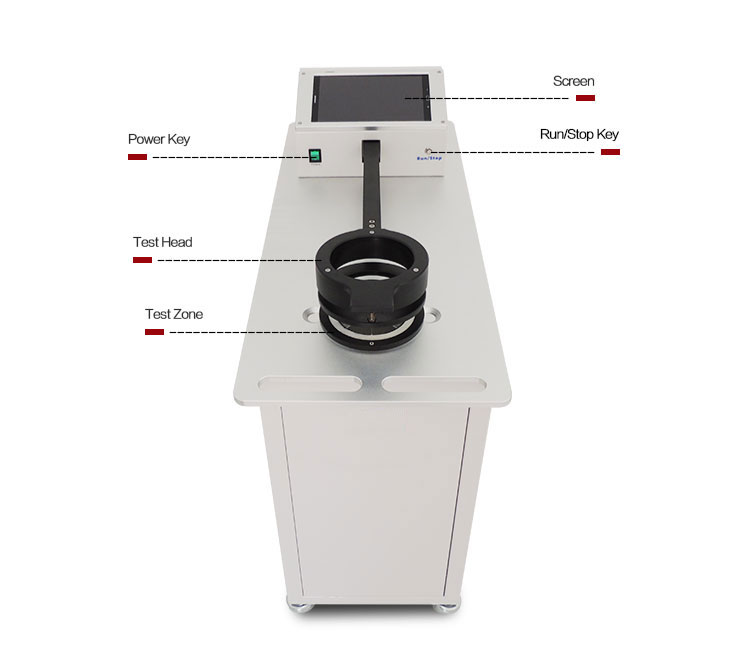

Test Heads | 20cm2 |
Sample Clamping | Manual |
Test Pressure | 10 ~ 2,500 Pa |
Thickness Range of Specimen | 0 ~ 12mm |
Measuring Accuracy | <+/-2% |
Units (can be shifted) | mm/s, ft3/ft2/min, cfm, cm3/cm2/s, l/m2/s, l/dm2/min, m3/m2/min, m3/m2/h, dm3/s, L/s, L/min, m3/h, ft3/min |
Compressed Air | No need |
Mini-Printer | No |

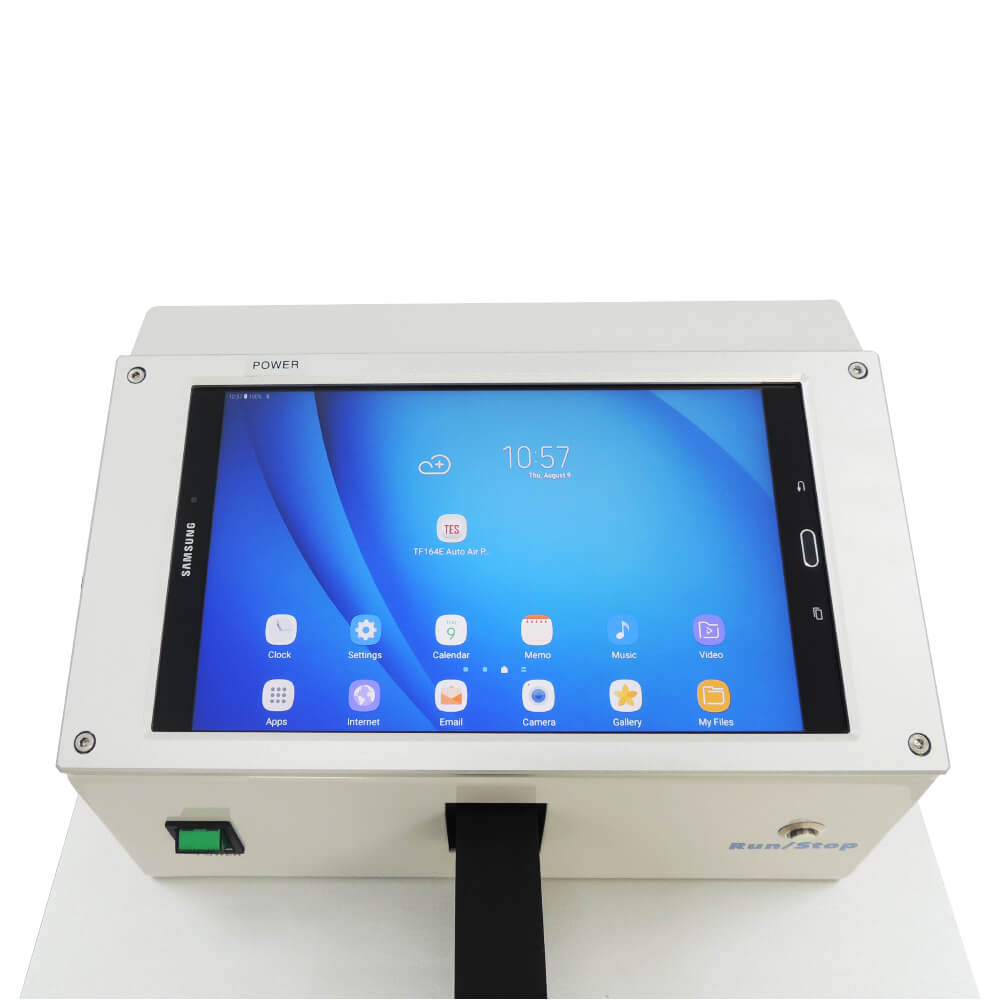

Screen | Samsung Galaxy Tab2 tablet PC |
Calibration Plate | Yes |
Weight | 110 Kg |
Dimensions | 400 x 920 x 1200 mm (L x W x H) |
Power | 220/110 V 50/60 Hz |
Features
1: The test time can be changed arbitrarily during the test
2: The test stops and automatically opens the mold
3: All graphics can be set in different units (Ib-in kg-cm N-m dN-m)
4: The software supports traditional Chinese, simplified Chinese, and English
5: Easy to operate, users can automatically test and archive automatically without touching the computer
6: Each control interface including curve, coordinates, background color can be set freely
7: The existing vulcanization curve can be compared with the previous vulcanization curve at the same time or separately, and each curve can be set with different colors for comparison
8: The test data has a variety of query functions, which can be searched by time, date, rubber name, shift, operator, test temperature, and other test conditions
9: The test data is stored in a database, with multiple data export methods, export to, PDF, EXCEL and other document functions
10: With the upper and lower limit qualified value on the setting report, the software automatically judges whether it is qualified
11: Can print all kinds of graphics on a report at the same time
12: Software and hardware automatic detection function, convenient for maintenance and repair
13: The number of data sampling is high, and no important data will be missed
14: High-precision temperature control system to ensure stability and temperature recovery speed
15: Adopt a fixed eccentric wheel structure to provide an extremely stable shear angle to ensure test accuracy
16: The high-precision torque sensor is installed close to the upper mold, and the upper mold cavity measures the torque, and the torque value is accurate and stable
| Technical specification |
Pressure Range | 10~2500 Pa |
Measuring Accuracy | < +/-2% |
Units | 13 units can be shifted: |
| Thickness Range of Specimen | 0~12 mm |
Network Connecting | WIFI |
Screen | Samsung tablet PC |
