GW- 119
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |

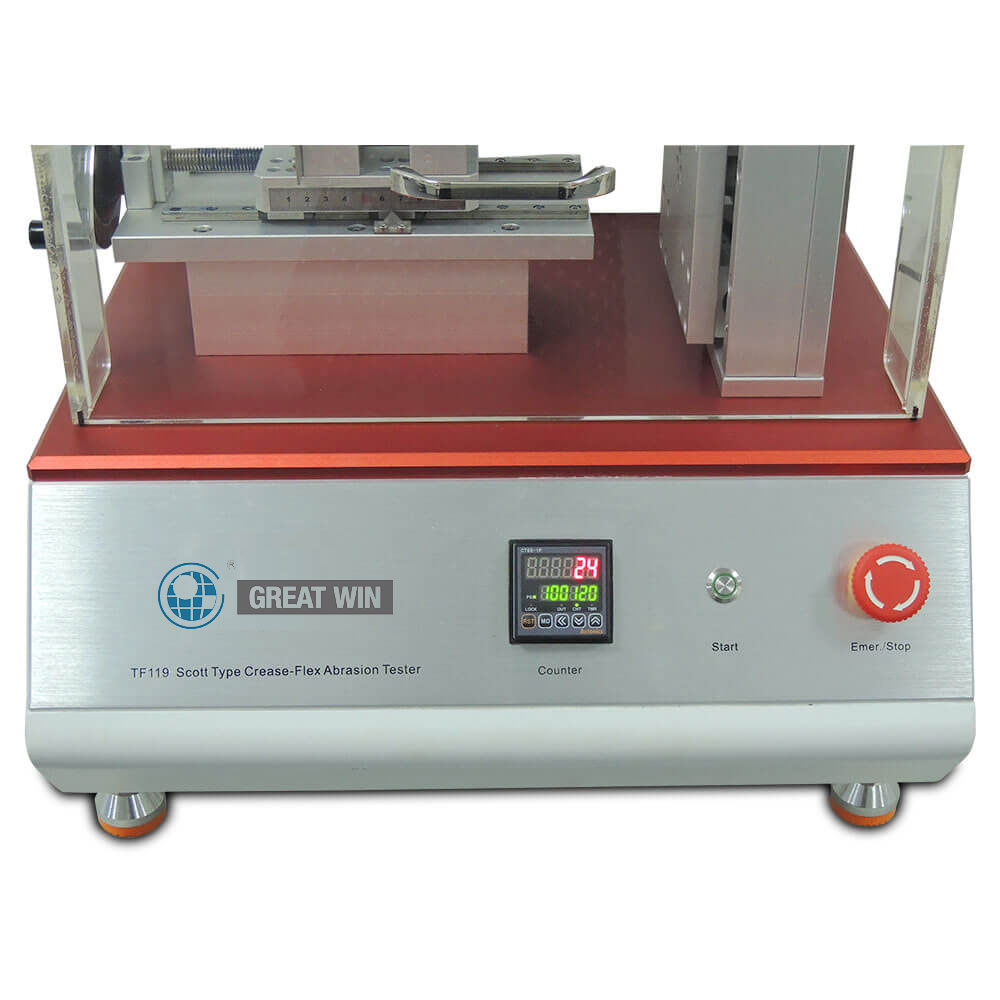

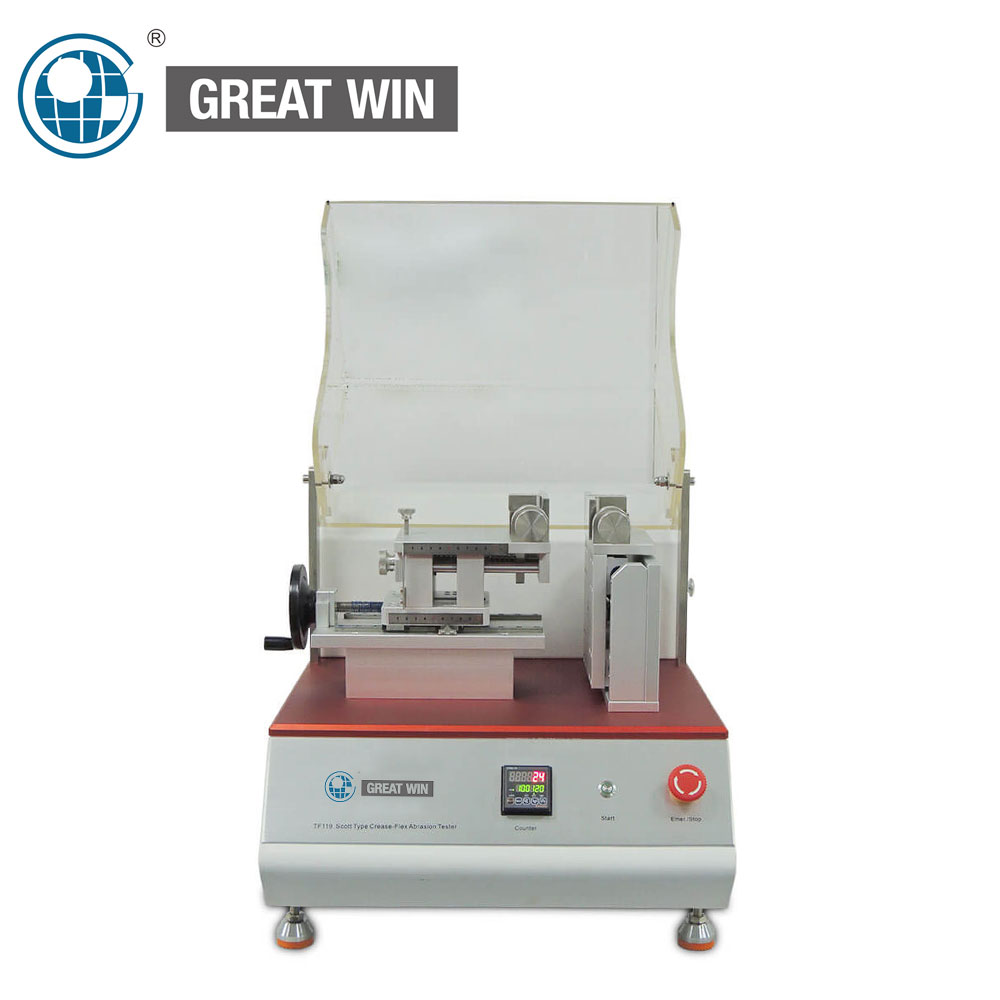

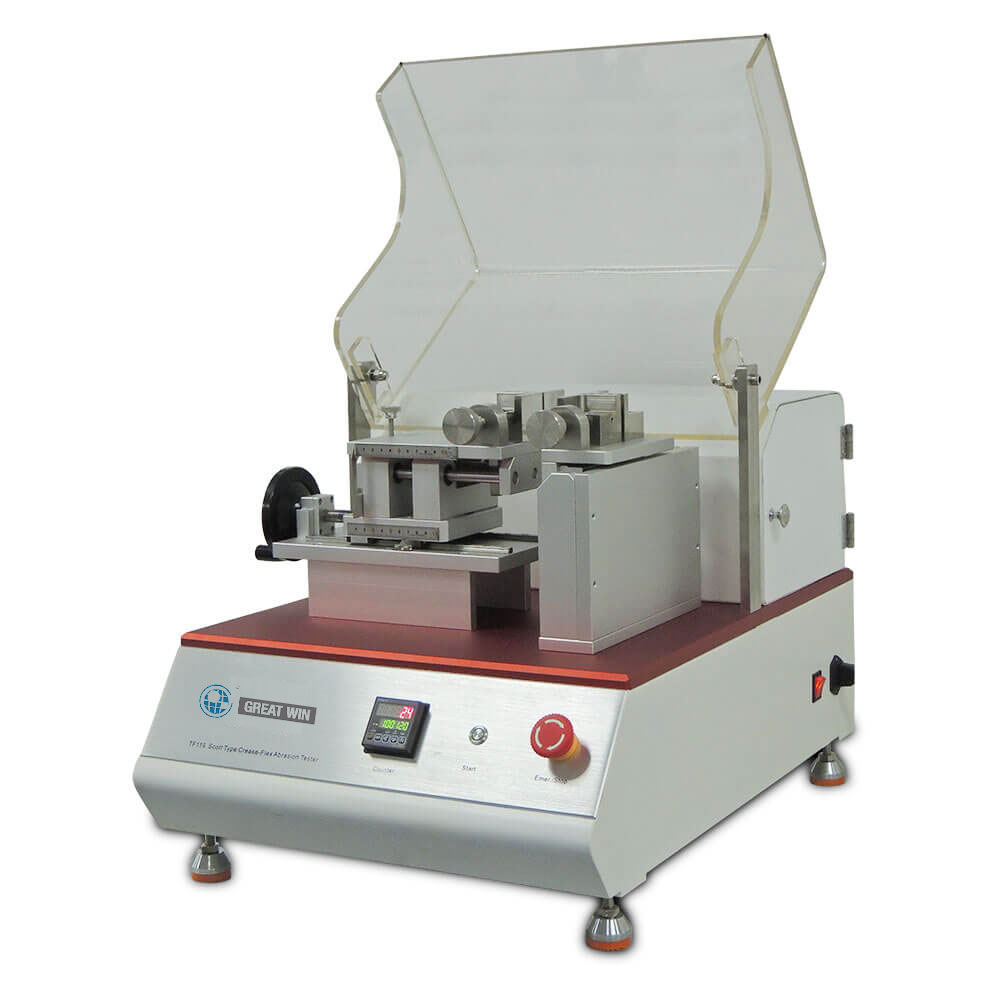

Scott Type Crease-Flex Abrasion Tester, to determine the crease-flex abrasion resistance of leather, rubber cloth etc. The force loaded on specimen, distance between grips and the two-way distance can be adjustable. And the force loaded on specimen is of spring type.
Clamp the two specimens in cross shape. Based on the various materials of the specimen, apply the appropriate load. During test, the two specimens are creased and flexed reciprocally. After reaching the specified number of abrasion, take off test samples to check if they are cracked, wrinkled or discolored.
BRAND | Great Win |
ITEM NO. | GW- 119 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Specimen: 30x120mm
Holders: 0~50mm(standard: 20mm)
Pressure load: 0.5~5kgf
Friction distance: 0~60mm(standard: 40mm)
Friction speed: 120+/-2cpm
JIS-K6404-6 L1096 JASO
| Technical specification |
Weight | 95 Kg |
Power | 220 /110 V 50 Hz |
Dimensions | 500 x 400 x 550 mm (L x W x H) |
| Application Industry |
All kinds of industries like
Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
| Brief introduction |
Scott Type Crease-Flex Abrasion Tester, to determine the crease-flex abrasion resistance of leather, rubber cloth etc. The force loaded on specimen, distance between grips and the two-way distance can be adjustable. And the force loaded on specimen is of spring type.
Clamp the two specimens in cross shape. Based on the various materials of the specimen, apply the appropriate load. During test, the two specimens are creased and flexed reciprocally. After reaching the specified number of abrasion, take off test samples to check if they are cracked, wrinkled or discolored.
BRAND | Great Win |
ITEM NO. | GW- 119 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Specimen: 30x120mm
Holders: 0~50mm(standard: 20mm)
Pressure load: 0.5~5kgf
Friction distance: 0~60mm(standard: 40mm)
Friction speed: 120+/-2cpm
JIS-K6404-6 L1096 JASO
| Technical specification |
Weight | 95 Kg |
Power | 220 /110 V 50 Hz |
Dimensions | 500 x 400 x 550 mm (L x W x H) |
| Application Industry |
All kinds of industries like
Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
