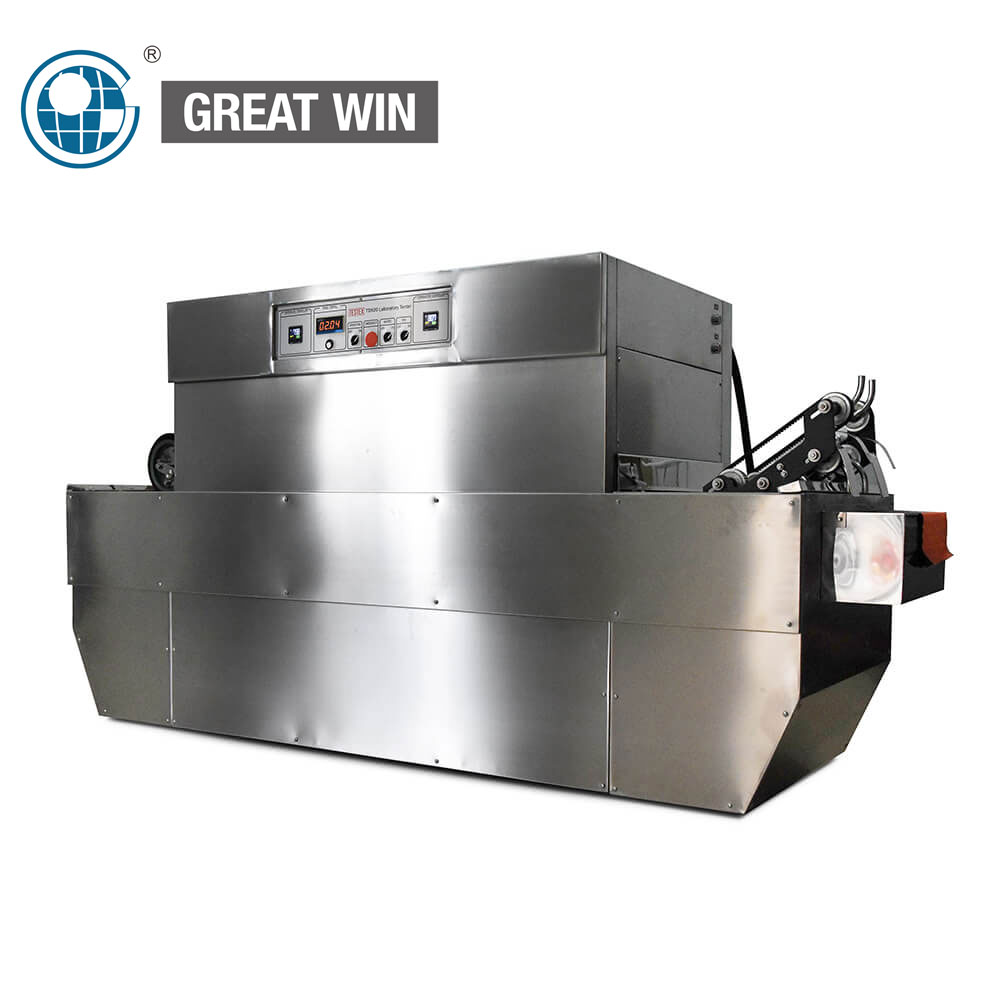

High quality Laboratory Tenter

Laboratory Tenter, a flexible continuous pin chain type hot air dryer, is widely used for all where a certain sample length is required in a continuous process. This mini-tenter is designed to simulate the Features of production scale tenter.
  • GW- TD620
  • Great Win
  • 9024800000
Availability:
Quantity:
Brief introduction

Laboratory Tenter, a flexible continuous pin chain type hot air dryer, is widely used for all where a certain sample length is required in a continuous process. This mini-tenter is designed to simulate the Features of production scale tenter.


BRAND

Great Win

ITEM NO.

GW- TD620

ORDER(MOQ)

1

PAYMENT

TT OR L/C

PRODUCT ORIGIN

China

SHIPPING PORT

Shenzhen Port

LEAD TIME

In stock, 7days Fast Delivery


Specifications

· Batch working with pin frame (length and width are adjustable)   160 ~ 360 mm

· Continuous working with endless pin chain

· The electric heating power is 19kw, temperature          20 ~ 250oC

· Moving speed                                                                         0 ~ 6 m/min

· 3 sets of air circulating fan ensures high drying and thermosoling performance

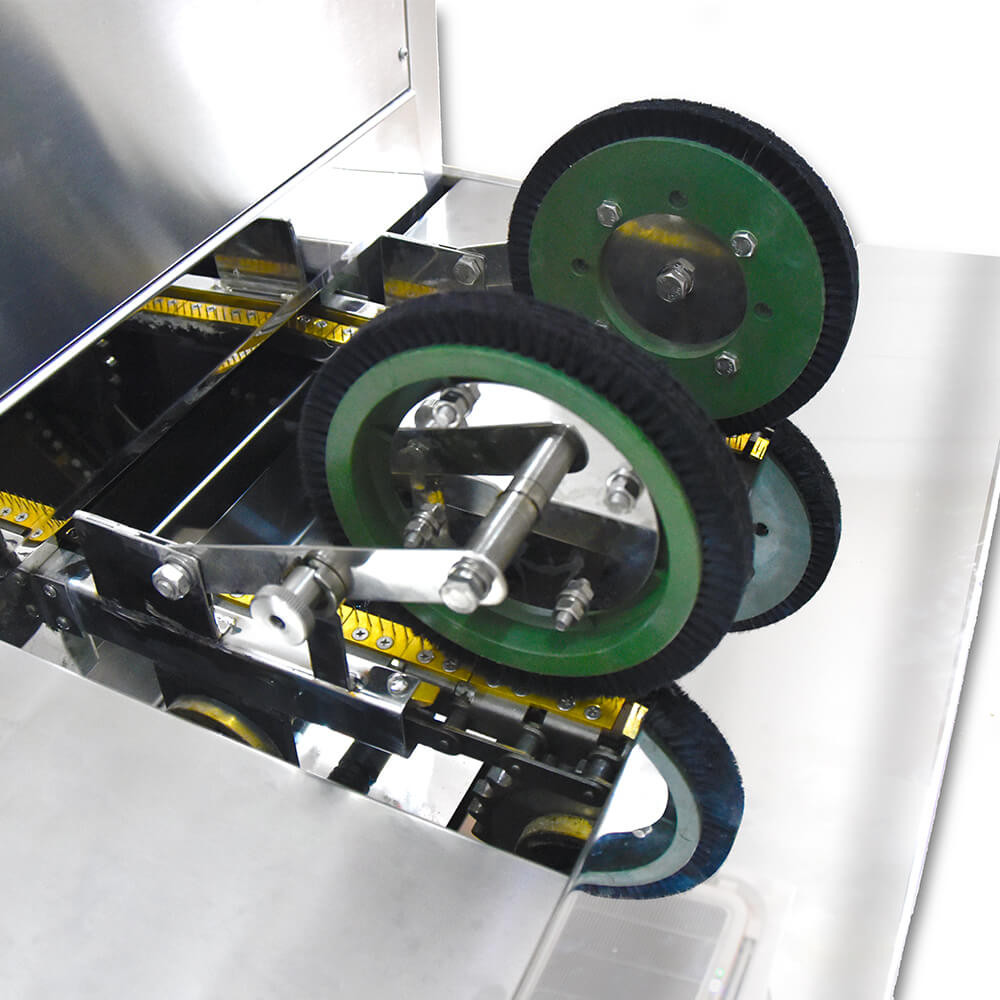

· Equipped with cloth pressing wheel in the feeding side, and pin-up device to lead fabric to reserve box at the end



Features

· Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.

· Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.

· Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.

· The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.


Technical specification


Weight


600 Kg


Power


380 V         50 Hz     19Kw



Dimensions

2500 x 900 x 1500 mm (L x W x H)


Application Industry

All kinds of industries like

Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
