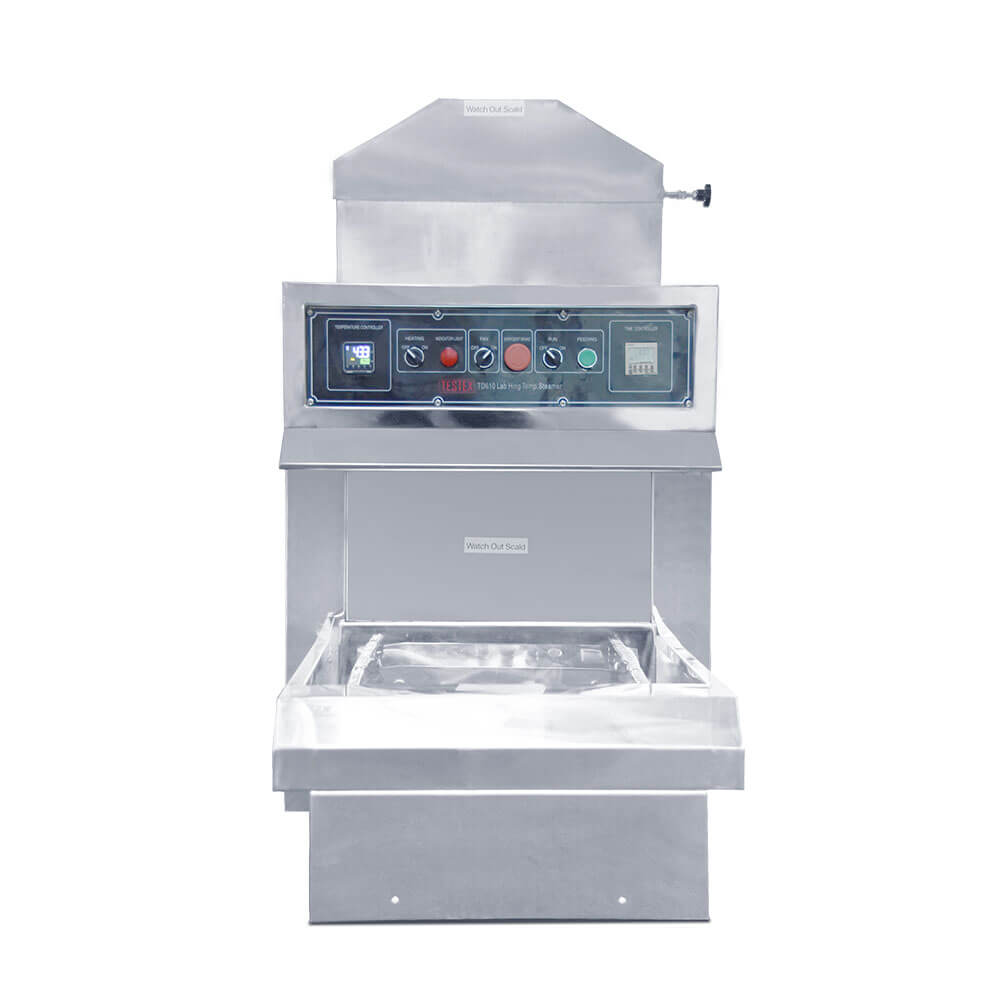

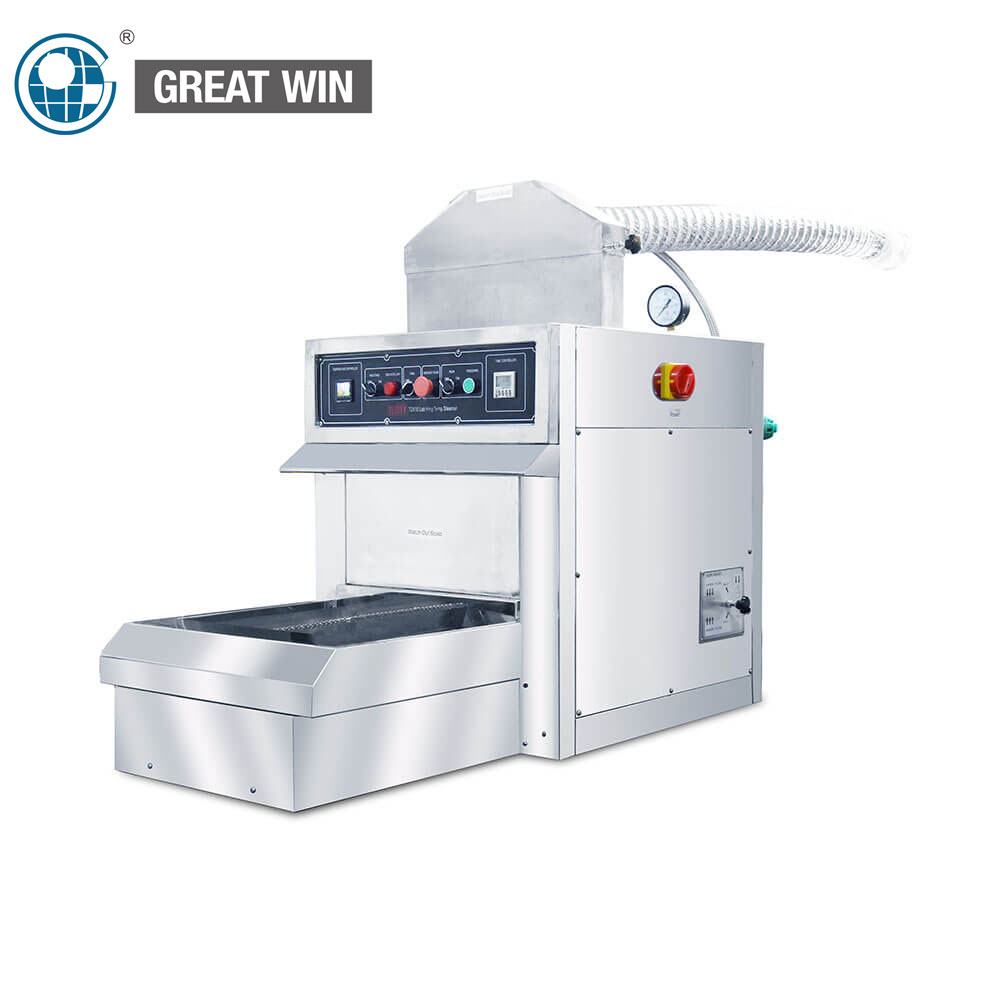

New Popular Lab High Temp. Steamer

Lab High Temperature Steamer, the same looking as the floor type dryer, but equipped with steam generator, thus this steamer can be widely used for drying, curing and steaming, for the use of a wide range of the dyestuff and chemical industry, finishing plants, research institutes and general textile industry.

Specifications

· Temperature range for:
Electric heating for drying, curing     20 oC ~ 250 oC
Steaming with saturated steam          102 +/-2 oC
High Temperature Steaming at          105 ~ 190 oC

· working time is presetable for 1 ~ 999 s, automatically moving in & out, and alarms

· Special design of retractable pin frame, the tension of test fabric samples can be adjusted in both warp and weft direction, the maximum stretch rate are up to 30%

· Max sample size                                    360 x 420

· Suitable for the discontinuous operation in conjunction with TD122 Lab Padder

Features

· Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.

· Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.

· Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.

· The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.

All kinds of industries like

Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
