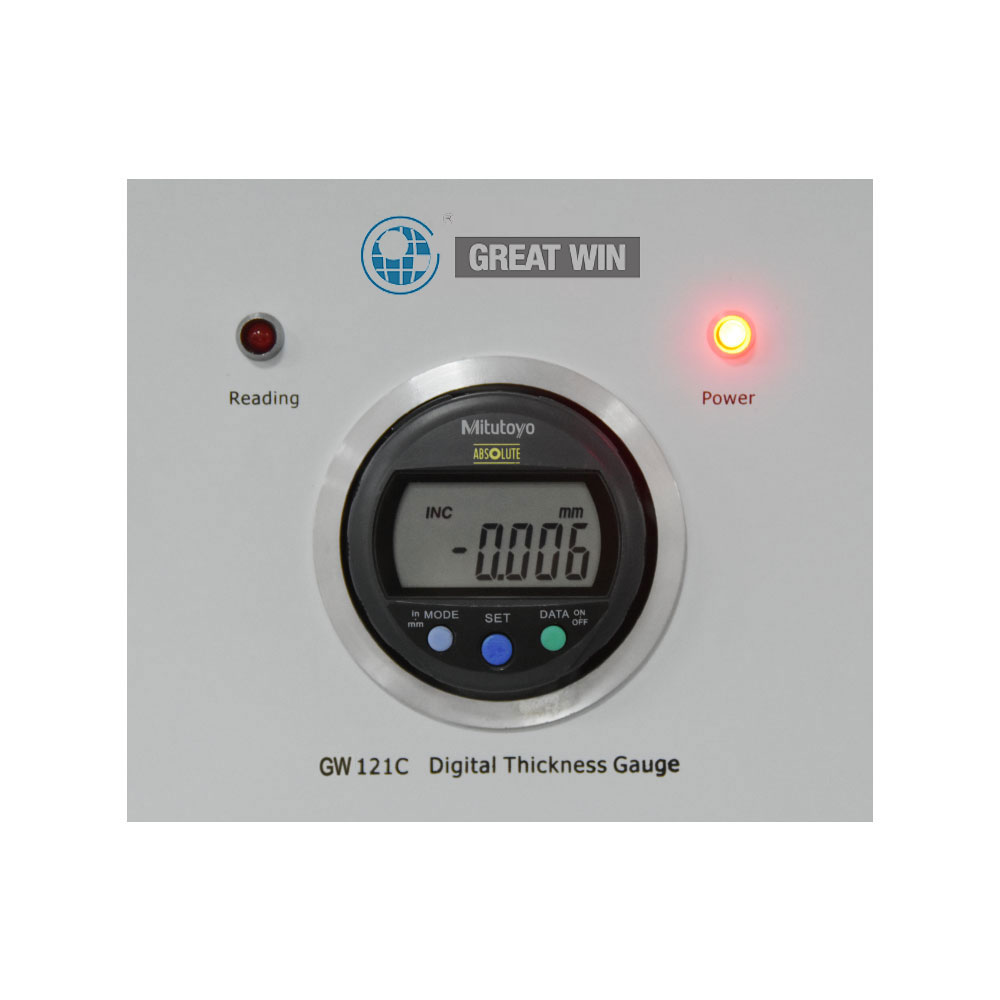

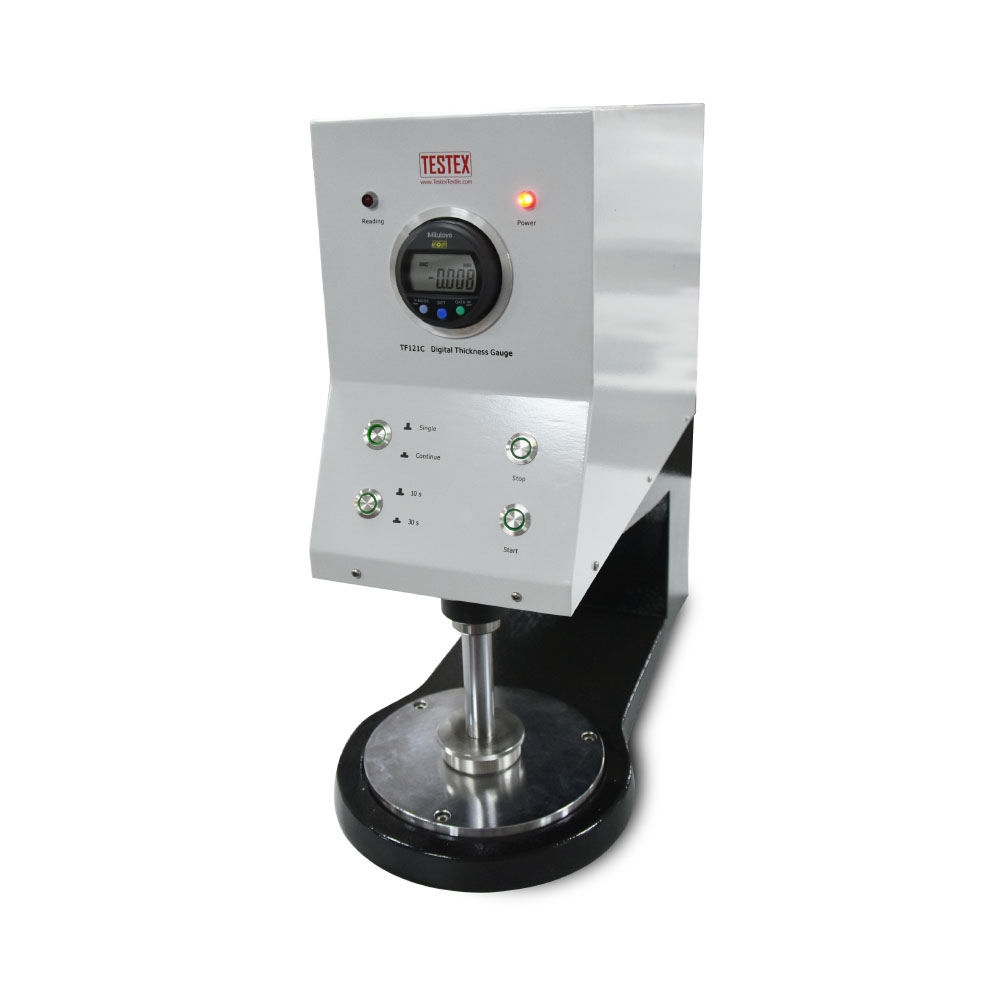

New Remove Digital Thickness Gauge

Digital Thickness Gauge(meter) provides determination of the thickness of textiles and textile products like woven and knitted fabrics under a specified pressure. This fabric thickness tester features in automatic lifting up and down to avoid manual operation error by presetting pressing time for 10s or 30s, available with two unit mode in mm and inch.
  • GW- 121C
  • Great Win
  • 9024800000
Availability:
Quantity:
Brief introduction

Digital Thickness Gauge(meter) provides determination of the thickness of textiles and textile products like woven and knitted fabrics under a specified pressure. This fabric thickness tester features in automatic lifting up and down to avoid manual operation error by presetting pressing time for 10s or 30s, available with two unit mode in mm and inch.


BRAND

Great Win

ITEM NO.

GW- 121C

ORDER(MOQ)

1

PAYMENT

TT OR L/C

PRODUCT ORIGIN

China

SHIPPING PORT

Shenzhen Port

LEAD TIME

In stock, 7days Fast Delivery


Specifications

· Digital display

· Range of thickness: 0.01~25mm

· Measuring accuracy: 0.01mm

· Lowering speed of pressing-foot: 1.72 mm/s

· Area of pressing foot: 100mm2, 2000mm2, 2500mm2, 10000mm2

· Load Weight: 10cN × 2, 50cN × 2, 100cN, 400cN, 1000cN × 2

· Pressing duration: 10s, 30s

*Optional Order[Range of thickness: 0.001~25 mm]



Features

· Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.

· Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.

· Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.

· The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.


Technical specification


Weight


70 Kg


Power


220 V         50 Hz     40W



Dimensions

590 x 530 x 430 mm (L x W x H)


Application Industry

All kinds of industries like

Rubber, Plastic,Foam,Metal, Nylon,Fabric, Paper, Aviation, Package, Architecture, Electric appliance, Automobile,… etc
