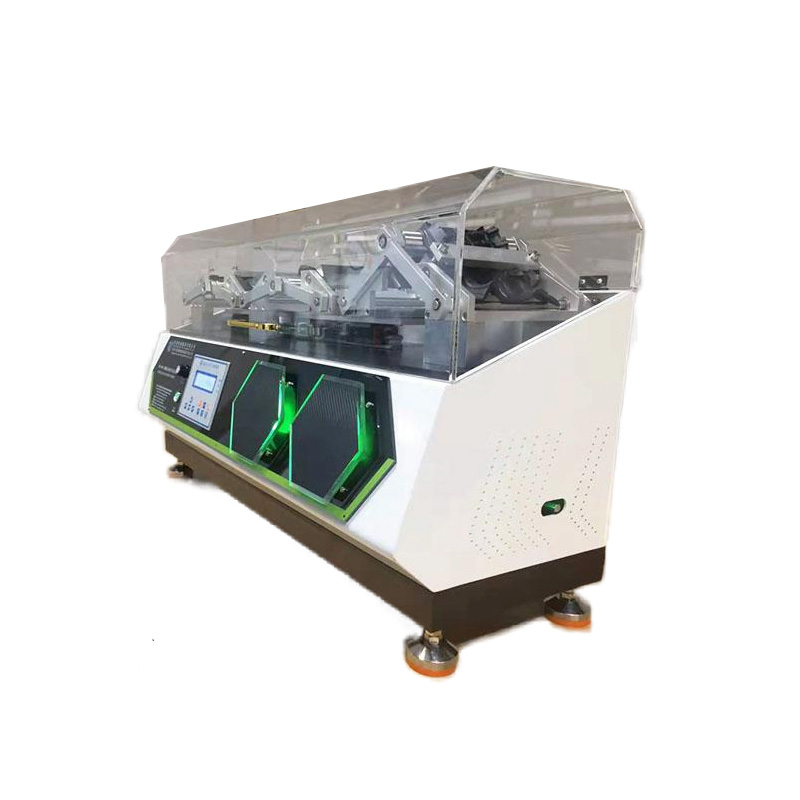

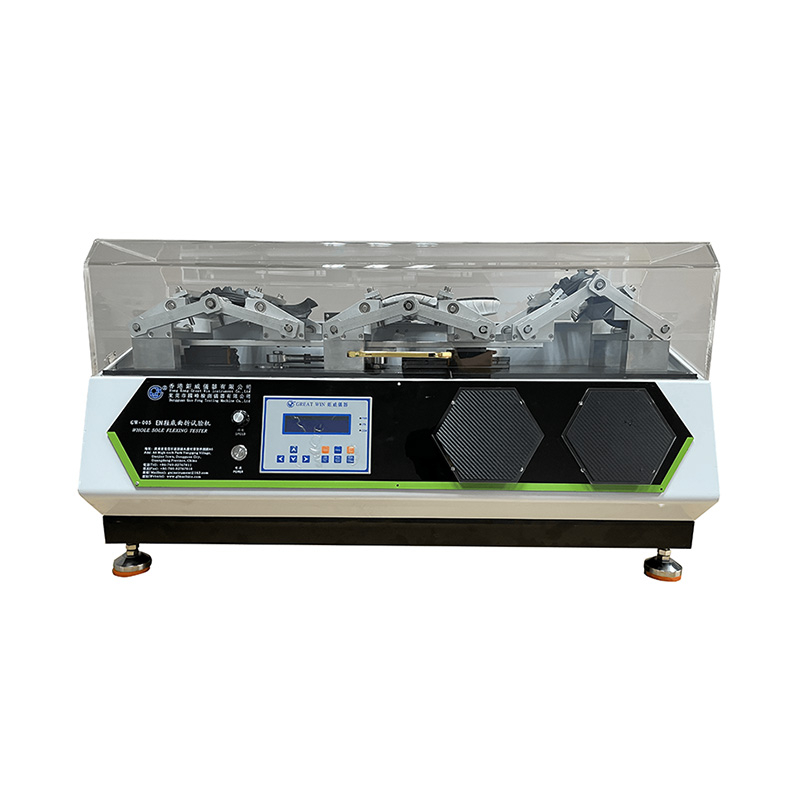

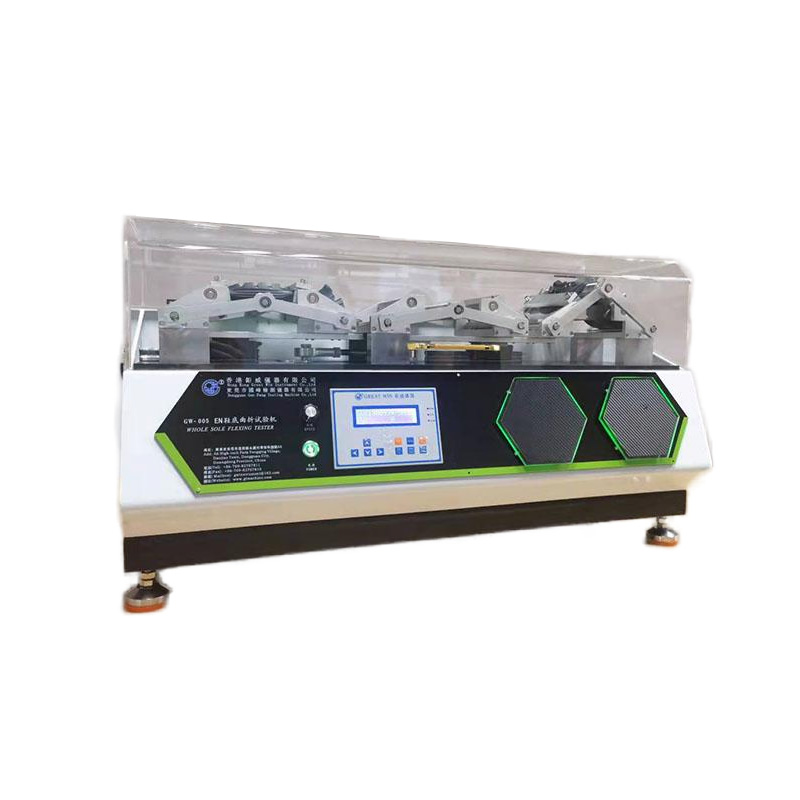

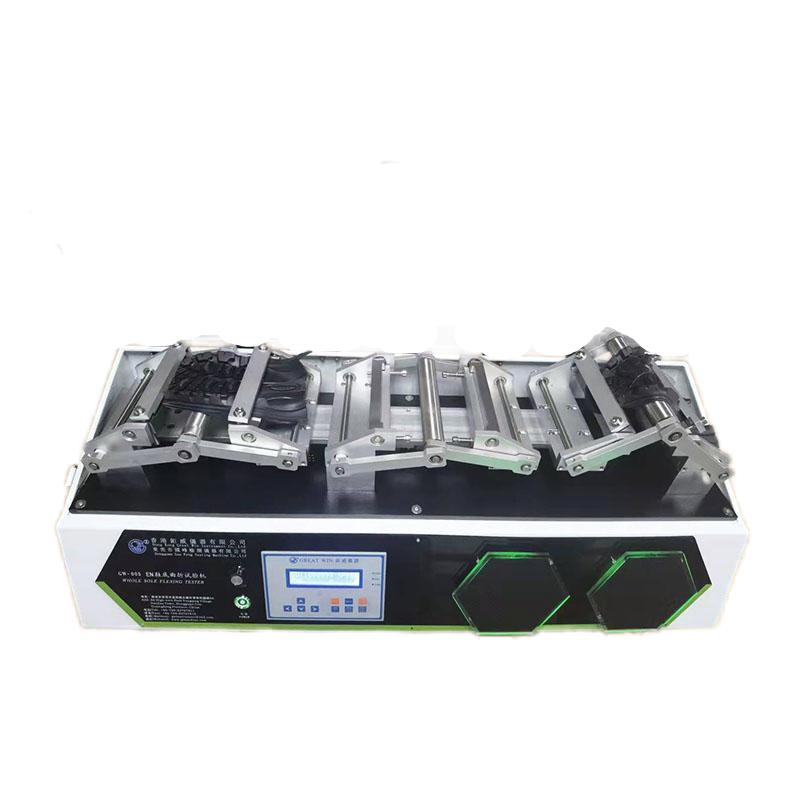

The machine is mainly used to measure the resistance of materials to repeated twists and turns, especially for the construction of the sole .

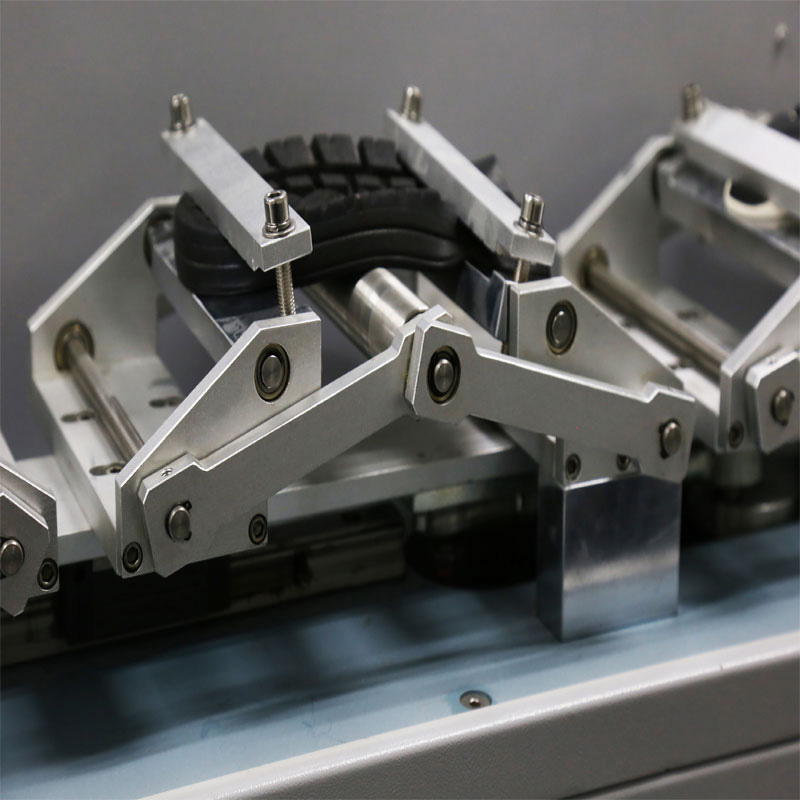

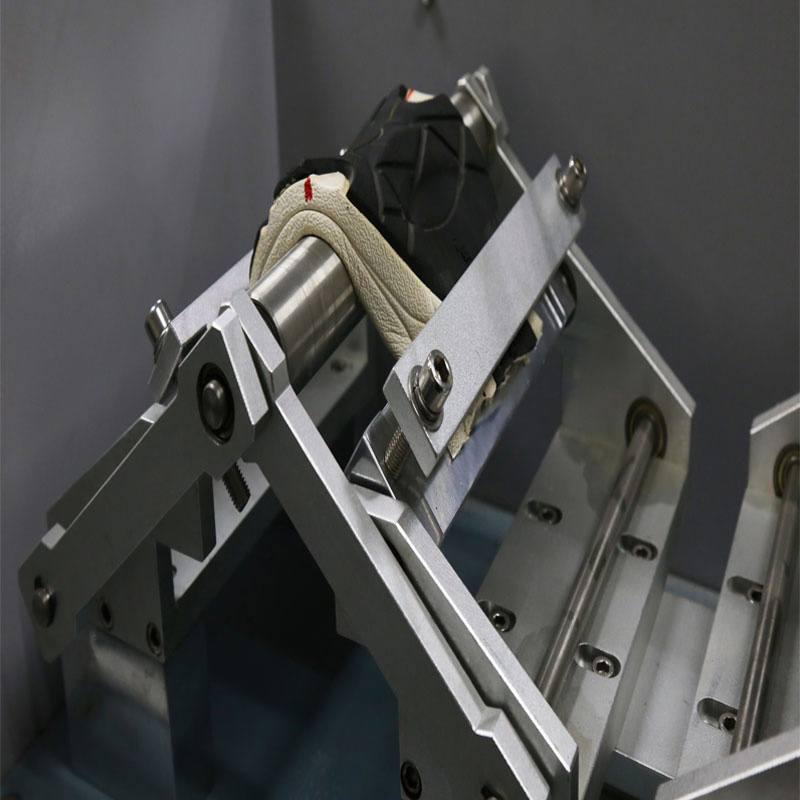

During the test, the maximum bending stress line was treated in the anti-slip pattern on the sole, and the three small openings were penetrated by the slitting knife. After a certain number of turns at a specific speed of 90° bending angle, use a magnifying glass to check the resistance of the sole
GW-005
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |
The machine is mainly used to measure the resistance of materials to repeated twists and turns, especially for the construction of the sole .
During the test, the maximum bending stress line was treated in the anti-slip pattern on the sole, and the three small openings were penetrated by the slitting knife. After a certain number of turns at a specific speed of 90° bending angle, use a magnifying glass to check the resistance of the sole
BRAND | Great Win |
ITEM NO. | GW-005B |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard For
SATRA TM161, ISO 17707, ISO20344-2021 section8.6 ,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991 section8.4.2, QB/T 2885, DIN 53543
| Technical Specifications |
Bending Angle | Bending Angle |
Circular shaft diameter | ￠30 mm |
Bending speed | 125~150cpm adjustable |
Grip width | 144mm |
Also try | 1 sole |
Counter | LED 0-999999 |
Size | 560 * 560 * 450 |
Weight | about 40kg |
AC220V, 3A | Power supply |
| Attached accessories |
1pc hole puncher
1pc hex wrench
| Product details |
