In international public health tenders and commercial medical supply contracts—particularly across South Africa and the broader African continent—compliance with the South African Bureau of Standards (SABS) and ISO 4074 is mandatory. Procurement guidelines enforce strict acceptance quality limits (AQL) on burst volume and pressure to ensure end-user safety.
However, an ongoing operational challenge for latex medical manufacturers is destination port failure. Consignments that clear factory quality control with passing certificates occasionally fail port-of-entry verification audits conducted by local regulatory bodies. The consequences are immediate: shipment impoundment, mandatory re-testing, port demurrage fees, and outright batch rejections.
Understanding the mechanical and physical mechanisms behind post-production test failures is essential for manufacturers seeking to safeguard their cross-border medical supply chains.
Key Failure Modes in Cross-Border Latex Distribution
Post-production airburst test failures rarely stem from a single catastrophic flaw. They are typically driven by latent material degradation combined with measurement variance during laboratory verification.
+------------------------------------------------------------------------------------------+
| CRITICAL LATEX DEGRADATION & VERIFICATION TIMELINE |
+------------------------------------------------------------------------------------------+
| [Factory Batch Release] ---> Baseline ISO 4074 Airburst Verification Passed |
| [Maritime Transit (30-60d)]---> High Heat/Humidity Corridors Accelerate Polymer Oxidation|
| [Port of Entry Inspection]---> Loss of Tensile Plasticity Drops Burst Volume Below Spec |
+------------------------------------------------------------------------------------------+
1. Micro-Oxidation During Extended Maritime Transit
Natural rubber latex consists of long polyisoprene polymer chains. During maritime shipping across tropical trade routes, container interiors frequently experience temperatures exceeding 45°C coupled with elevated relative humidity.
If antioxidant compounding packages are marginally under-dosed, prolonged thermal exposure accelerates polymer chain scission. This oxidation reduces material elasticity without altering visual appearance. When subjected to destination airburst tests, the compromised latex ruptures earlier in its expansion phase, resulting in failed burst volume ($V$) or burst pressure ($P$) metrics.
2. Compounding Inconsistencies and Vulcanization Drift
Microscopic variations in sulfur-to-accelerator ratios during compounding lead to localized disparities in crosslink density. While bulk physical properties may pass spot-checks, uneven compounding creates micro-thin zones across the condom sheath. Under isotropic air expansion, these zones experience localized stress concentrations that fail before reaching the mandatory minimum burst threshold (typically 1.0 kPa and 16.0–18.0 dm³ depending on product width).
3. Measurement Deviations in Uncalibrated Test Systems
Standardized airburst testing requires an inflation rate strictly controlled between 24 dm³/min and 30 dm³/min (0.4 to 0.5 dm³/s). If testing equipment relies on fluctuating pneumatic line pressures without closed-loop mass flow regulation, the actual volumetric delivery rate deviates.
Higher inflation rates induce rapid strain hardening in the latex film, artificially spiking peak pressure readings, while lower rates can alter failure dynamics. Furthermore, operator-dependent sample clamping that allows minor collar slippage distorts the pressure curve, creating false non-compliance records.
Mechanical Test Parameters Under ISO 4074 and SABS Protocols

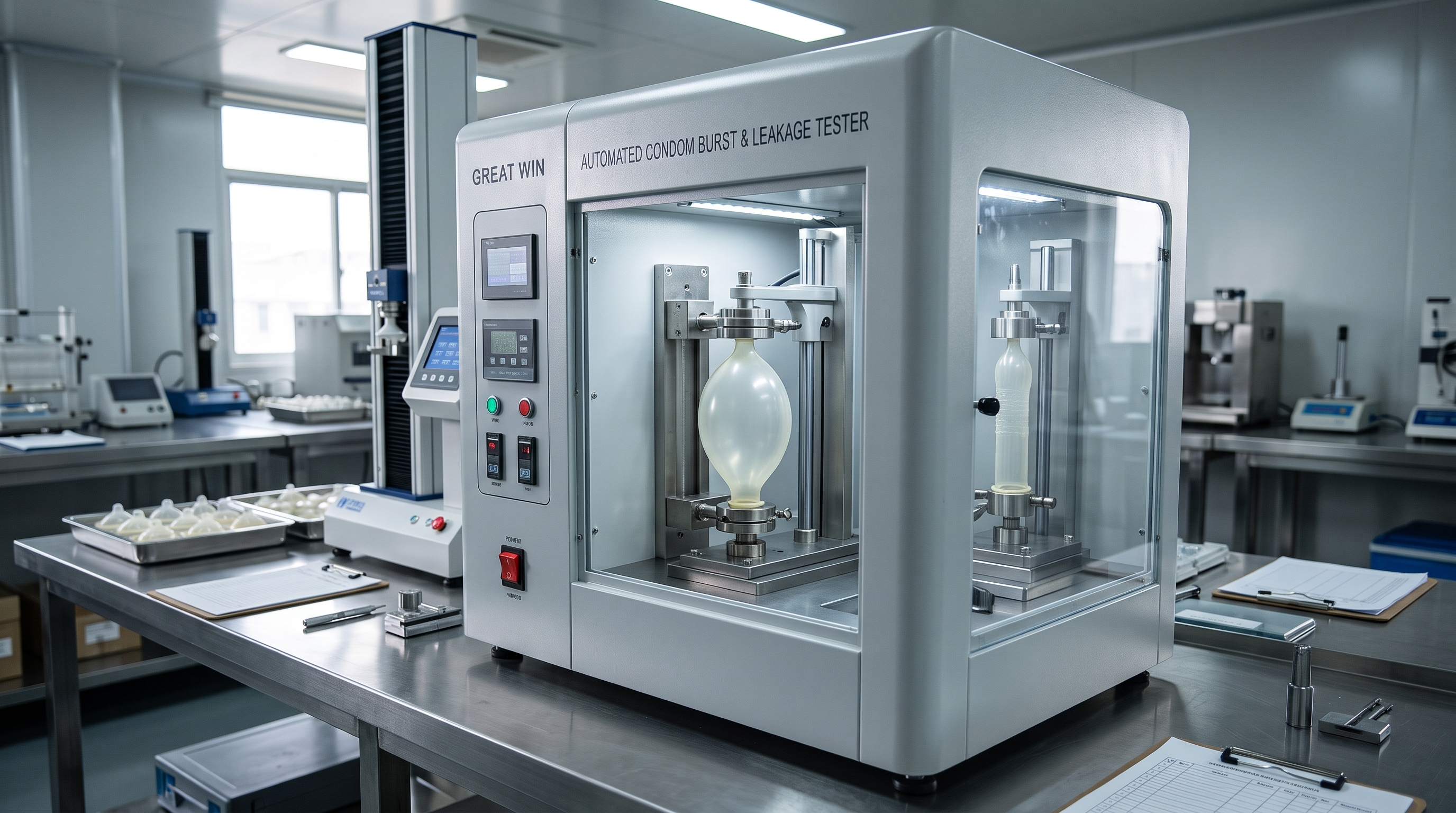

High-precision mass flow controller with closed-loop servo regulation
Pressure Sensor Accuracy
Class 0.5 or better
High-frequency digital pressure transducer (resolution: 0.01 kPa)
Inflation Length
Unrolled length up to 150 mm clamped
Precision pneumatic clamping collar with non-slip polyurethane seals
Containment Chamber
Clean, shatter-proof observation cabin
High-impact acrylic enclosure with automated burst fragment containment
Data Logging
Continuous pressure vs. volume curves
Industrial PLC with automated AQL statistical lot evaluation
To achieve a comprehensive quality management workflow, airburst testing should be integrated alongside automated medical testing machines designed for synthetic blood penetration, barrier leakage, and package integrity evaluations.
Comprehensive QA: Correlating Elasticity and Burst Strength
Relying exclusively on finished-product airburst testing can mask upstream formulation drifts until an entire production lot is completed. Effective medical manufacturing facilities correlate burst results with fundamental polymer characterization:
Tensile & Elongation Profiling: Utilizing a calibrated Digital Universal Tensile Testing Machine for Rubber Materials allows laboratories to measure the ultimate tensile strength (minimum 17–20 MPa) and elongation at break (minimum 650–700%) on dumbbell specimens cut directly from the latex sheath, identifying cure issues before high-volume foil packaging.
Accelerated Thermal Aging: Placing production samples into dedicated rubber and plastic testing aging chambers (e.g., conditioning at 70°C for 168 hours) replicates months of container transit in days. Running post-aging burst tests confirms whether the protective packaging and stabilization package prevent transit-induced degradation.
Electrical Leakage Testing: Verifying hole-free barrier integrity using automated electrolyte bath testing ensures that thin spots do not escape detection before final sealing.
High-Precision Laboratory Solutions from Great Win
Great Win Instrument Co., Ltd. engineers and manufactures precision physical testing instruments for medical device manufacturers, polymer laboratories, and international inspection authorities. Our specialized testing systems are built to eliminate compliance bottlenecks, ensuring production lots consistently satisfy SABS, ISO, ASTM, and CE regulatory standards before reaching export corridors.
