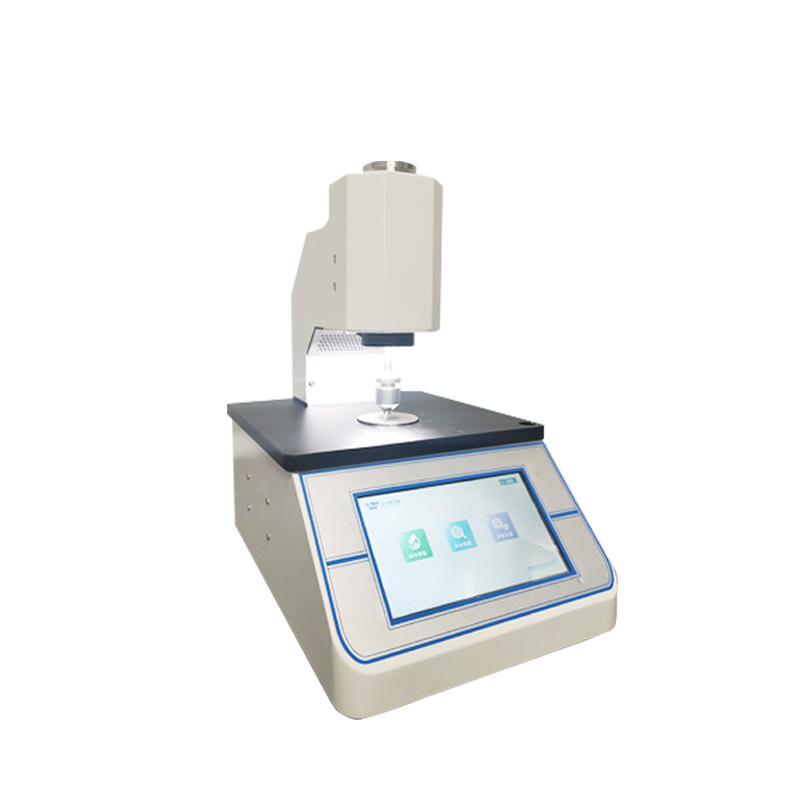

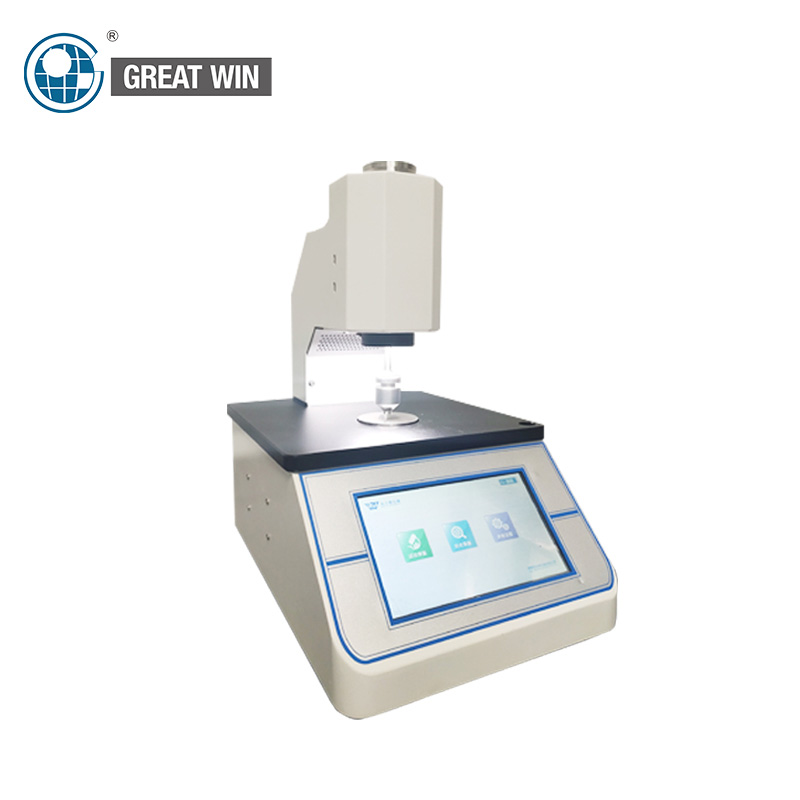

GW-148 The condom thickness tester adopts the principle of mechanical contact measurement, and strictly measures according to standard methods, effectively ensuring the standardization and accuracy of the test. Professionally suitable for accurate measurement of the thickness of various materials such as plastic films, sheets, diaphragms, paper, foils, silicon wafers within the range.
GW-148
Great Win
9024800000
| Quantity: | |
|---|---|
Brief introduction |
GW-148 The condom thickness tester adopts the principle of mechanical contact measurement, and strictly measures according to standard methods, effectively ensuring the standardization and accuracy of the test. Professionally suitable for accurate measurement of the thickness of various materials such as plastic films, sheets, diaphragms, paper, foils, silicon wafers within the range.
BRAND | Great Win |
ITEM NO. | GW-148 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Professional Technology:
Microcomputer control system, large LCD, PLC operation panel, convenient for users to test operation and data view.
Strictly follow the standard design of contact area and measurement pressure, while supporting various non-standard customization.
The measuring head rises and falls automatically in the test process, which effectively avoids the system error caused by human factors.
Support automatic and manual measurement modes, convenient for users to choose freely.
The system can automatically inject samples, and the relevant parameters such as injection step distance, measuring points and injection speed can be set by the user.
Display the analysis data of the maximum value, minimum value, average value and standard deviation of the measurement results in real time, which is convenient for users to judge.
Configure standard gauge block for system calibration to ensure test accuracy and data consistency.
The system supports many practical functions, such as real-time data display, automatic statistics, printing, etc., so as to obtain test results conveniently and quickly.
Standard USB interface for external connection and data between system and computer.
Technical Parameter:
Item Model | GW-148 |
Test range | 0~2 mm (conventional), 0~6 mm, 12 mm (optional) |
Resolution | 0.1 μm |
Measuring speed | 10 times/min (adjustable) |
Measuring pressure | 17.5 ± 1 kPa (film); 50 ± 1 kPa (paper) |
Contact area | 50 mm2 (film); 200 mm2 (paper) Film or paper can be selected. |
Injection step | 0~1000 mm |
Injection rate | 0.1~99.9 mm/s |
Air connection | Ф6mm Polyurethane tube |
Size | 400 mm*310mm*460mm |
Power | AC 220V 50Hz |
Net weight | 32 kg |
•Standrad For:
ISO 4593,ISO 534,ISO 3034,GB/T 6672 ,GB/T 451.3,GB/T 6547, ASTM D374,ASTM D1777TAPPI T411,JIS K6250,JIS K6783,JIS Z1702,BS 3983,BS 4817.
