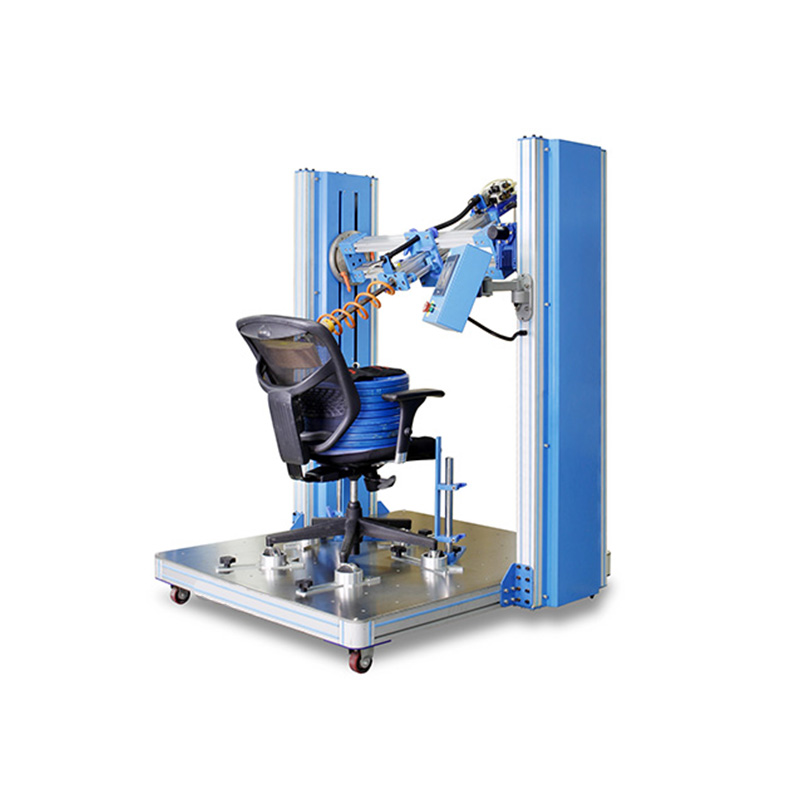

1. Suitable for multi-standard seat backrest and seat surface endurance test requirements.
2. Adopting SMC core non-rotating cylinder drive, can choose the cylinder output force control mode or displacement control mode. 3. Cylinder loading assembly can be manually adjusted along the frame to the left, right, front and rear position, and electrically driven beam to adjust the position up and down.
4. Simple clamping structure design, without any special auxiliary tools.
5. Universal foot pad equipment, so that the minimum distance between the equipment and the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling.
GW-BFM-10-FP
Great Win
9024800000
| Quantity: | |
|---|---|
Product Characteristics |
1. Suitable for multi-standard seat backrest and seat surface endurance test requirements.
2. Adopting SMC core non-rotating cylinder drive, can choose the cylinder output force control mode or displacement control mode. 3. Cylinder loading assembly can be manually adjusted along the frame to the left, right, front and rear position, and electrically driven beam to adjust the position up and down.
4. Simple clamping structure design, without any special auxiliary tools.
5. Universal foot pad equipment, so that the minimum distance between the equipment and the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling.
BRAND | Great Win |
ITEM NO. | GW-BFM-10-FP |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
| Technical Specifications |
parameters | 1. Cylinder: Output force 30~180kg force; Maximum stroke: 500mm. 2. Counting: 6 digits; with stop/power failure memory function to avoid test data loss. 3. Speed: 10~25 times/minute adjustable. 4. Sample: Allow maximum installation size less than 850*850mm. 5. Overall dimensions: 1440*1400*1780 mm, 448 kg. 6. air source: air pressure: ≥ 0.5MPa; flow rate: ≥ 800 liters / min; air source needs to be filtered water and dry treatment. 7. Power supply: 220VAC, 2A. |

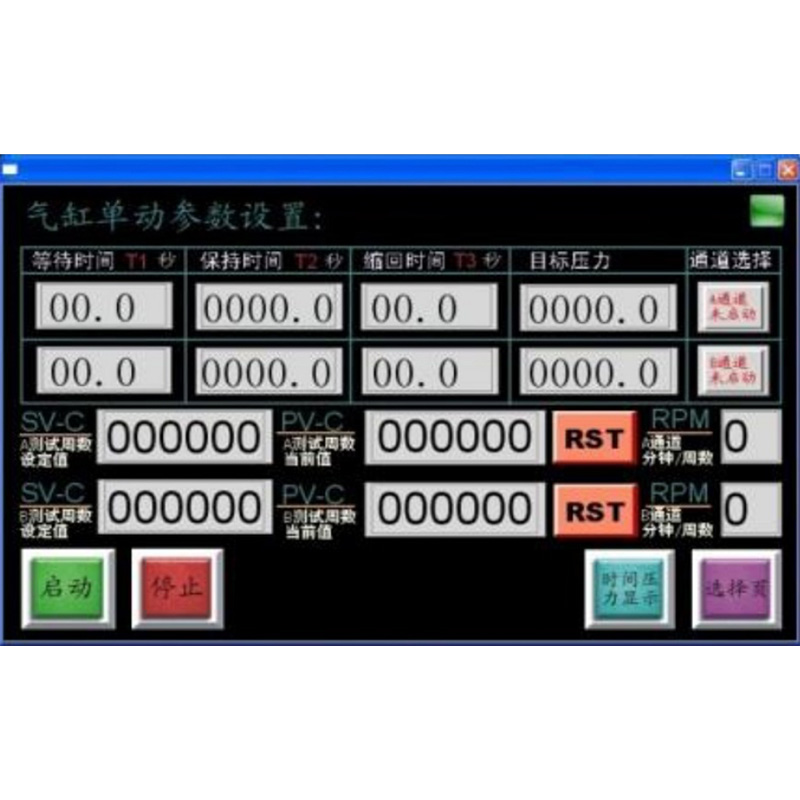

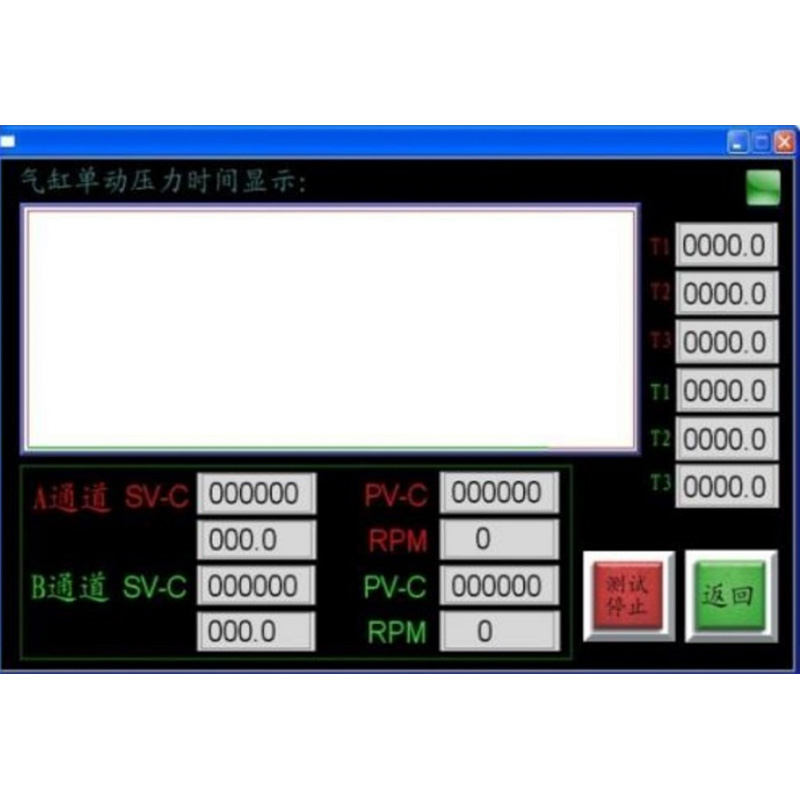

control | 1. Adopting the 2-channel pneumatic closed-loop single-chip control system developed by our factory, with optional control of cylinder output force or displacement, low air pressure detection and breakpoint shutdown function, and power failure memory function. Optional two-channel cylinder synchronous or asynchronous in accordance with the timing mode. 2. 2. touch screen input test parameters and output test results, real-time display and tracking of the value and curve of each force ~ time, etc. 3. 3. in the selection of the cylinder output force control mode, the force is closed-loop control. That is: only when the current value of the loading force reaches 95% of the set value (can be modified in the background) will trigger a delay, and can keep the current value within ±3% of the set value fluctuations (the standard requirement is ±5%). 4. 4. In the cylinder output position mode, the displacement is controlled by moving the magnetic sensor attached to the cylinder surface. |
