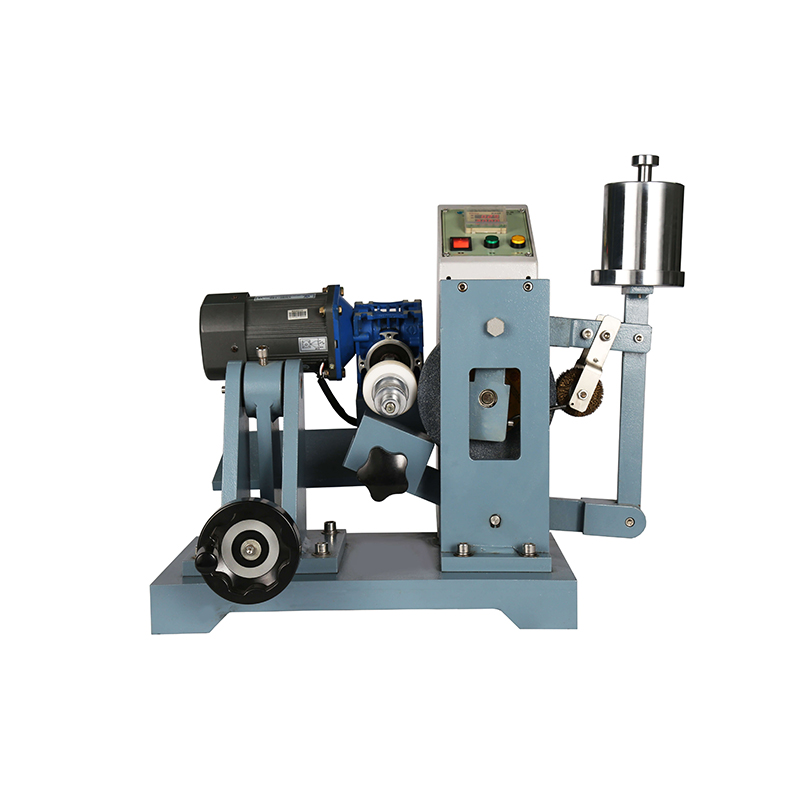

AKRON Abrasion Testing Machine is designed to use together with a special balance for testing the abrasive consumption for the rubber products such as sole, tire, belt of tank, …etc.
GW-007
Great Win
9024800000
| Quantity: | |
|---|---|
| Brief introduction |
AKRON Abrasion Testing Machine is designed to use together with a special balance for testing the abrasive consumption for the rubber products such as sole, tire, belt of tank, …etc.
BRAND | Great Win |
ITEM NO. | GW-007 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Standard For
BS-903 GB/T1689 JIS-K6264 CNS-743
| Technical Specifications |
Sand Wheel: | Outer Diameter Φ150mm, 25mm(w), granularity 36#, Abrasive material: Alumin |

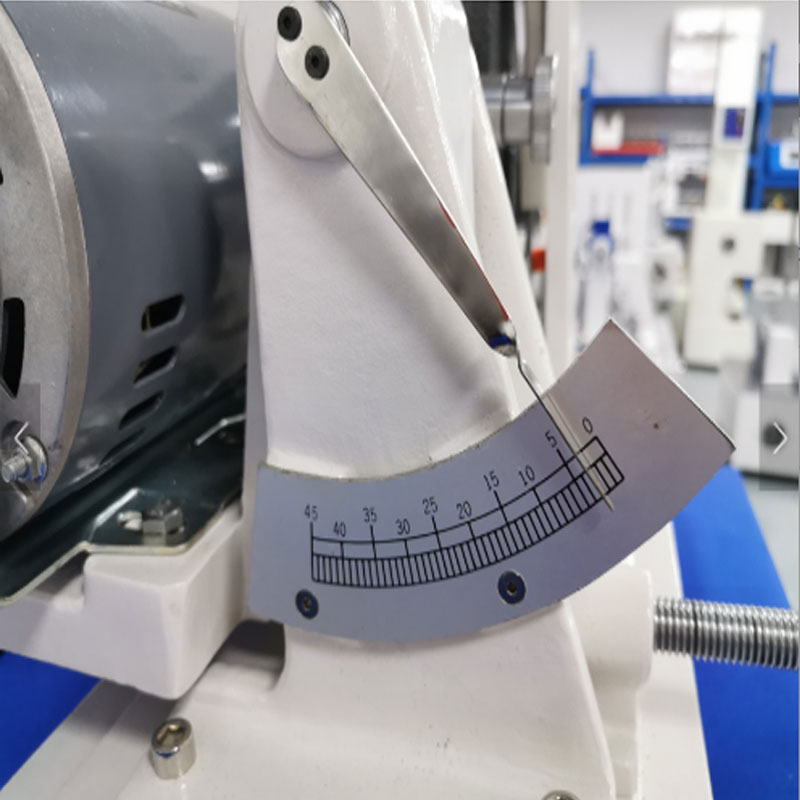

Specimen slanted range | 0~35° adjustable（test angle 15° or 25°） |

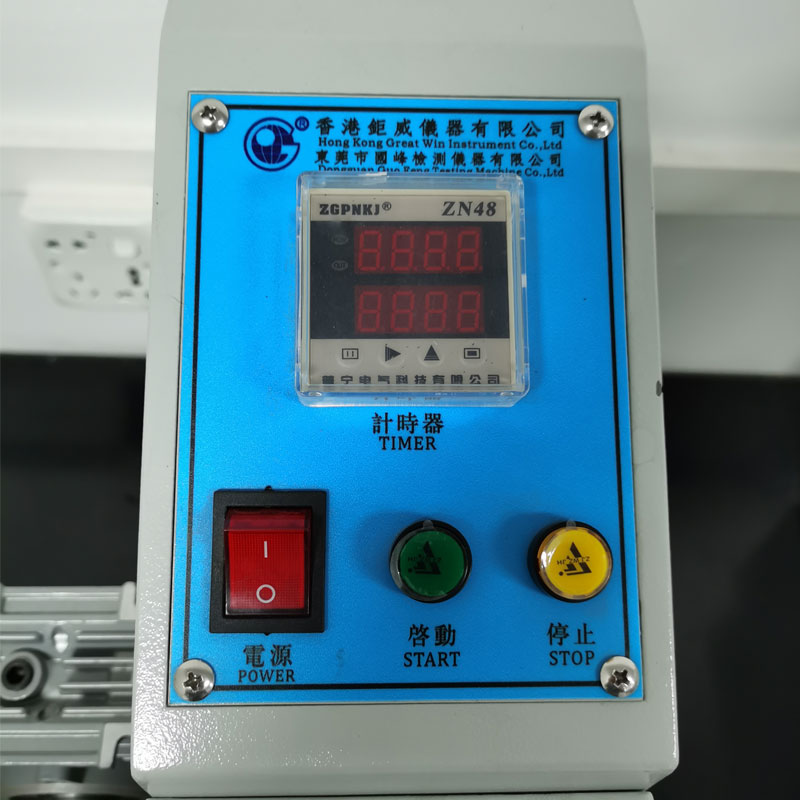

Counter | LCD 0-99,999,999 |
Rubber axle rotating speed: | 76±2 rpm;75±5rpm or 250±5rpm;250±5 rp |
Dimension | 53*43*43C |
Weigh | 70KG |
| Dimension | 68*51*47cm |
| N.W. | 83kg |
| Power | AC220V, 3A(110V can been chosen) |
| Attached accessories |
Rubber wheel 1pc
a) Outer dia.60mm,Inner dia.12.7mm,Thickness 13mm for JIS K6264.
b) Outer dia. 63.5mm,Inner dia.12.7mm,Thickness 12.5mm for BS-903-A9 Method B
Grinding wheel 1pc
Weights 1set
| Application Industry |
