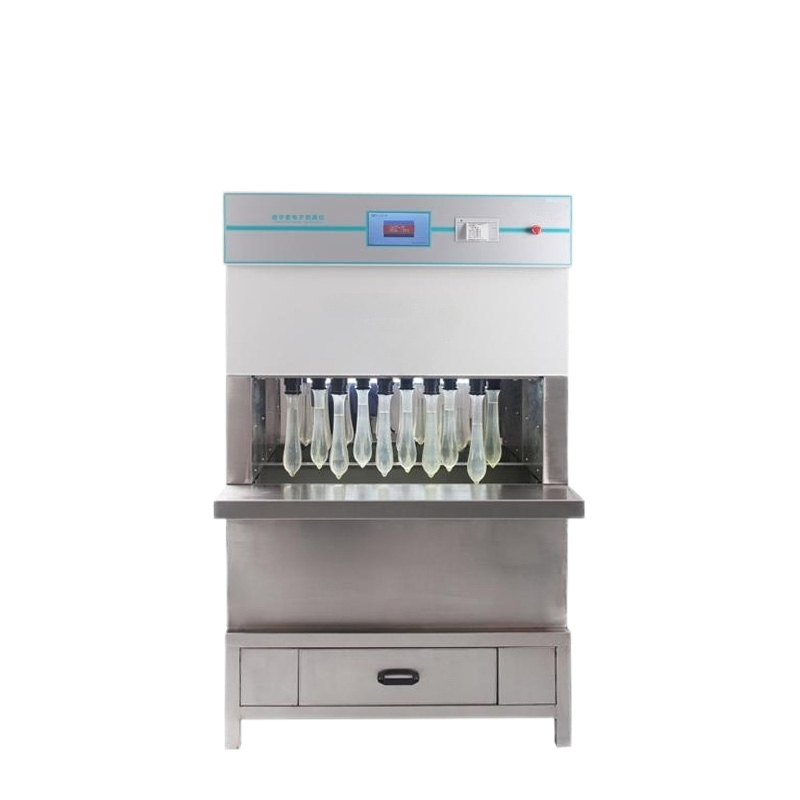

GW-143 Condom electric water leak tester is a fast and effective equipment. Its design meets the certification requirements of GB7544-2009 appendix l pinhole test, iso4074:2002 (technical requirements and test methods of natural rubber condoms), iso4074:2015, AFNOR (French Standardization Association), DIN (German Standardization Association), etc.
GW-143
Great Win
9024800000
| Quantity: | |
|---|---|
Brief introduction |
GW-143 Condom electric water leak tester is a fast and effective equipment. Its design meets the certification requirements of GB7544-2009 appendix l pinhole test, iso4074:2002 (technical requirements and test methods of natural rubber condoms), iso4074:2015, AFNOR (French Standardization Association), DIN (German Standardization Association), etc.
BRAND | Great Win |
ITEM NO. | GW-143 |
ORDER(MOQ) | 1 |
PAYMENT | TT OR L/C |
PRODUCT ORIGIN | China |
SHIPPING PORT | Shenzhen Port |
LEAD TIME | In stock, 7days Fast Delivery |
Professional Technology:
Comfortable and safe operation, compact structure, easy maintenance, fast and reliable operation.
With 10 independent automatic lifting test heads, the test data is automatically transmitted to the computer.
The test range is wide, and it can meet all kinds of samples.
According to iso4074:2002 conductivity leakage test method.
•Technical specifications:
Item Model | GW-143 |
Test workstation | Ten Station |
Test water temperature | 0~40ºC |
Injection volume | 300ml±10ml(Automatic water injection) |
DC voltage | (10±0.1)V |
Voltmeter accuracy | ±0.3mV |
Precision resistance | (10±0.5)kΩ |
Size | 1000 mm*450mm*1600mm |
Power | AC 220V 50Hz |
Net weight | 50 kg |
•Standrad For:
GB7544-2009, ISO4074:2002, ISO4074:2015, AFNOR, DIN.
