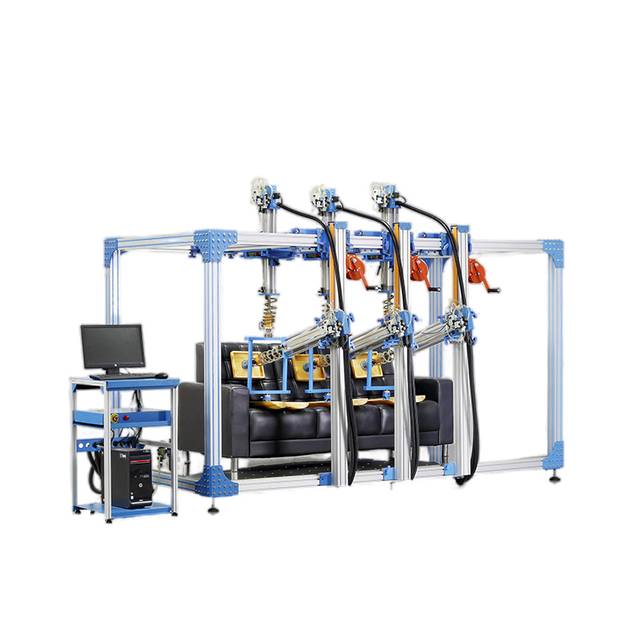

Multiple Alternating Bending Seat and Back Tester

Brand: Great Win

Product Code: 9024800000

Model: GW-BFM-38

Brief:
1. Frame type. All cylinder loading assemblies can be adjusted and secured in position along the aluminum alloy profiles of the frame structure.
2. All cylinder loading assemblies utilize an arbor hexagonal non-rotating cylinder to keep the loading pads from rotating for loading. 3.
3. all cylinder loading assemblies can be adjusted to the left, right, forward, backward, and up and down positions to achieve the optimum position according to the testing requirements. 4. all cylinder loading assemblies are pneumatic servo closed-loop loaded.
5. the vertical cylinder assembly is mounted on a free horizontal sliding "base" that automatically translates and stays vertical when subjected to lateral force. 6. Universal foot pad equipment, so that the minimum distance between the equipment from the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling.
7. Simple operation, one person can quickly complete the specimen clamping, without any tools to assist.

Add to Basket

More >>

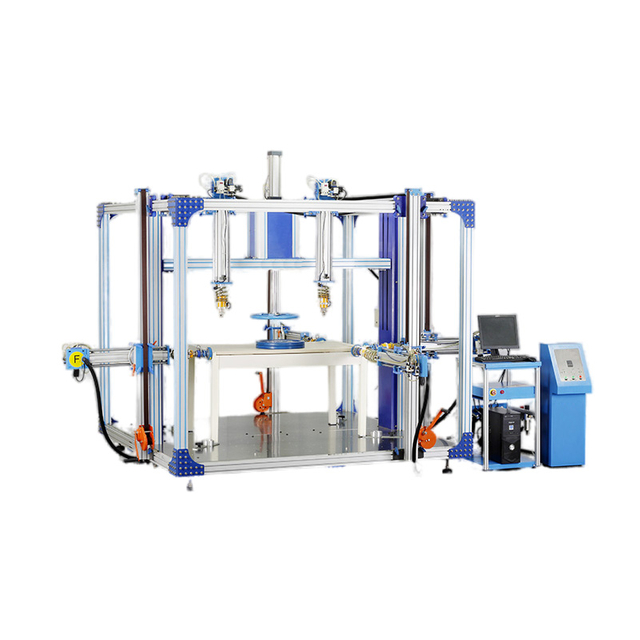

Universal Test Rig for En Furniture

Brand: Great Win

Product Code: 9024800000

Model: GW-BFM-17

Brief:
1. Aluminum profile frame construction. All loading components can be moved and fixed position along the frame aluminum profile to make it in the best loading position. 2. all loading force cylinder elements are core hexagonal non-rotating cylinders, keeping the loading pads from rotating for loading.
3. the vertical cylinder assembly is mounted on a freely sliding horizontal "base" that automatically translates and remains vertical when subjected to a lateral force. 4. easy to operate, one person can quickly clamp the specimen without any tooling.
5. All channels can be set up in independent or combined action mode, and all channels are equipped with independent touch switches

Add to Basket

More >>

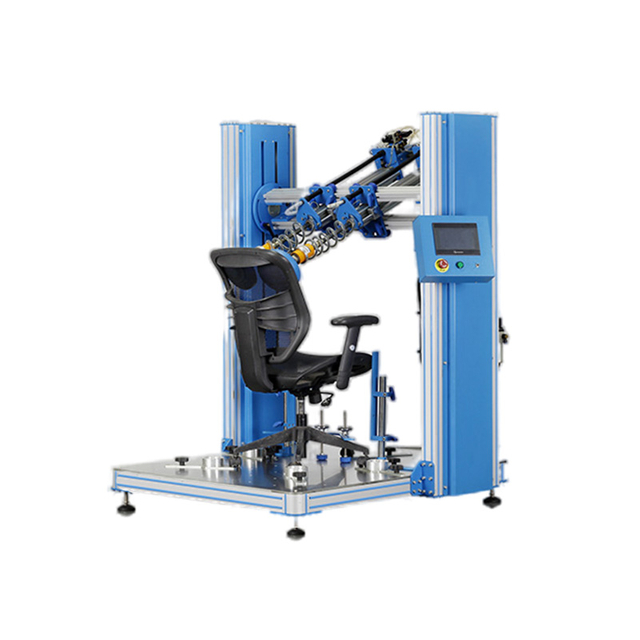

Seat and Back Bending Tester

Brand: Great Win

Product Code: 9024800000

Model: GW-BSE-23

Brief:
1. This product design is specially for the joint test of single seat seat of European standard and national standard.
2. Electrically adjust the height of the beam, so that the seat surface loading covers the height of 200-800 mm.
3. Vertical loading cylinder assembly installed on the "base", adjustable left and right deviation ± 100 mm; in the back loading, automatically adjust the front and rear position, and maintain the vertical loading state.
4. The back loading cylinder has adjustable tilt Angle 0-45 degrees, adjustable left and right deviation ± 50 mm. Meet BSEN 1728:20127.9 Combined loading test mode for F-H, C-B, J-E, chair back.(Standard requirements)
5. Universal footpad equipment, so that the minimum distance from the ground is more than 80 mm, convenient to adjust the equipment level and forklift handling.6. Simple clip structure design, all operations can be quickly completed by one person, without any tools.

Add to Basket

More >>

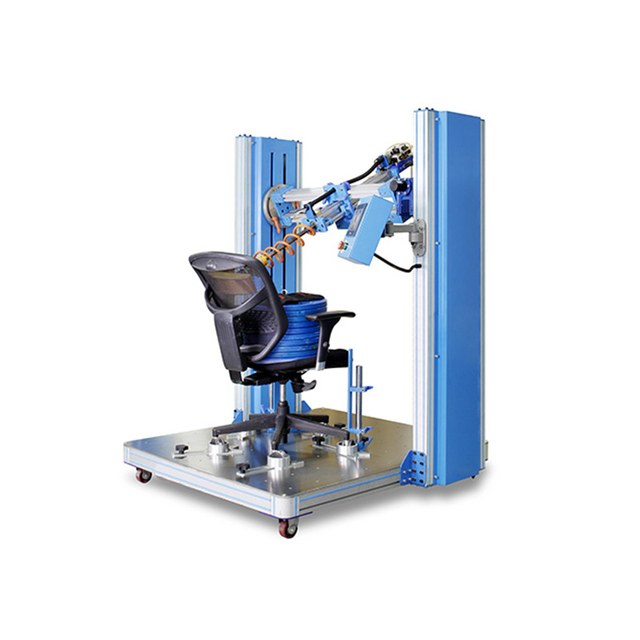

Furniture Testing Machine Seat Backrest Durability Tester

Brand: Great Win

Product Code: 9024800000

Model: GW-BFM-10-FP

Brief:
1. Suitable for multi-standard seat backrest and seat surface endurance test requirements.
2. Adopting SMC core non-rotating cylinder drive, can choose the cylinder output force control mode or displacement control mode. 3. Cylinder loading assembly can be manually adjusted along the frame to the left, right, front and rear position, and electrically driven beam to adjust the position up and down.
4. Simple clamping structure design, without any special auxiliary tools.
5. Universal foot pad equipment, so that the minimum distance between the equipment and the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling.

Add to Basket

More >>

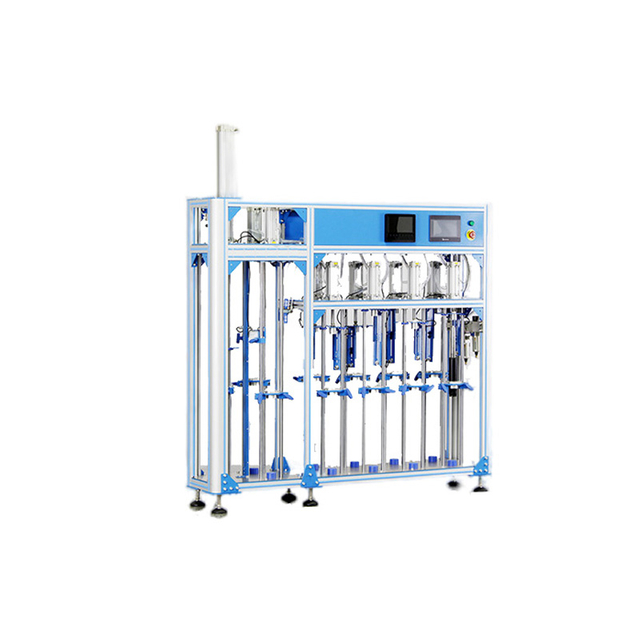

Furniture Gas Spring Durablity Tester

Brand: Great Win

Product Code: 9024800000

Model: GW-BFM-18

Brief:
1. Input the test parameters and output the test results on the touch screen, and display and track the values and curves of each force ~ time in real time. Real-time display and tracking of the values and curves of each force ~ time, etc.
2. adjustable air pressure bar installation height. 3.
3. adopts multi-channel non-contact infrared temperature monitoring and recording system, when the temperature of a channel exceeds the set value, the channel outputs an alarm and stops testing.

Add to Basket

More >>
Bending Test Rig for Seat Back Mechanism or Front Coner

Brand: Great Win

Product Code: 9024800000

Model: GW-BSE-24

Brief:
1. This product is designed specifically for the European standard leisure recliner backrest and office chair seat front corner alternating endurance test.
2. The loading cylinder can be adjusted up and down (motorized), left and right, front and back to adapt to different sizes of samples.
3. universal foot support equipment, so that the minimum distance between the equipment from the ground is more than 80 mm, easy to adjust the level of equipment and forklift handling. 4. Simple clamping structure design, all operations can be completed quickly by a single person, without any tools to assist.

Add to Basket

More >>

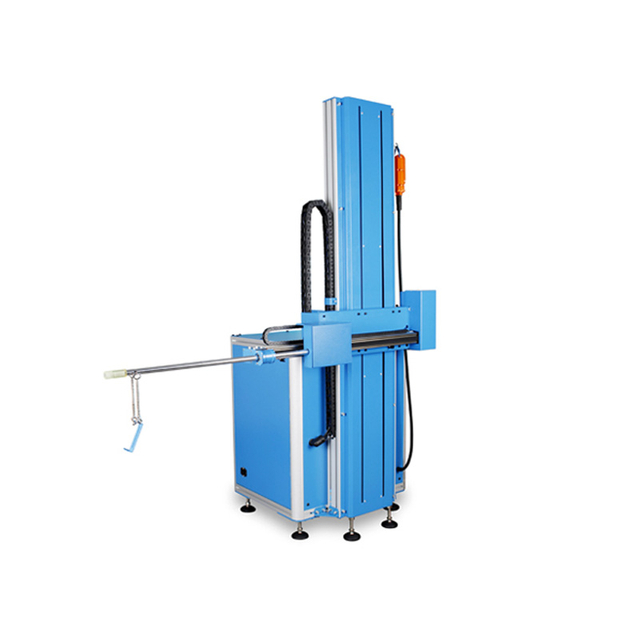

Hinged Doors Wear and Fatigue Tester

Brand: Great Win

Product Code: 9024800000

Model: GW-BFM-25

Brief:
1. Collaborative operation setting mode. That is, after confirming the start and end points of the test cycle through manual simulation operation, the equipment automatically memorizes and repeats the operation. 2.
2. the speed and gap stay or commutation buffer time of each segment can be manually corrected to make commutation more smooth and reliable. 3. motorized adjustment of horizontal loading height, self-locking holding position at any position.
3. Motorized adjustment of horizontal loading height, self-locking holding position at any position.

Add to Basket

More >>
Drawer / Silder Durability Tester

Brand: Great Win

Product Code: 9024800000

Model: GW-BFM-24

Brief:
1. Servomotor drive, supporting tensile force sensor, real-time monitoring of the friction resistance during the test. When the resistance exceeds the set value, the system outputs an alarm and stops the test. 2.
2. fully automatic simulation of the test starting point and end point, reversing direction with flexible buffer deceleration function, so that the reversal is smooth and reliable. 3. programmable sectional and speed loading. 3. the loading process can be programmed in segments and speeds.
4. motorized adjustment of horizontal loading height, any position self-locking holding position.

Add to Basket

More >>

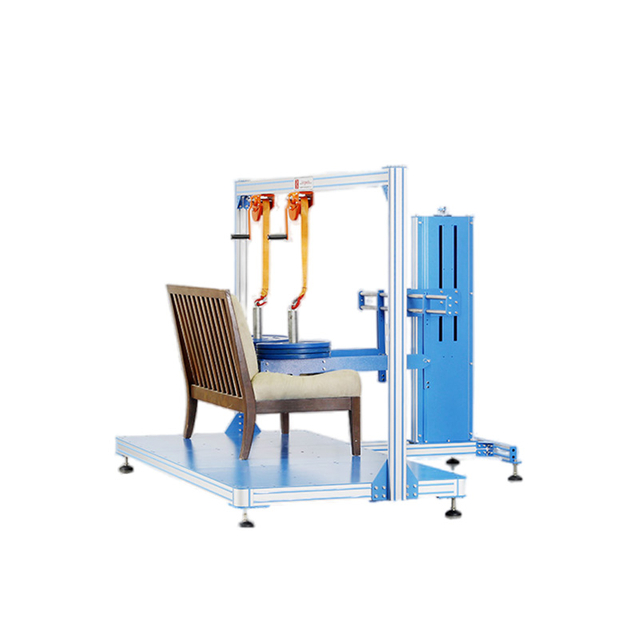

Stability Test Rig for Multiple Seating

Brand: Great Win

Product Code: 9024800000

Model: GW-BSE-29

Brief:
1. The structural base plate is made of aluminum plate with a thickness of 20 mm, formed by CNC machining, with all contact edges rounded to R12, and the surface treated with plastic spraying. (Thickness and chamfering are standard requirements)
2. The loading weights are equipped with handles for easy handling and combination operations.

Add to Basket
